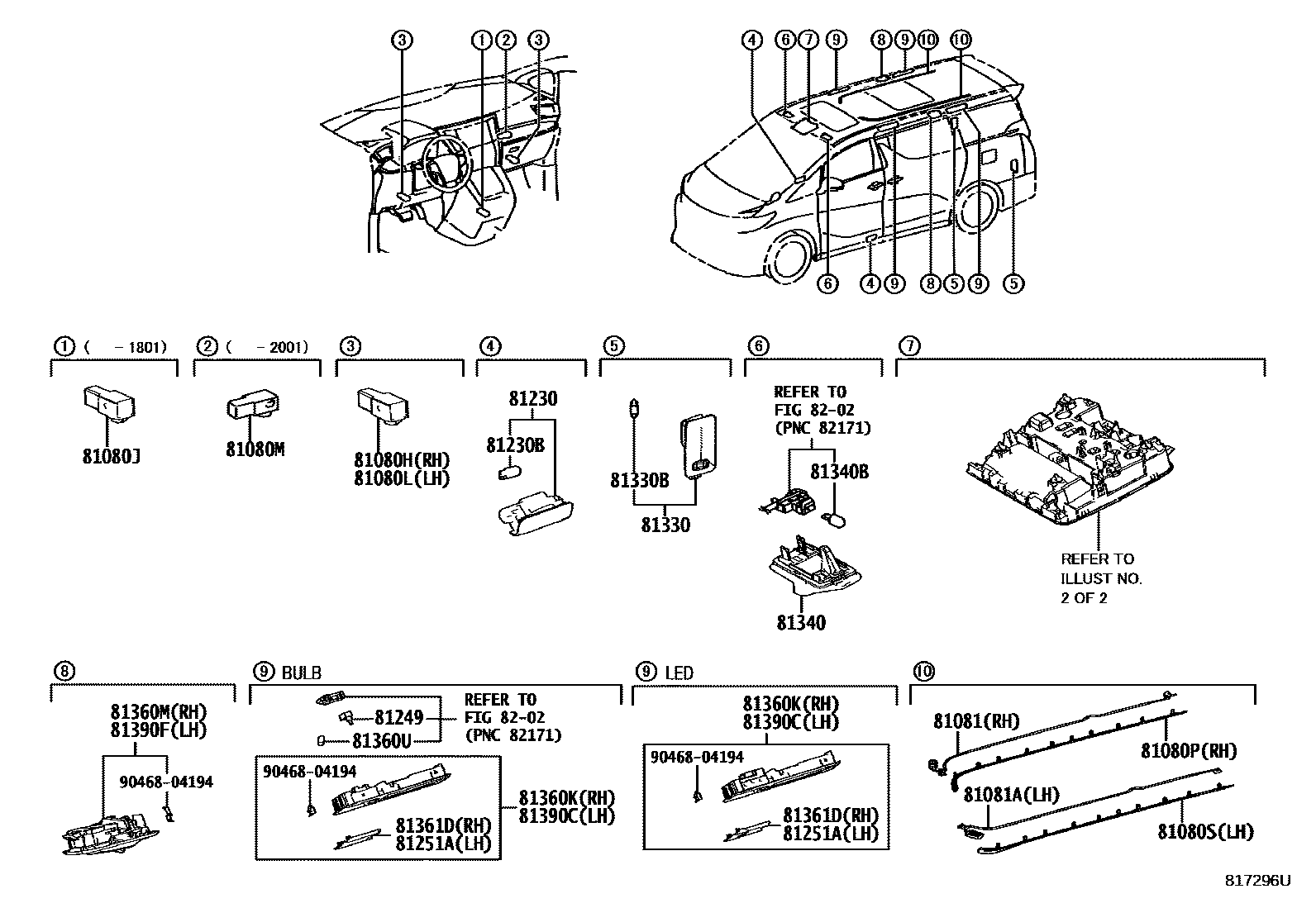

Toyota ALPHARD/VELLFIRE/HV — INTERIOR LAMP

0001 1 0002 1BULB 0003 1LED

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-48010iAGH30,AYH30,GGH30..L,Q,V¥860201501-201708

main81080-52050iAGH30,AYH30,GGH30..L,Q,V¥920201709-202001

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-48010iGGH30..Q¥860201501-201708

main81080-52050iGGH30..Q¥920201709-201801

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-48010iAGH30,AYH30,GGH30..L,Q,V¥860201501-201708

main81080-52050iAGH30,AYH30,GGH30..L,Q,R,S,V,Z¥920201709-202001

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-48010iAGH30,AYH30,GGH30¥860201501-201708

main81080-52050iAGH30,AYH30;GGH30..L,R,V¥920201709-202001

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-58230-A0iAYH30..ALPHD;AYH30..LHD..VFIRE..V;AGH30,GGH30..ALPHD..(G,L)201501-202001

FLAXEN,TRIM0#

main81080-58230-B0iAGH30,GGH30..VFIRE201501-202001

LT.GRAY,TRIM2#

main81080-58250-A0iGGH30..V201501-202001

MELLOW WHITE,TRIM0#,2#

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-58240-A0iAGH30,AYH30,GGH30..ALPHD..(G,L,Q)201501-202001

FLAXEN,TRIM0#

main81080-58240-B0iGGH30..Q201501-202001

LT.GRAY,TRIM2#

main81080-58260-A0iGGH30..V;AYH30..RHD..V201501-202001

MELLOW WHITE,TRIM0#,2#

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81081-58010iAGH30..G¥14,600201501-201802

sub81081-58011¥12,100

main81081-58011iAGH30..G¥12,100201803-202001

main81081-58020iAGH30..G¥12,200201501-202001

MOON ROOF-WITH(TWIN)

main81081-58020iGGH30..Q¥12,200201801-201907

81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2

main81081-58010iAGH30..G¥14,600201501-201802

sub81081-58011¥12,100

main81081-58011iAGH30..G¥12,100201803-202001

main81081-58030iGGH30..L,R,V;AGH30,AYH30..L,Q,S,V¥12,200201501-202001

MOON ROOF-WITH(TWIN)

main81081-58030iGGH30..Q¥12,200201801-201907

81230LAMP ASSY, COURTESY

main81230-30200iAGH30,AYH30,GGH30..L,Q,V¥990201501-202001

81230BBULB(FOR COURTESY LAMP)

main90981-12010iAGH30,AYH30,GGH30..L,Q,V¥110201501-202001

12V 5W

81249SWITCH, ROOM LAMP

main84532-58010iAGH30..G¥740201501-202001

81251ALENS, SPOT LAMP

main81361-58080iAGH30..G¥670201501-202001

main81361-58120iGGH30..Q¥670201501-202001

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-58010iAGH30,AYH30,GGH30¥460201501-202001

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iAGH30,AYH30,GGH30¥110201501-202001

12V 5W

81340LAMP ASSY, VANITY

main81340-30110iAGH30,AYH30,GGH30¥1,670201501-202001

81340BBULB (FOR VANITY LAMP)

main90981-11062iAGH30,AYH30,GGH30¥340201501-202001

12V 8W

81360KLAMP ASSY, SPOT, RH

main81360-58030-A0iAGH30..G202001

FLAXEN,TRIM0#,BULB TYPE

main81360-58030-A0iAGH30..G201501-202001

FLAXEN,TRIM0#

main81360-58040-A0iAYH30..Q,V;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V)201501-202001

FLAXEN,TRIM0#

main81360-58040-A0iAYH30..Q,V,Z;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V,Z)202001

FLAXEN,TRIM0#,LED TYPE

main81360-58040-B0iGGH30..Q201501-202001

LT.GRAY,TRIM2#

main81360-58040-B0iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,R,S)202001

LT.GRAY,TRIM2#,LED TYPE

main81360-58040-C0iAYH30,GGH30..V,Z202001

BLACK,TRIM2#,LED TYPE

main81360-58040-C0iAYH30,GGH30..V201501-202001

BLACK,TRIM2#

81360MLAMP ASSY, SPOT, NO.2 RH

main81360-58050-A0iAYH30,GGH30..V201501-202105

FLAXEN,TRIM0#

main81360-58050-C0iAYH30,GGH30..V201501-202105

BLACK,TRIM2#

main81360-58070-A0iAGH30,AYH30,GGH30..ALPHD..(L,Q)201801-202001

FLAXEN,TRIM0#

main81360-58070-B0iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201801-202001

LT.GRAY,TRIM2#

main81360-58070-C0iAYH30,GGH30..V,Z202105

BLACK,TRIM2#

81360UBULB, SPOT LAMP

main99132-12050iAGH30..G¥110201501-202001

81361DLENS, SPOT LAMP

main81361-58070iAGH30..G¥670201501-202001

main81361-58110iGGH30..L,R,V;AGH30,AYH30..L,Q,S,V¥670201501-202001

81390CLAMP ASSY, SPOT, LH

main81390-58030-A0iAGH30..G201501-202001

FLAXEN,TRIM0#

main81390-58030-A0iAGH30..G202001

FLAXEN,TRIM0#,BULB TYPE

main81390-58040-A0iAYH30..Q,V;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V)201501-202001

FLAXEN,TRIM0#

main81390-58040-A0iAYH30..Q,V,Z;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V,Z)202001

FLAXEN,TRIM0#,LED TYPE

main81390-58040-B0iAGH30,GGH30..VFIRE201501-202001

LT.GRAY,TRIM2#

main81390-58040-B0iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,R,S)202001

LT.GRAY,TRIM2#,LED TYPE

main81390-58040-C0iAYH30,GGH30..V,Z202001

BLACK,TRIM2#,LED TYPE

main81390-58040-C0iAYH30,GGH30..V201501-202001

BLACK,TRIM2#

81390FLAMP ASSY, SPOT, NO.2 LH

main81390-58050-A0iGGH30..V201501-202105

FLAXEN,TRIM0#

main81390-58050-C0iAYH30,GGH30..V201501-202105

BLACK,TRIM2#

main81390-58060-A0iAYH30..VFIRE..Z;AGH30,AYH30,GGH30..ALPHD..(L,Q,Z)201801-202001

FLAXEN,TRIM0#

main81390-58060-B0iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,R,S)201801-202001

LT.GRAY,TRIM2#

main81390-58060-C0iAYH30,GGH30..V,Z202105

BLACK,TRIM2#

8202

9046804194

main90468-04194¥180

24 parts on this diagram · 3 diagrams in section
