Toyota ALPHARD/VELLFIRE/HV — CONSOLE BOX & BRACKET

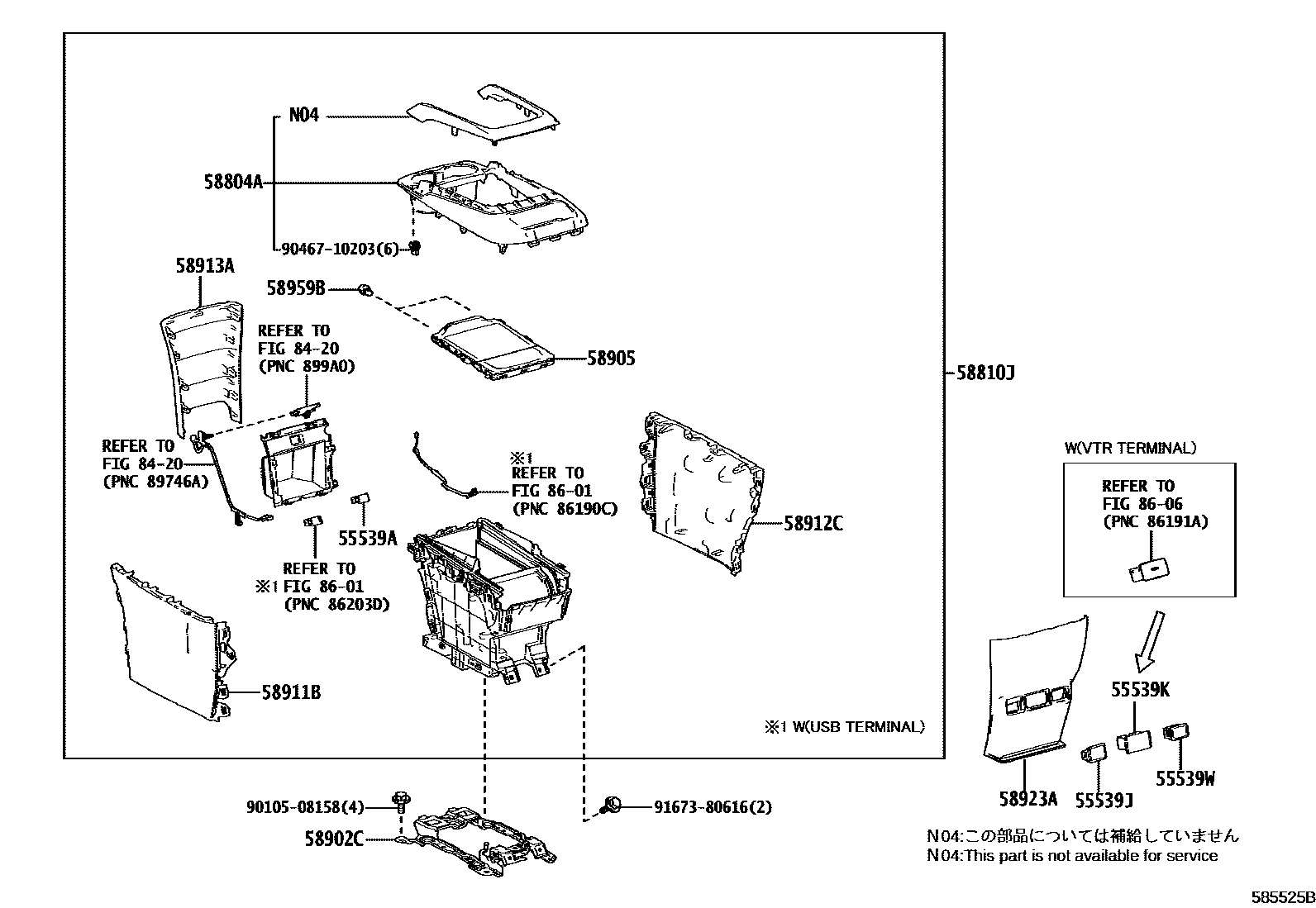

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55524-12010-C0i202001
BLACK,TRIM0#
main55539-58070-C0i201501-201801
BLACK,TRIM0#
main55539-58070-C0i201501-201801
PHILIPPINES SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER),BLACK,TRIM0#
main55539-58070-C0i201501-201801
BLACK,TRIM2#
main55539-58070-C0i201501-201801
BLACK
main55539-58070-C0i201501-201801
BLACK,TRIM0#,2#
main55539-58070-C1i201801-202001
BLACK,TRIM0#,2#
main55539-58070-C1i201801-201907
BLACK,TRIM2#
main55539-58070-C1i201801-201907
BLACK,TRIM0#,2#
main55539-58070-C1i201801-202001
BLACK
main55539-58070-C1i201801-202001
BLACK,TRIM0#
main55539-58070-C1i201801-202001
BLACK,TRIM2#
55539JCOVER, SPARE SWITCH HOLE
main55539-58120-C0i201501-201801
BLACK,TRIM0#,2#
sub55539-58120¥580
main55539-58120-C0i201501-201801
BLACK,TRIM2#
sub55539-58120¥580
main55539-58120-C0i201501-201801
BLACK,TRIM0#
sub55539-58120¥580
main55539-58120-C1i201801-202001
BLACK,TRIM0#,2#
sub55539-58120¥580
main55539-58120-C1i201801-202001
BLACK,TRIM0#
sub55539-58120¥580
main55539-58120-C1i201801-202001
BLACK,TRIM2#
sub55539-58120¥580
main55539-58120-C1i202001
BLACK,TRIM0#
sub55539-58120¥580
main55539-58120-C1i202001
BLACK,TRIM0#,2#
sub55539-58120¥580
main55539-58120-C1i202001
BLACK,TRIM2#
sub55539-58120¥580
55539KCOVER, SPARE SWITCH HOLE
main55539-58080-C0i201501-201801
BLACK,TRIM2#
main55539-58080-C0i201501-201801
BLACK,TRIM0#,2#
main55539-58080-C0i201501-201801
BLACK,TRIM0#
main55539-58080-C0i201501-201801
AUDIO-*DA(8INCH),8SPEAKER&TELEVISION & DVD PLAYER-*DOP BRACKET & PRE-INSTALLED WIRING,BLACK,TRIM0#
main55539-58080-C0i201501-201801
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)&TELEVISION & DVD PLAYER-*DOP BRACKET & PRE-INSTALLED WIRING,BLACK,TRIM0#
main55539-58080-C1i201801-202001
BLACK,TRIM0#,2#
main55539-58080-C1i201801-201907
BLACK,TRIM2#
main55539-58080-C1i201801-201907
BLACK,TRIM0#,2#
main55539-58080-C1i201801-202001
BLACK,TRIM0#
main55539-58080-C1i201801-202001
BLACK,TRIM2#
main55539-58080-C1i201801-202001
AUDIO-*DA(8INCH),8SPEAKER&TELEVISION & DVD PLAYER-*DOP BRACKET & PRE-INSTALLED WIRING,BLACK,TRIM0#
main55539-58080-C1i201801-202001
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)&TELEVISION & DVD PLAYER-*DOP BRACKET & PRE-INSTALLED WIRING,BLACK,TRIM0#
main55539-58140-C1i202001
BLACK,TRIM0#
main55539-58140-C1i202001
BLACK,TRIM2#
main55539-58140-C1i202001
BLACK,TRIM0#,2#
55539WCOVER, SPARE SWITCH HOLE
main55539-58100-C0i201501-201801
BLACK,TRIM2#
main55539-58100-C0i201501-201801
BLACK,TRIM0#,2#
main55539-58100-C0i201501-201801
BLACK,TRIM0#
main55539-58100-C0i201501-201801
AUDIO-*DA(8INCH),8SPEAKER&TELEVISION & DVD PLAYER-*DOP BRACKET & PRE-INSTALLED WIRING,BLACK,TRIM0#
main55539-58100-C0i201501-201801
AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER)&TELEVISION & DVD PLAYER-*DOP BRACKET & PRE-INSTALLED WIRING,BLACK,TRIM0#
main55539-58100-C0i201501-201801
TELEVISION & DVD PLAYER-9INCH REAR MONITOR,BLACK,TRIM0#,2#
main55539-58100-C0i201501-201801
TELEVISION & DVD PLAYER-9INCH REAR MONITOR,BLACK,TRIM0#
main55539-58100-C1i201801-201907
BLACK,TRIM0#,2#
main55539-58100-C1i201908-201912
BLACK,TRIM0#,2#
main55539-58100-C1i201801-202001
BLACK,TRIM0#
main55539-58100-C1i201801-202001
BLACK,TRIM0#,2#
main55539-58100-C1i201801-202001
BLACK,TRIM2#
main55539-58100-C1i201905-202001
BLACK,TRIM0#
main55539-58100-C1i201905-202001
BLACK,TRIM0#,2#
main55539-58100-C1i202001
BLACK,TRIM0#,2#
main55539-58100-C1i202001
BLACK,TRIM0#
main55539-58100-C1i202001
BLACK,TRIM2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-58130-C0i201501-201801
BLACK,TRIM0#
sub58804-58320¥9,000
main58804-58130-C0i201801-201912
BLACK,TRIM0#
sub58804-58320¥9,000
main58804-58140-C0i201501-201801
BLACK,TRIM2#
sub58804-58340¥19,900
main58804-58170i¥18,200201501-201801
main58804-58180i¥15,200202001
main58804-58180i¥15,200201801-202001
main58804-58190i¥18,200201501-201801
main58804-58200i¥15,200202001
main58804-58200i¥15,200201801-201907
main58804-58200i¥15,200201801-202001
main58804-58210i¥23,700201501-201801
main58804-58220i201501-201801
main58804-58230i¥19,700202001
main58804-58230i¥19,700201801-202001
main58804-58240i201501-201801
main58804-58250i201801-202001
main58804-58250i202001
main58804-58260i201801-202001
main58804-58260i202001
main58804-58320-C0i202001
BLACK,TRIM0#
main58804-58350i201905-202001
main58804-58350i202001
58810JBOX ASSY, CONSOLE
main58810-58150-C0i201501-201801
BLACK,TRIM0#
sub58810-58150¥57,500
main58810-58150-C1i201801-202001
BLACK,TRIM0#
sub58810-58150¥57,500
main58810-58290-C0i201501-201801
BLACK,TRIM2#
main58810-58310-C2i201501-201602
PHILIPPINES SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER),FLAXEN,TRIM0#
sub58810-58311¥78,400
main58810-58310-C2i201501-201602
FLAXEN,TRIM0#
sub58810-58311¥78,400
main58810-58310-C4i201501-201602
BLACK,TRIM2#
sub58810-58311¥78,400
main58810-58311-C2i201603-201801
PHILIPPINES SPEC&AUDIO-AUDIO LESS,8SPEAKER,WITH(COVER),FLAXEN,TRIM0#
main58810-58311-C2i201603-201801
FLAXEN,TRIM0#
main58810-58311-C4i201603-201801
BLACK,TRIM2#
main58810-58312-C5i202001
BLACK,TRIM0#
main58810-58312-C5i201907-202001
BLACK,TRIM0#
main58810-58312-C6i201907-202001
BLACK,TRIM2#
main58810-58320-C2i201501-201602
AUDIO-AVN(8INCH),17SPEKAER,JBL,FLAXEN,TRIM0#
sub58810-58321¥84,700
main58810-58320-C2i201501-201602
FLAXEN,TRIM0#
sub58810-58321¥84,700
main58810-58320-C4i201501-201602
BLACK,TRIM2#
sub58810-58321¥84,700
main58810-58320-C4i201501-201602
AUDIO-AVN(8INCH),17SPEKAER,JBL,BLACK,TRIM2#
sub58810-58321¥84,700
main58810-58321-C2i201603-201801
FLAXEN,TRIM0#
main58810-58321-C2i201603-201801
AUDIO-AVN(8INCH),17SPEKAER,JBL,FLAXEN,TRIM0#
main58810-58321-C4i201603-201801
BLACK,TRIM2#
main58810-58321-C4i201603-201801
AUDIO-AVN(8INCH),17SPEKAER,JBL,BLACK,TRIM2#
main58810-58322-C5i201801-202001
BLACK,TRIM0#
main58810-58322-C6i201801-202001
BLACK,TRIM2#
main58810-58370-C0i201801-201907
BLACK,TRIM0#
main58810-58370-C0i202001
BLACK,TRIM0#
main58810-58370-C0i201801-202001
BLACK,TRIM0#
main58810-58370-C1i201801-202001
BLACK,TRIM2#
main58810-58370-C1i202001
BLACK,TRIM2#
main58810-58370-C1i201801-201907
BLACK,TRIM2#
main58810-58390-C0i201908-201912
BLACK,TRIM0#
main58810-58390-C1i201908-201912
BLACK,TRIM2#
main58810-58520-C0i202001
BLACK,TRIM0#
main58810-58550-C0i202001
BLACK,TRIM0#
main58810-58550-C0i202001
AUDIO-EMV 10.5INCH 17SP JBL,BLACK,TRIM0#
main58810-58550-C1i202001
BLACK,TRIM2#
main58810-58570-C0i202001
AUDIO-EMV 10.5INCH 17SP JBL,BLACK,TRIM0#
main58810-58570-C0i202001
BLACK,TRIM0#
main58810-58570-C1i202001
BLACK,TRIM2#
main58810-58570-C1i202001
AUDIO-EMV 10.5INCH 17SP JBL,BLACK,TRIM2#
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
main58902-58050i¥6,400201501-201801
main58902-58051i¥6,600201801-202001
main58902-58051i¥6,600202001
main58902-58060i¥11,100201501-201801
main58902-58060i¥11,100201801-202001
main58902-58060i¥11,100202001
main58902-58060i¥11,100201801-201907
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-58130i¥8,900201501-201801
main58905-58130i¥8,900201801-202001
main58905-58150i¥15,300201501-201801
main58905-58180i¥7,400202001
58911BPANEL, BOX, NO.1
main58911-58060-C0i201501-201801
BLACK,TRIM0#
main58911-58060-C0i201501-201801
BLACK,TRIM2#
main58911-58060-C0i201801-202001
BLACK,TRIM0#
main58911-58060-C0i202001
BLACK,TRIM0#
main58911-58070-C0i201501-201801
BLACK,TRIM2#
main58911-58070-C0i201501-201801
BLACK,TRIM0#,2#
main58911-58070-C0i201501-201801
BLACK,TRIM0#
main58911-58070-C0i201801-201907
BLACK,TRIM0#,2#
main58911-58070-C0i201908-201912
BLACK,TRIM0#,2#
main58911-58070-C0i201801-202001
BLACK,TRIM0#
main58911-58070-C0i201801-202001
BLACK,TRIM0#,2#
main58911-58070-C0i201801-202001
BLACK,TRIM2#
main58911-58070-C0i202001
BLACK,TRIM0#
main58911-58070-C0i202001
BLACK,TRIM0#,2#
main58911-58070-C0i202001
BLACK,TRIM2#
58912CPANEL, BOX SIDE, NO.2
main58912-58050-C0i201501-201801
BLACK,TRIM2#
main58912-58050-C0i201501-201801
BLACK,TRIM0#
main58912-58050-C0i201801-202001
BLACK,TRIM0#
main58912-58050-C0i202001
BLACK,TRIM0#
58913APANEL, BOX, NO.3
main58913-58030-C0i201501-201801
BLACK,TRIM2#
main58913-58030-C0i201801-202001
BLACK,TRIM0#
main58913-58030-C0i202001
BLACK,TRIM0#
main58913-58030-C0i201501-201801
BLACK,TRIM0#
58923APANEL, CONSOLE REAR END
main58923-58160-C0i201501-201801
BLACK,TRIM2#
main58923-58160-C0i201501-201801
BLACK,TRIM0#
main58923-58160-C0i201801-202001
BLACK,TRIM0#
main58923-58160-C0i202001
BLACK,TRIM0#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-35010i¥100201801-202001
main58959-35010i¥100201501-201801
main58959-35010i¥100202001
main58959-60060i¥100202001
main58959-60060i¥100201801-202001
main58959-60060i¥100201501-201801
main58959-60060i¥100201801-201907
8420
8601
8606
9010508158
main90105-08158¥100
9046710203
main90467-10203¥60
9167380616
main91673-80616¥60

19 parts on this diagram · 7 diagrams in section
