Toyota ALPHARD/VELLFIRE/HV — BATTERY & BATTERY CABLE

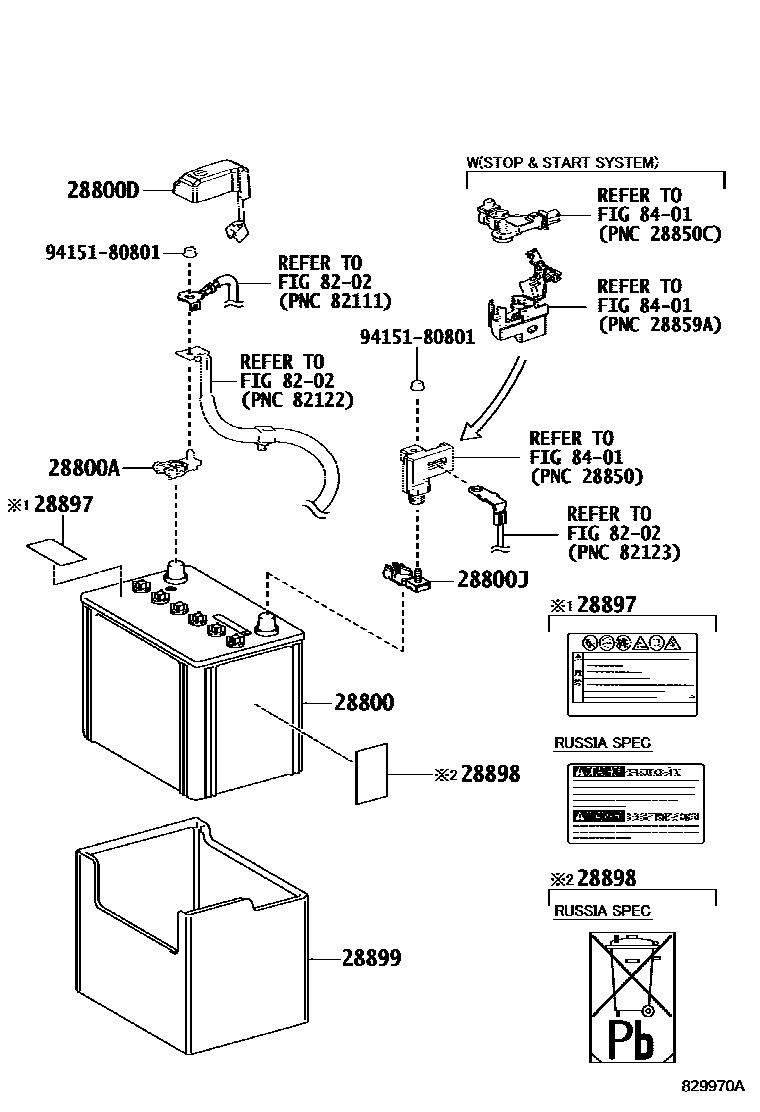

0001 1 0002 1 0003 112V BATTERY 0004 1HV BATTERY(1/2) 0005 1HV BATTERY(2/2)

28800BATTERY

main28800-31490i2ARFE,2GR#..AGH30,GGH30202103-202303

S-95,PANASONIC

sub28800-31491

main28800-31491i2ARFE,2GR#..AGH30,GGH30202304

S-95,PANASONIC

main28800-36110i2GRFE..GGH30..RHD201501-201801

S-95,GS YUASA

sub28800-36111

main28800-36140i2ARFE..AGH30201501-201506

S-95,PANASONIC

sub28800-36141¥0

main28800-36141i2ARFE,2GR#..AGH30,GGH30¥0201507-202102

S-95,PANASONIC

sub28800-36142

main28800-37110i2ARFXE..AYH30¥0201801-202303

LN2,PANASONIC

sub28800-37111

main28800-37111i2ARFXE..AYH30202304

LN2,PANASONIC

main28800-37120i2ARFXE..AYH30201501-202303

LN2,GS YUASA

sub28800-37121

main28800-37121i2ARFXE..AYH30202304

LN2,GS YUASA

main28800-38080i2GRFE..GGH30..RHD¥50,300201501-201801

80D26L

sub28800-38081

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2ARFE,2GR#..AGH30,GGH30..G,L,R,S,V¥850201501-202001

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-28280i2ARFE,2GRFE..AGH30,GGH30¥600201501-201801

main82821-58120i2GRFKS..GGH30..Q¥650201801-202001

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i2ARFXE,2GRFE..AYH30,GGH30¥850201501-202001

28897PLATE, BATTERY CAUTION

main28897-38060i2ARFXE..AYH30..LHD¥140201905-202001

main28897-50030i2GRFE..GGH30..LHD..V¥300201501-201905

TAIWAN SPEC

sub28897-38060¥140

main28897-50030i2GRFE..GGH30..LHD..V¥300201501-201905

PHILIPPINES SPEC

sub28897-38060¥140

main28897-50030i2GRFKS..GGH30..LHD¥300201801-201905

VIETNAM SPEC

sub28897-38060¥140

28898PLATE, BATTERY

main28898-46020¥110

28899INSULATOR, BATTERY

main28877-36010i2ARFXE..AYH30¥510201501-202001

main28899-36080i2ARFE,2GR#..AGH30,GGH30¥1,190201501-202104

sub28899-V2030¥1,190

main28899-V2030i2ARFE,2GR#..AGH30,GGH30¥1,190202105

8202

8401

9415180801

main94151-80801¥80

10 parts on this diagram · 5 diagrams in section
