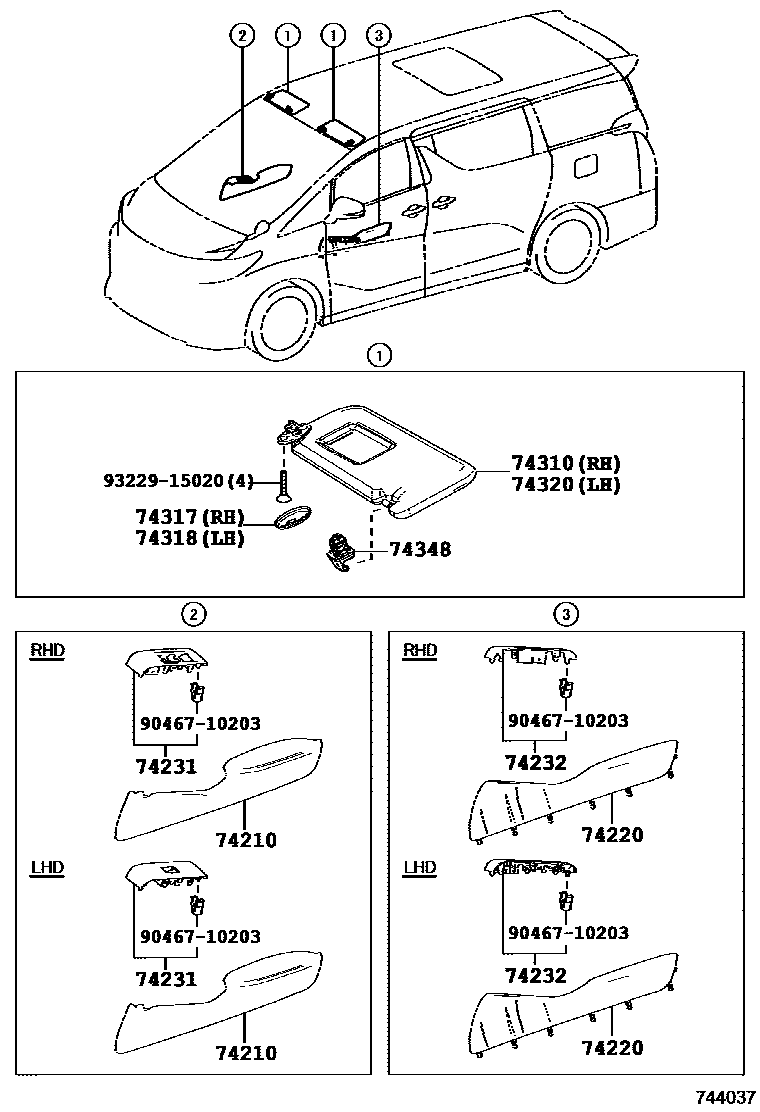

Toyota ALPHARD/VELLFIRE/HV — ARMREST & VISOR

0001 1ARMREST & VISOR 0002 1ASSIST GLIP

74210ARMREST ASSY, FRONT, RH

main74210-58010-A0iAGH30..G201501-202001

FLAXEN,TRIM0#

main74210-58010-C0iGGH30..Q,V;AGH30..VFIRE201501-201801

BLACK,TRIM2#

main74210-58020-A1iAYH30..Q,V;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V)201801-202001

FLAXEN,TRIM0#

main74210-58020-C1iAYH30,GGH30..R,V;AGH30,AYH30..VFIRE..(L,S)201801-202001

BLACK,TRIM2#

74220ARMREST ASSY, FRONT, LH

main74220-58010-A0iAGH30..G201501-202001

FLAXEN,TRIM0#

main74220-58010-C0iGGH30..Q,V;AGH30..VFIRE201501-201801

BLACK,TRIM2#

main74220-58020-A1iAYH30..Q,V;AYH30..ALPHD..L;AGH30,GGH30..ALPHD..(L,V)201801-202001

FLAXEN,TRIM0#

main74220-58020-C1iAYH30..V,Z;GGH30..6FC;GGH30..8FC..(V,Z);AGH30,AYH30..VFIRE..(L,R,S)201801-202001

BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-58330iAGH30..G¥1,740201501-202001

main74231-58340iAGH30,AYH30,GGH30..RHD..(L,Q,R,S,V,Z)¥1,740201501-202001

MOON ROOF-WITH(TWIN)

main74231-58340iGGH30..Q¥1,740201801-201907

main74231-58350iAYH30,GGH30..LHD201501-202001

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-58190iAGH30,AYH30,GGH30..RHD¥1,850201501-202001

main74232-58200iGGH30..LHD201501-202001

74310VISOR ASSY, RH

main74310-58130-A2iAGH30,AYH30,GGH30..RHD..ALPHD201501-201606

FLAXEN,TRIM0#

sub74310-58131¥5,400

main74310-58130-B1iAGH30,GGH30..VFIRE201501-201606

LT.GRAY,TRIM2#

sub74310-58131¥5,400

main74310-58130-C2iGGH30..RHD..V201501-201606

BLACK,TRIM2#

sub74310-58131¥5,400

main74310-58131iGGH30..Q¥5,400201807-201907

main74310-58131-A2iAGH30,AYH30,GGH30..RHD..ALPHD201607-201807

FLAXEN,TRIM0#

sub74310-58131¥5,400

main74310-58131-A3iAYH30..RHD;AGH30,GGH30..RHD..ALPHD201807-202001

FLAXEN,TRIM0#

sub74310-58131¥5,400

main74310-58131-B1iAGH30,GGH30..VFIRE201607-201807

LT.GRAY,TRIM2#

sub74310-58131¥5,400

main74310-58131-B2iAGH30,GGH30..VFIRE..(L,R,S)201807-202001

LT.GRAY,TRIM2#

sub74310-58131¥5,400

main74310-58131-C2iGGH30..RHD..V201607-201807

BLACK,TRIM2#

sub74310-58131¥5,400

main74310-58131-C3iAYH30,GGH30..RHD..(V,Z)201807-202001

BLACK,TRIM2#

sub74310-58131¥5,400

main74310-58140-A2iGGH30..LHD201505-201511

FLAXEN,TRIM0#

sub74310-58141

main74310-58140-C2iGGH30..LHD..V201505-201511

BLACK,TRIM2#

sub74310-58141

main74310-58141iGGH30..LHD201807-201905

main74310-58141-A2iGGH30..LHD201512-201807

FLAXEN,TRIM0#

sub74310-58141

main74310-58141-A3iAYH30..ALPHD..L;AYH30..LHD..(V,Z)201905-202001

FLAXEN,TRIM0#

sub74310-58141

main74310-58141-B1iAYH30..VFIRE..L201905-202001

LT.GRAY,TRIM2#

sub74310-58141

main74310-58141-C2iGGH30..LHD..V201512-201807

BLACK,TRIM2#

sub74310-58141

main74310-58141-C3iAYH30..LHD..(V,Z)201905-202001

BLACK,TRIM2#

sub74310-58141

main74310-58160-A2iGGH30..LHD..V201905-202001

FLAXEN,TRIM0#

sub74310-58160

main74310-58160-C3iGGH30..LHD..V202105

BLACK,TRIM2#

sub74310-58160

main74310-58180-A1iGGH30..LHD..V201905-202105

FLAXEN,TRIM0#

sub74310-58180

main74310-58180-C1iGGH30..LHD..V201905-202105

BLACK,TRIM2#

sub74310-58180

74317COVER, VISOR BRACKET, RH

main74317-60020-A7iAYH30..Q,V,Z;AYH30..ALPHD..L;AGH30,GGH30..ALPHD201501-202001

FLAXEN,TRIM0#

main74317-60020-B1iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,R,S)201501-202001

LT.GRAY,TRIM2#

main74317-60020-C0iGGH30..RHD..V201501-201610

BLACK,TRIM2#

main74317-60020-C2iGGH30..LHD..V201610-202001

BLACK,TRIM2#

74318COVER, VISOR BRACKET, LH

main74317-60020-A7iAYH30..Q,V,Z;AYH30..ALPHD..L;AGH30,GGH30..ALPHD201501-202001

FLAXEN,TRIM0#

main74317-60020-B1iGGH30..6FC..(L,R);AGH30,AYH30..VFIRE..(L,R,S)201501-202001

LT.GRAY,TRIM2#

main74317-60020-C0iGGH30..LHD..V201501-201610

BLACK,TRIM2#

main74317-60020-C2iAYH30..V;GGH30..RHD..V201610-202001

BLACK,TRIM2#

74320VISOR ASSY, LH

main74320-58080-A2iAGH30,AYH30,GGH30..RHD..ALPHD201501-201606

FLAXEN,TRIM0#

sub74320-58081¥5,400

main74320-58080-B1iAGH30,GGH30..VFIRE201501-201606

LT.GRAY,TRIM2#

sub74320-58081¥5,400

main74320-58080-C2iGGH30..RHD..V201501-201606

BLACK,TRIM2#

sub74320-58081¥5,400

main74320-58081iGGH30..Q¥5,400201807-201907

main74320-58081-A2iAGH30,AYH30,GGH30..RHD..ALPHD201607-201807

FLAXEN,TRIM0#

sub74320-58081¥5,400

main74320-58081-A3iAYH30..RHD;AGH30,GGH30..RHD..ALPHD201807-202001

FLAXEN,TRIM0#

sub74320-58081¥5,400

main74320-58081-B1iAGH30,GGH30..VFIRE201607-201807

LT.GRAY,TRIM2#

sub74320-58081¥5,400

main74320-58081-B2iAGH30..VFIRE;GGH30..6FC..(L,R)201807-202001

LT.GRAY,TRIM2#

sub74320-58081¥5,400

main74320-58081-C2iGGH30..RHD..V201607-201807

BLACK,TRIM2#

sub74320-58081¥5,400

main74320-58081-C3iAYH30,GGH30..RHD..V201807-202001

BLACK,TRIM2#

sub74320-58081¥5,400

main74320-58100-A2iGGH30..LHD201505-201511

FLAXEN,TRIM0#

sub74320-58110

main74320-58100-A3iAYH30..LHD..V;AYH30..ALPHD..L202001

FLAXEN,TRIM0#

sub74320-58110

main74320-58100-B0iAYH30..VFIRE..L202010

LT.GRAY,TRIM2#

sub74320-58110

main74320-58100-C2iGGH30..LHD..V201505-201511

BLACK,TRIM2#

sub74320-58110

main74320-58100-C3iAYH30..Z;GGH30..LHD..V202001

BLACK,TRIM2#

sub74320-58110

main74320-58110iGGH30..LHD201807-201905

sub74320-58100

main74320-58110-A0iGGH30..LHD201512-201912

FLAXEN,TRIM0#

sub74320-58110

sub74320-58100

main74320-58110-A1iAYH30..LHD..V;AYH30..ALPHD..L201905-202009

FLAXEN,TRIM0#

sub74320-58110

sub74320-58100

main74320-58110-B1iAYH30..VFIRE..L201905-202009

LT.GRAY,TRIM2#

sub74320-58110

sub74320-58100

main74320-58110-C0iGGH30..LHD..V201512-201912

BLACK,TRIM2#

sub74320-58110

sub74320-58100

main74320-58110-C1iAYH30..LHD..V201905-202009

BLACK,TRIM2#

sub74320-58110

sub74320-58100

74348HOLDER, VISOR

main74348-33040-A7iGGH30..LHD201501-202001

FLAXEN,TRIM0#

sub74348-33040¥470

main74348-33040-B1iAGH30,AYH30,GGH30..VFIRE..(L,R,S)201501-202001

LT.GRAY,TRIM2#

sub74348-33040¥470

main74348-33040-C0iGGH30..RHD..V201501-201610

BLACK,TRIM2#

sub74348-33040¥470

main74348-33040-C2iGGH30..LHD..V201610-202001

BLACK,TRIM2#

sub74348-33040¥470

9046710203

main90467-10203¥60

9322915020

main93229-15020¥70

11 parts on this diagram · 2 diagrams in section
