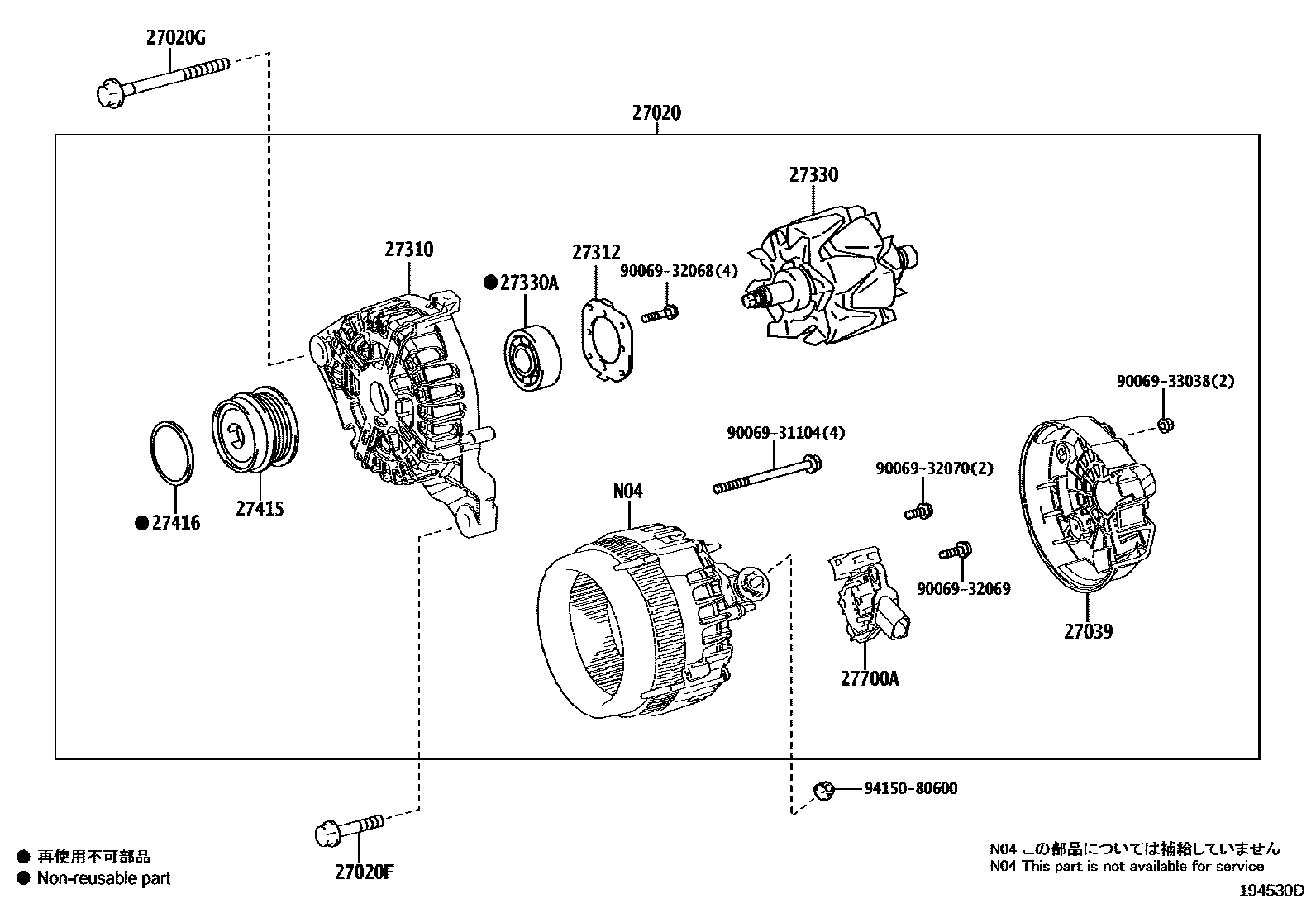

Toyota ALPHARD/VELLFIRE/HV — ALTERNATOR

0001 112V 150A 0002 112V 150A 0003 112V 180A

27020ALTERNATOR ASSY

main27060-0V280i2ARFE..AGH30¥112,000201501-202206

12V 150A

sub27060-0V281¥112,000

main27060-0V281i2ARFE..AGH30¥112,000202207

12V 150A

main27060-31102i2GRFE..GGH30..RHD¥112,000201607-202001

12V 150A

main27060-31331i2GRFE..GGH30..RHD¥134,000201501-201801

12V 150A

main27060-31410i2GRFKS..GGH30..ALPHD¥125,000201801-202001

12V 180A

27020FBOLT, NO.1(FOR ALTERNATOR)

main90105-10591i2ARFE,2GRFKS..AGH30,GGH30..G,L,S,V¥120201801-202001

main91552-81040i2GRFE..GGH30¥120201501-202001

main91552-81045i2ARFE..AGH30¥120201501-201801

27020GBOLT, NO.2(FOR ALTERNATOR)

main90105-10562i2ARFE..AGH30¥240201501-202001

main91552-81070i2GRFE..GGH30¥160201501-202001

main91552-81095i2GRFKS..GGH30..ALPHD¥190201801-202001

27039COVER, ALTERNATOR REAR END

main27039-0V280i2ARFE..AGH30¥1,090201501-202001

main27039-31390i2GRFE..GGH30201501-202001

main27039-38150i2GRFKS..GGH30201801-202001

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0V280i2ARFE..AGH30¥18,500201501-202001

main27310-31290i2GRFE..GGH30201501-202001

main27310-31630i2GRFKS..GGH30..Q201801-202001

27312PLATE, RETAINER

main27312-0V280i2ARFE..AGH30¥340201501-202001

main27312-42010i2GRFKS..GGH30..ALPHD201801-202001

main27312-72100i2GRFE..GGH30¥0201501-202001

27330ROTOR ASSY, ALTERNATOR

main27330-0V280i2ARFE..AGH30¥16,200201501-202001

main27330-31630i2GRFKS..GGH30201801-202001

main27330-58460i2GRFE..GGH30201501-202001

27330ABEARING(FOR ALTERNATOR ROTOR)

main90069-40009i2ARFE..AGH30¥810201501-202001

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P030i2GRFKS..GGH30..Q¥6,200201801-202001

main27415-0W131i2GRFE..GGH30¥5,500201501-202001

main27415-0W150i2ARFE..AGH30¥6,200201501-202206

sub27415-36030¥6,200

sub27416-36010¥380

main27415-36030i2ARFE..AGH30¥6,200202207

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2ARFE,2GRFE..AGH30,GGH30¥340201501-202206

main27416-36010i2ARFE..AGH30¥380202207

27700AREGULATOR ASSY, GENERATOR

main27700-0V090i2ARFE..AGH30¥13,500201501-202001

9006931104

main90069-31104¥220

9006932068

main90069-32068¥190

9006932069

main90069-32069¥190

9006932070

main90069-32070¥190

9006933038

main90069-33038¥110

9415080600

main94150-80600¥60

17 parts on this diagram · 3 diagrams in section
