Toyota ALPHARD/VELLFIRE/HV — ACCELERATOR LINK

0001 1 0002 1

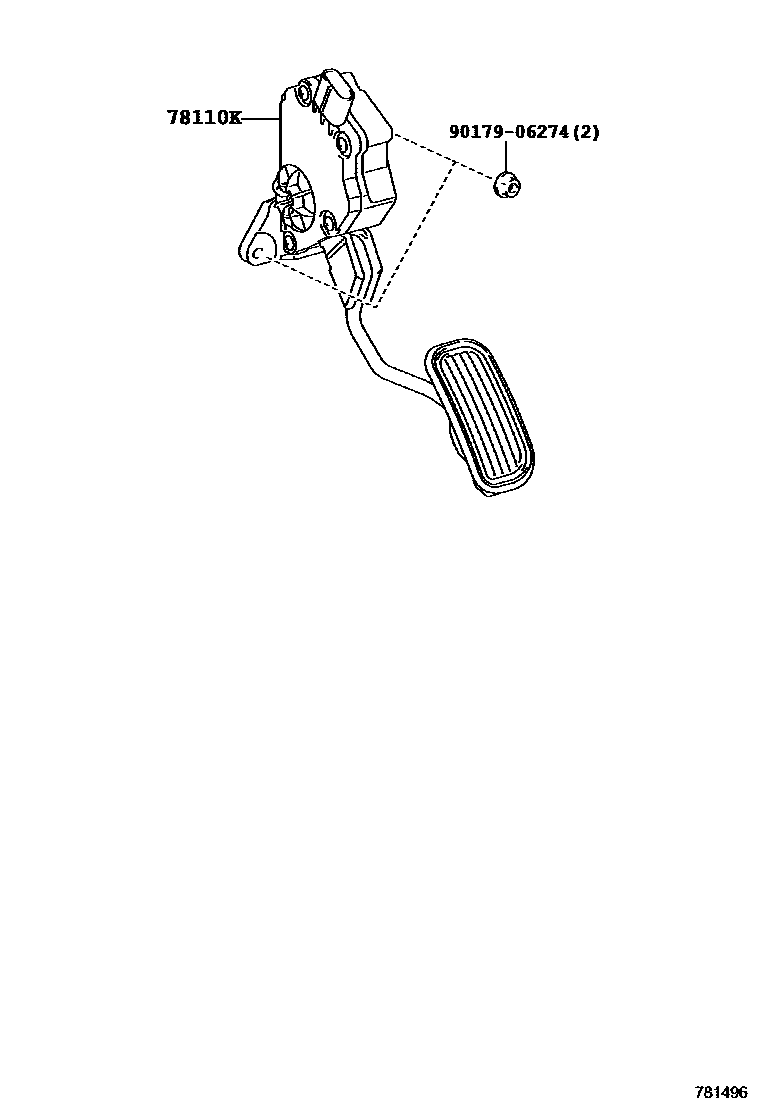

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-58050iAGH30,AYH30,GGH30..RHD¥10,900201501-201602

sub78110-58051¥7,600

main78110-58051iAGH30,AYH30,GGH30..RHD¥7,600201603-202001

main78110-58060iGGH30..LHD201501-201602

sub78110-58061

main78110-58061iAYH30,GGH30..LHD201603-202001

9017906274

main90179-06274¥70

2 parts on this diagram · 2 diagrams in section
