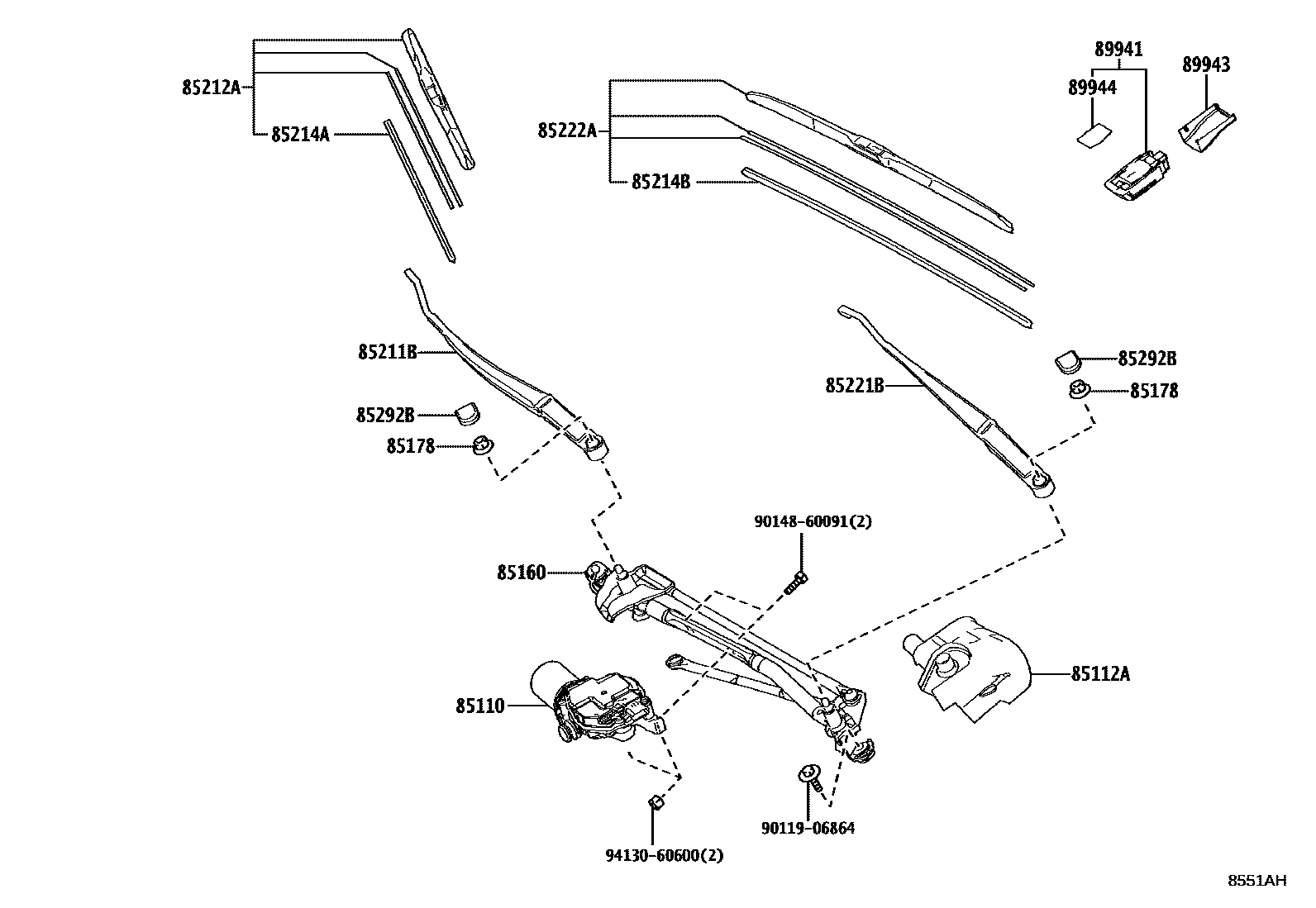

Toyota ALPHARD HEV/PHEV — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30770iAZSH3#202405

85112ACOVER, WINDSHIELD WIPER SHAFT, NO.1

main85112-30290iAZSH3#202405

85160LINK ASSY, WINDSHIELD WIPER

main85150-30820iAZSH3#202405

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iAZSH3#¥80202405

85211BARM, FRONT WIPER, RH

main85211-30870iAZSH3#202405

85212ABLADE, FR WIPER, RH

main85212-33260iAZSH3#202405

85214ARUBBER, WIPER, RH

main85214-33180iAZSH3#¥800202405

85214BRUBBER, WIPER, LH

main85214-52110iAZSH3#¥900202405

85221BARM, FRONT WIPER, LH

main85221-30750iAZSH3#202405

85222ABLADE, FR WIPER, LH

main85222-30610iAZSH3#202405

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iAZSH3#¥250202405

89941SENSOR, RAIN

main89941-78010iAZSH37¥12,500202409

main89941-78020iAZSH36..G¥12,500202405

89943COVER, RAIN SENSOR

main89943-12040iAZSH3#..G¥440202405

89944TAPE, RAIN SENSOR

main89944-42020iAZSH3#..G¥170202405

9011906864

main90119-06864¥80

9014860091

main90148-60091¥0

9413060600

main94130-60600¥80

17 parts on this diagram · 1 diagram in section
