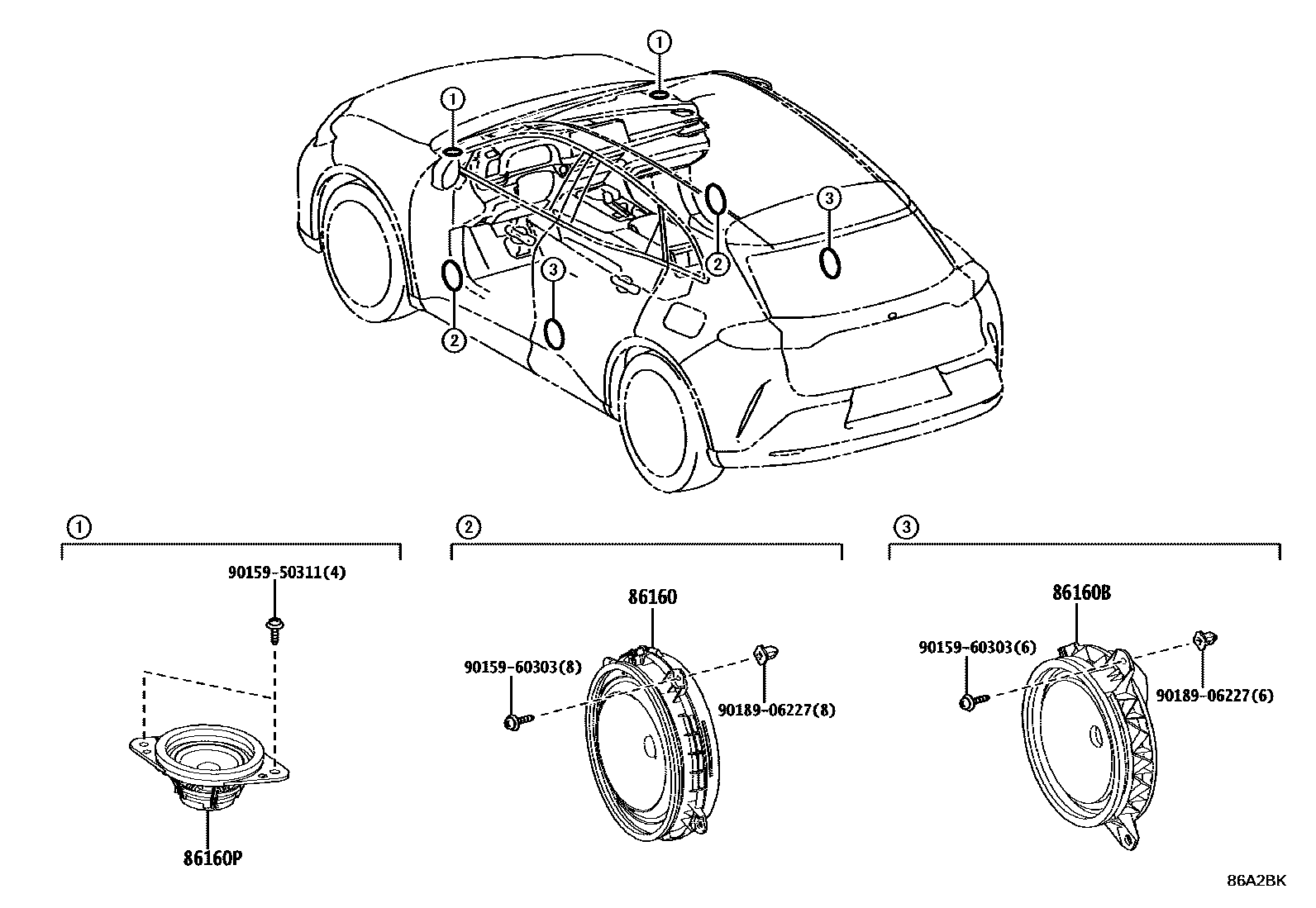

Toyota ALPHARD HEV/PHEV — SPEAKER

0001 16 SPEAKER 0002 111 SPEAKER 0003 1EQUALIZER

86160SPEAKER ASSY, FRONT NO.1

main86160-30F70iAZSH36..M¥6,300202405

main86160-33A10iAZSH3#..G¥23,500202405

86160BSPEAKER ASSY, REAR

main86160-30E00iAZSH36..M¥6,300202405

main86160-62020iAZSH3#..G¥20,000202405

86160PSPEAKER ASSY, FRONT NO.2

main86160-28830iAZSH36..M¥4,060202405

main86160-42200iAZSH3#..G¥14,200202405

9015950311

main90159-50311¥70

9015960303

main90159-60303¥70

9018906227

main90189-06227¥70

6 parts on this diagram · 3 diagrams in section
