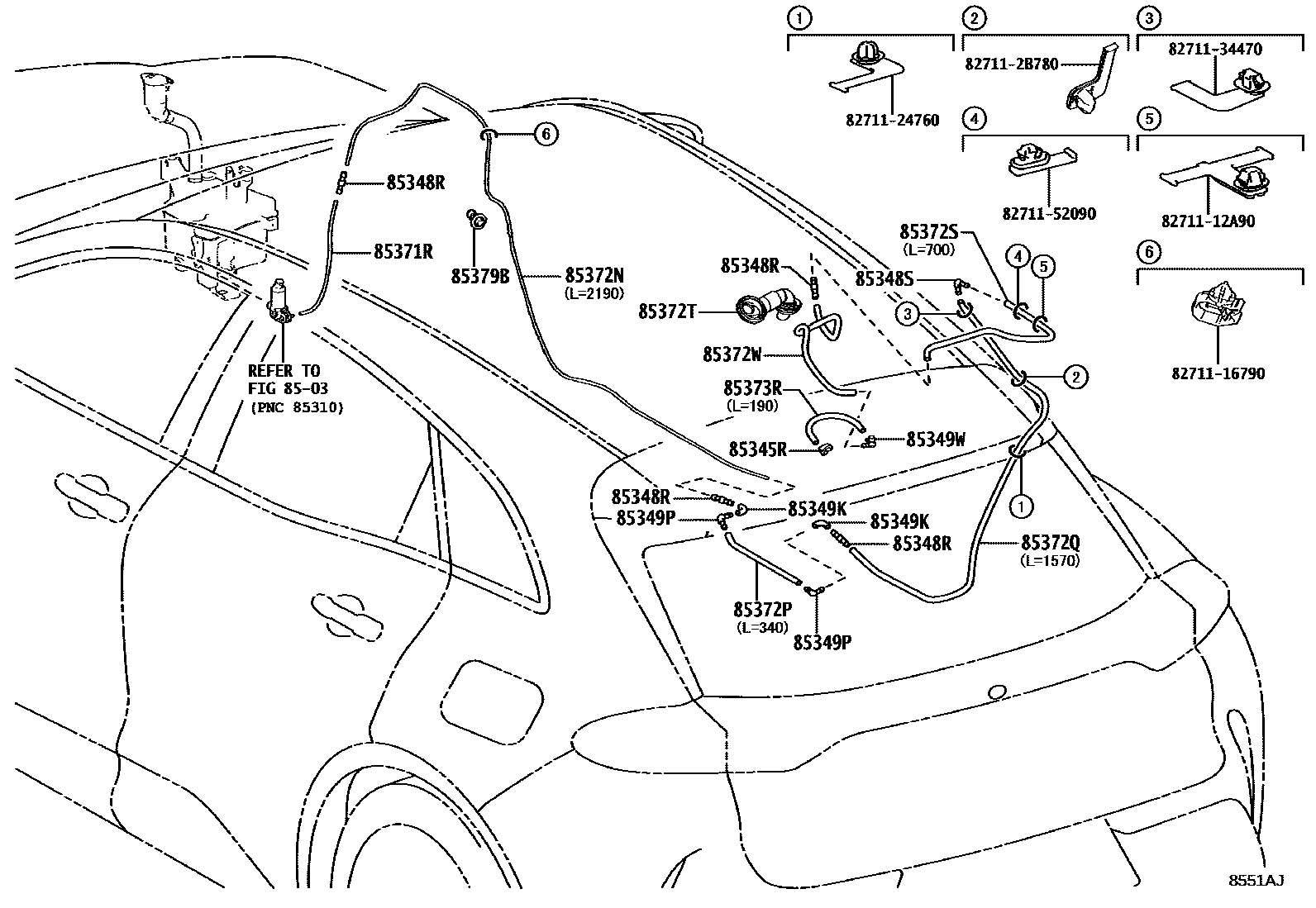

Toyota ALPHARD HEV/PHEV — REAR WASHER

0001 1W/O(PANORAMIC VIEW MONITOR) 0002 1W(PANORAMIC VIEW MONITOR)

8503

85345RNOZZLE, REAR WASHER

main85391-48100iAZSH3#202405

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iAZSH3#202405

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iAZSH3#202405

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-14481iAZSH3#¥0202405

85349PJOINT, REAR WASHER ELBOW, NO.3

main85317-12230iAZSH3#202405

85349WJOINT, REAR WASHER ELBOW, NO.4

main85375-60290iAZSH36..M¥140202405

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iAZSH3#202405

L=1450(*H,L=320)

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62264iAZSH3#202405

L=2190

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-62263iAZSH3#202405

L=340

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-62082iAZSH3#202405

L=1570

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-62263iAZSH3#202405

L=710

85372TGROMMET, WASHER

main82819-78040iAZSH36..M202405

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080iAZSH36..M202405

L=1450(*H,L=420)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-62263iAZSH3#202405

L=190

85379BGROMMET, WASHER, A

main85379-12850iAZSH3#¥0202405

8271112A90WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12A90¥140

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790¥120

8271124760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24760¥170

827112B780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B780¥230

8271134470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34470¥110

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090¥80

22 parts on this diagram · 2 diagrams in section
