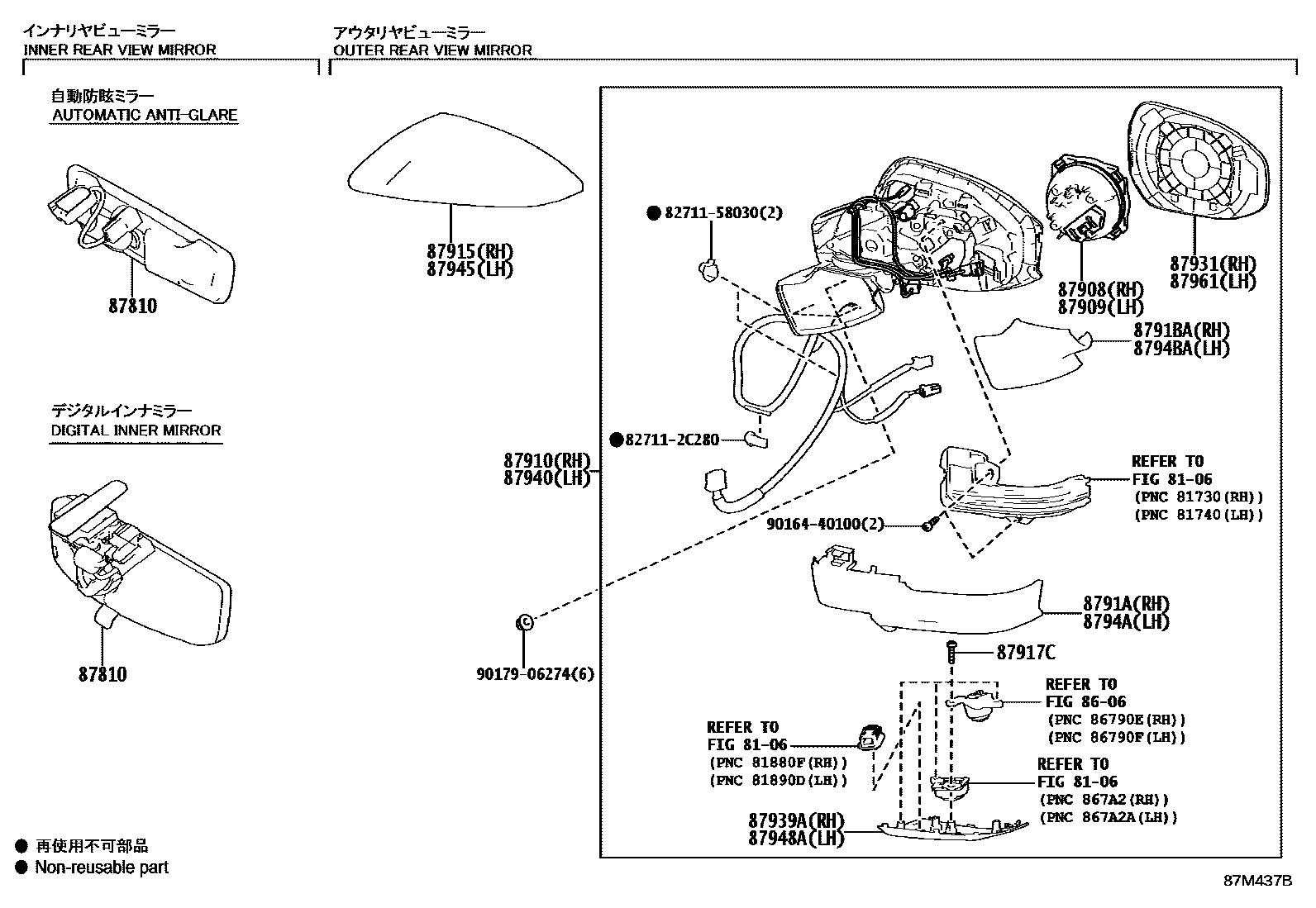

Toyota ALPHARD HEV/PHEV — MIRROR

8106

8606

87810MIRROR ASSY, INNER REAR VIEW

main87840-0W360i¥56,800202405

main87840-0W460i¥19,000202405

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

87908ACTUATOR ASSY, OUTER MIRROR, RH

main87908-30L00i202405

87909ACTUATOR ASSY, OUTER MIRROR, LH

main87909-30M10i202405

main87909-30M20i202405

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-30L00i202405

NO PAINT REQ.

main87910-30L10i202405

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-30060-C0i202405

BLACK,090 ,1M2 ,202 ,2XW ,2XZ ,2ZQ ,2ZR ,2ZS ,3U9 ,4Y6 ,5C5 ,M24 ,M25 ,M26 ,M27 ,M29

87917CSCREW, OUTER MIRROR

main87917-30K00i¥180202405

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-30K80i¥1,610202405

NO PAINT REQ.

main8791A-30K90i¥1,540202405

NO PAINT REQ.

8791BACOVER, OUTER MIRROR, RH NO.3

main8791B-30L10i202405

87931OUTER MIRROR, RH

main87931-30L00i202405

main87931-30L10i202405

87939ACOVER, OUTER MIRROR HOLE, RH

main87939-30J80i¥240202405

main87939-30K00i¥750202405

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-30M10i202405

NO PAINT REQ.

main87940-30M20i202405

NO PAINT REQ.

87945COVER, OUTER MIRROR, LH

main87945-30060-C0i202405

BLACK,090 ,1M2 ,202 ,2XW ,2XZ ,2ZQ ,2ZR ,2ZS ,3U9 ,4Y6 ,5C5 ,M24 ,M25 ,M26 ,M27 ,M29

87948ACOVER, OUTER MIRROR HOLE, LH

main87948-30J80i¥240202405

main87948-30K00i¥750202405

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-30M00i¥1,540202405

NO PAINT REQ.

main8794A-30M10i202405

NO PAINT REQ.

8794BACOVER, OUTER MIRROR, LH NO.3

main8794B-30M20i202405

87961MIRROR OUTER, LH

main87961-30L90i¥4,090202405

main87961-30M00i¥6,300202405

827112C280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C280¥120

8271158030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-58030¥140

9016440100

main90164-40100¥70

9017906274

main90179-06274¥70

22 parts on this diagram · 1 diagram in section
