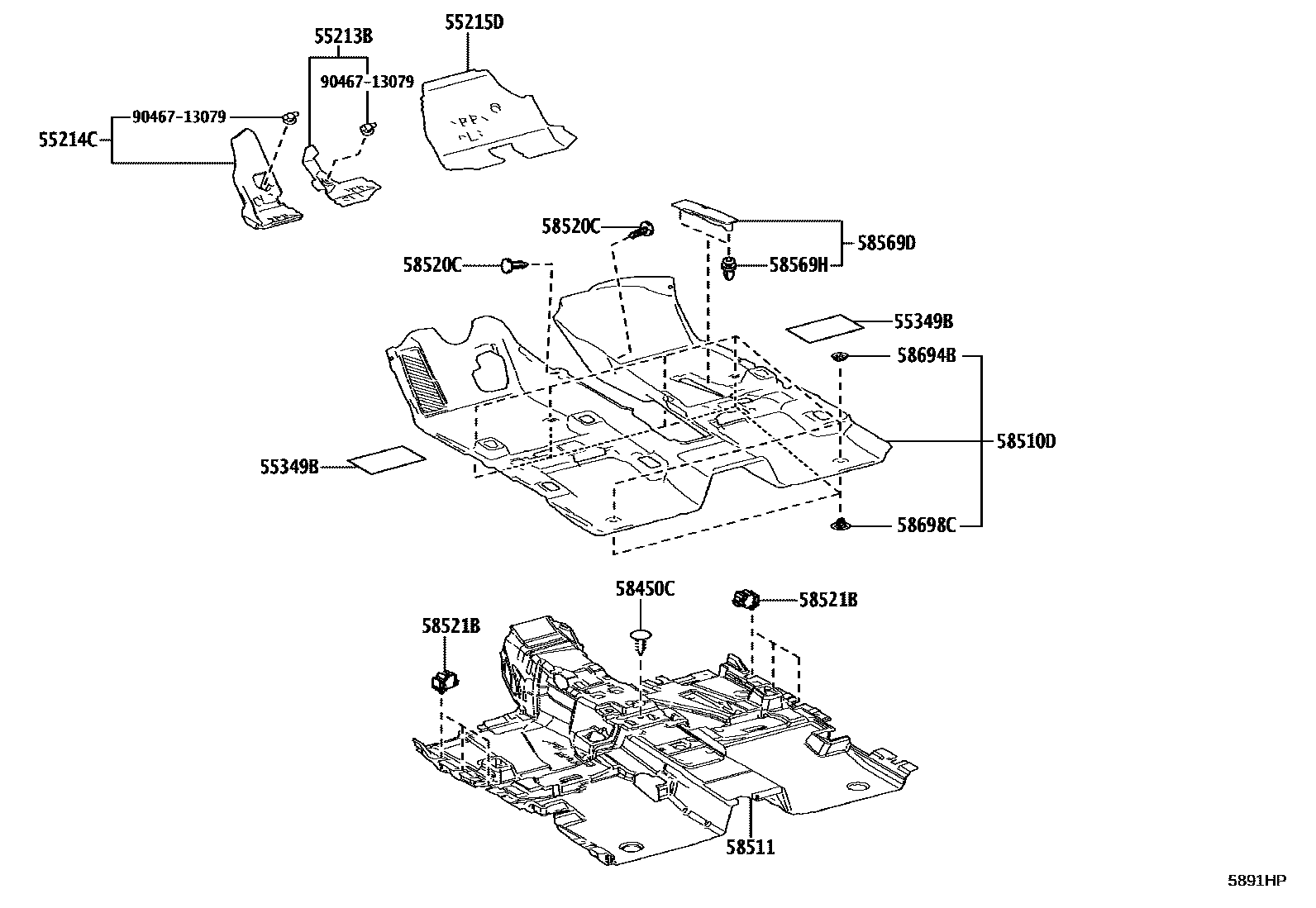

Toyota ALPHARD HEV/PHEV — MAT & CARPET

0001 1 0002 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-30480iAZSH3#202405

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-30150iAZSH3#202405

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-30390iAZSH3#202405

55349BSHEET, ACTIVATED CARBON

main55349-48090iAZSH3#202405

58450CCLIP

main90467-07042-C4iAZSH3#202405

BLACK

sub90467-07042¥110

sub90467-06175¥220

58510DCARPET ASSY, FLOOR, FRONT

main58510-30L40-C0iAZSH36202405

BLACK,TRIM2#,4#

main58510-30M00-C0iAZSH37202409

BLACK,TRIM2#,4#

58511MAT, FLOOR, FRONT

main58511-30A20iAZSH36¥12,500202405

main58511-30A30iAZSH37202409

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-C7iAZSH3#202405

BLACK

sub90467-05164¥110

58521BHOOK, FLOOR CARPET

main58521-33060iAZSH3#¥260202405

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-30040-C0iAZSH3#202405

BLACK,TRIM2#,4#

58569HCLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1

main62217-13010iAZSH3#¥80202405

58694BPLATE, MAT SET, UPPER

main58694-33010iAZSH3#¥200202405

58698CPLATE, MAT SET, LOWER

main58698-33010iAZSH3#¥280202405

9046713079

main90467-13079¥120

14 parts on this diagram · 2 diagrams in section
