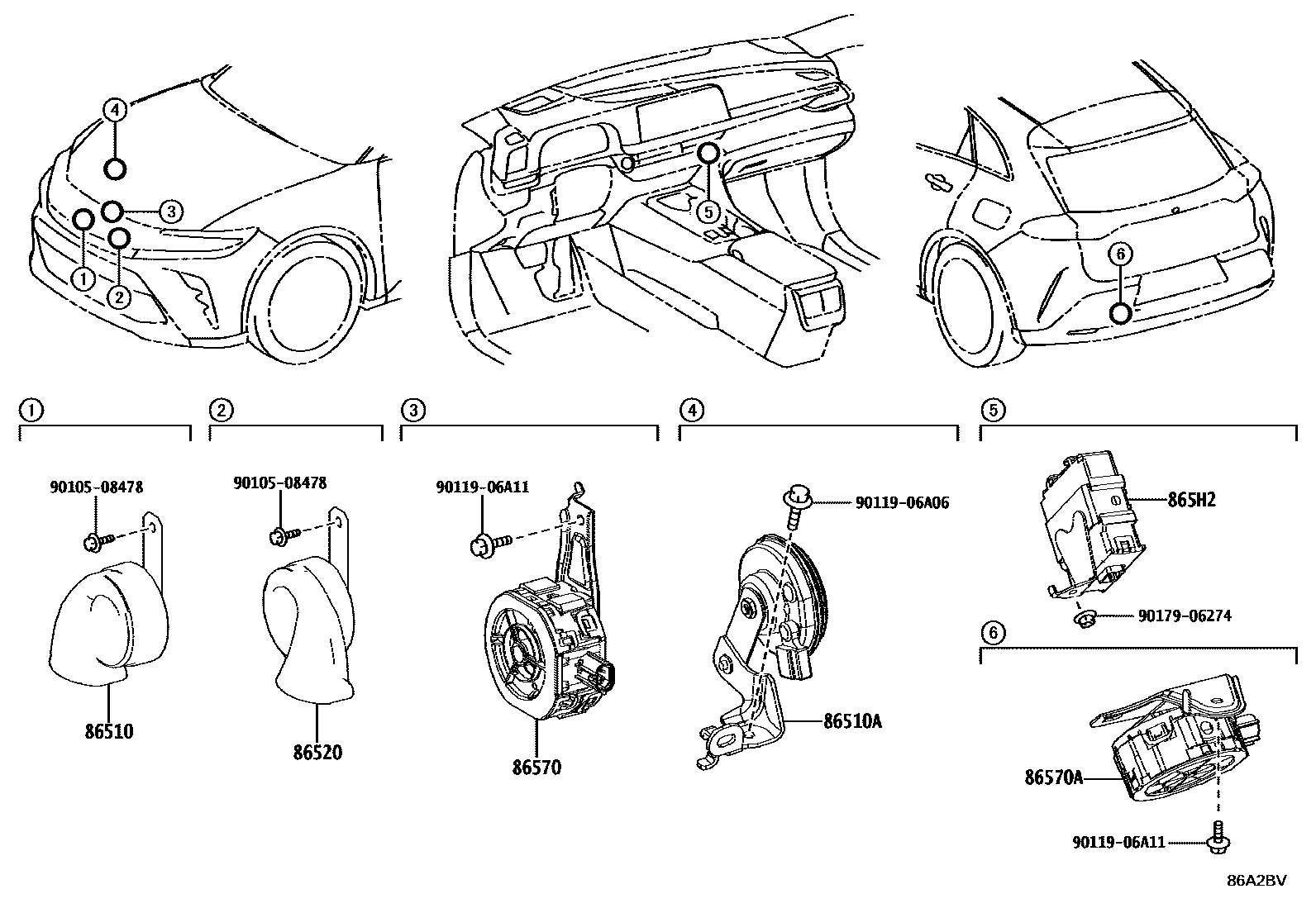

Toyota ALPHARD HEV/PHEV — HORN

86510HORN ASSY, HIGH PITCHED

main86510-78020iAZSH3#202405

86510AHORN ASSY, SECURITY

main86560-33060iAZSH3#¥2,190202405

86520HORN ASSY, LOW PITCHED

main86520-78020iAZSH3#202405

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-30110iAZSH3#202405

86570ASPEAKER ASSY, VEHICLE APPROACHING, NO.2

main86570-30120iAZSH3#202405

865H2CONTROLLER, SPEAKER

main865H2-30010iAZSH36¥8,800202405

main865H2-30020iAZSH37202409

9010508478

main90105-08478¥80

9011906A06

main90119-06A06¥60

9011906A11

main90119-06A11¥60

9017906274

main90179-06274¥70

10 parts on this diagram · 1 diagram in section
