Toyota ALPHARD HEV/PHEV — BRAKE TUBE & CLAMP

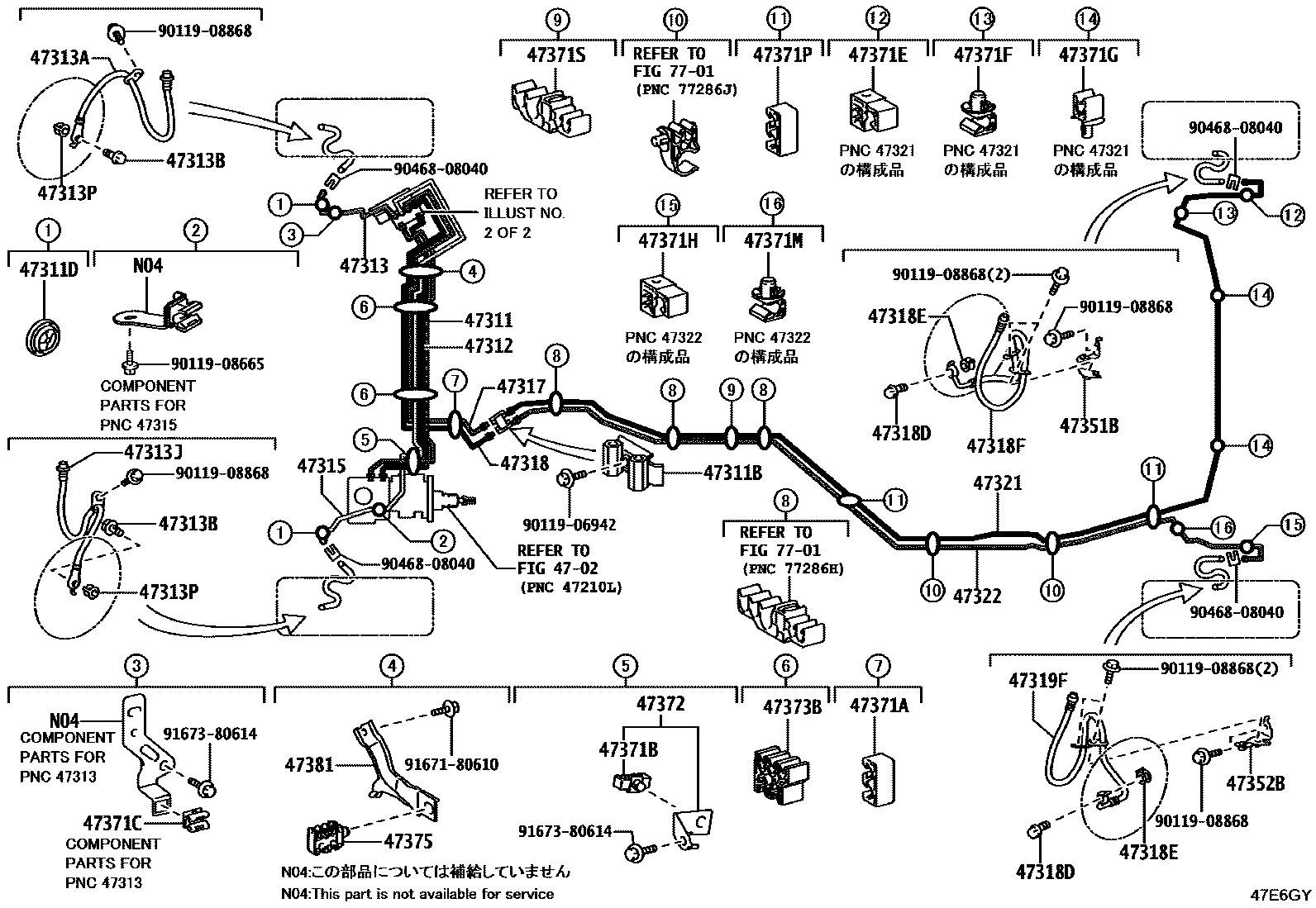

Parts diagram
4702
47311TUBE, FRONT BRAKE, NO.1
main47311-30800i202405
main47311-30860i202409
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
main90412-10314i¥730202405
47311DGROMMET(FOR FRONT BRAKE TUBE)
main90480-25037i¥100202405
47312TUBE, FRONT BRAKE, NO.2
main47312-30B00i202405
main47312-30B60i202409
47313TUBE, FRONT BRAKE, NO.3
main47313-30B80i202409
main47313-30C10i202405
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
main90947-02L01i¥1,670202405
main90947-02L03i¥1,670202409
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
main90401-10058i¥220202405
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
main90947-02L02i¥1,670202405
main90947-02L12i¥1,670202409
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
main47389-50021i¥310202405
47315TUBE, FRONT BRAKE, NO.5
main47315-30630i202409
main47315-30650i202405
47317TUBE, FRONT BRAKE, NO.7
main47317-30160i202405
main47317-30200i202409
47318TUBE, FRONT BRAKE, NO.8
main47318-30120i202405
main47318-30160i202409
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
main90401-10058i¥220202405
47318EGASKET(FOR REAR FLEXIBLE HOSE)
main47389-50021i¥310202405
47318FHOSE, FLEXIBLE(FOR REAR RH)
main90947-02J91i¥2,590202409
main90947-02K40i¥2,590202405
47319FHOSE, FLEXIBLE(FOR REAR LH)
main90947-02J92i¥2,590202409
main90947-02K41i¥2,590202405
47321TUBE, REAR BRAKE, NO.1
main47321-30510i¥2,890202405
main47321-30520i¥3,090202409
47322TUBE, REAR BRAKE, NO.2
main47322-30680i¥2,160202405
main47322-30690i¥2,270202409
47351BBRACKET, FLEXIBLE HOSE, NO.1
main47351-48030i¥400202405
47352BBRACKET, FLEXIBLE HOSE, NO.2
main47352-48030i¥400202405
47371ACLAMP, BRAKE TUBE, NO.1
main90464-00903i¥170202405
47371BCLAMP, BRAKE TUBE, NO.6
main90949-01E80i¥210202405
47371CCLAMP, BRAKE TUBE, NO.7
main90949-01D56i¥110202405
47371ECLAMP, BRAKE TUBE, NO.9
main90949-01C82i¥110202405
47371FCLAMP, BRAKE TUBE, NO.10
main90949-01D17i¥110202405
47371GCLAMP, BRAKE TUBE, NO.11
main90949-01E01i¥110202405
main90949-01E01i¥110202409
47371HCLAMP, BRAKE TUBE, NO.12
main90949-01C82i¥110202405
47371MCLAMP, BRAKE TUBE, NO.13
main90949-01D17i¥110202405
47371PCLAMP, BRAKE TUBE, NO.14
main90464-00903i¥170202405
main90464-00903i¥170202409
47371SCLAMP, BRAKE TUBE, NO.17
main77298-10080i¥640202405
47372CLAMP, BRAKE TUBE, NO.2
main47371-30600i202405
47373BCLAMP, BRAKE TUBE, NO.3
main90949-01E40i¥110202405
47375CLAMP, BRAKE TUBE, NO.5
main90949-01E79i¥210202405
47381BRACKET, BRAKE TUBE CLAMP NO.1
main47381-30220i202405
7701
9011906942
main90119-06942¥60
9011908665
main90119-08665¥90
9011908868
main90119-08868¥70
9046808040
main90468-08040¥130
9167180610
main91671-80610¥60
9167380614
main91673-80614¥60

42 parts on this diagram · 4 diagrams in section
