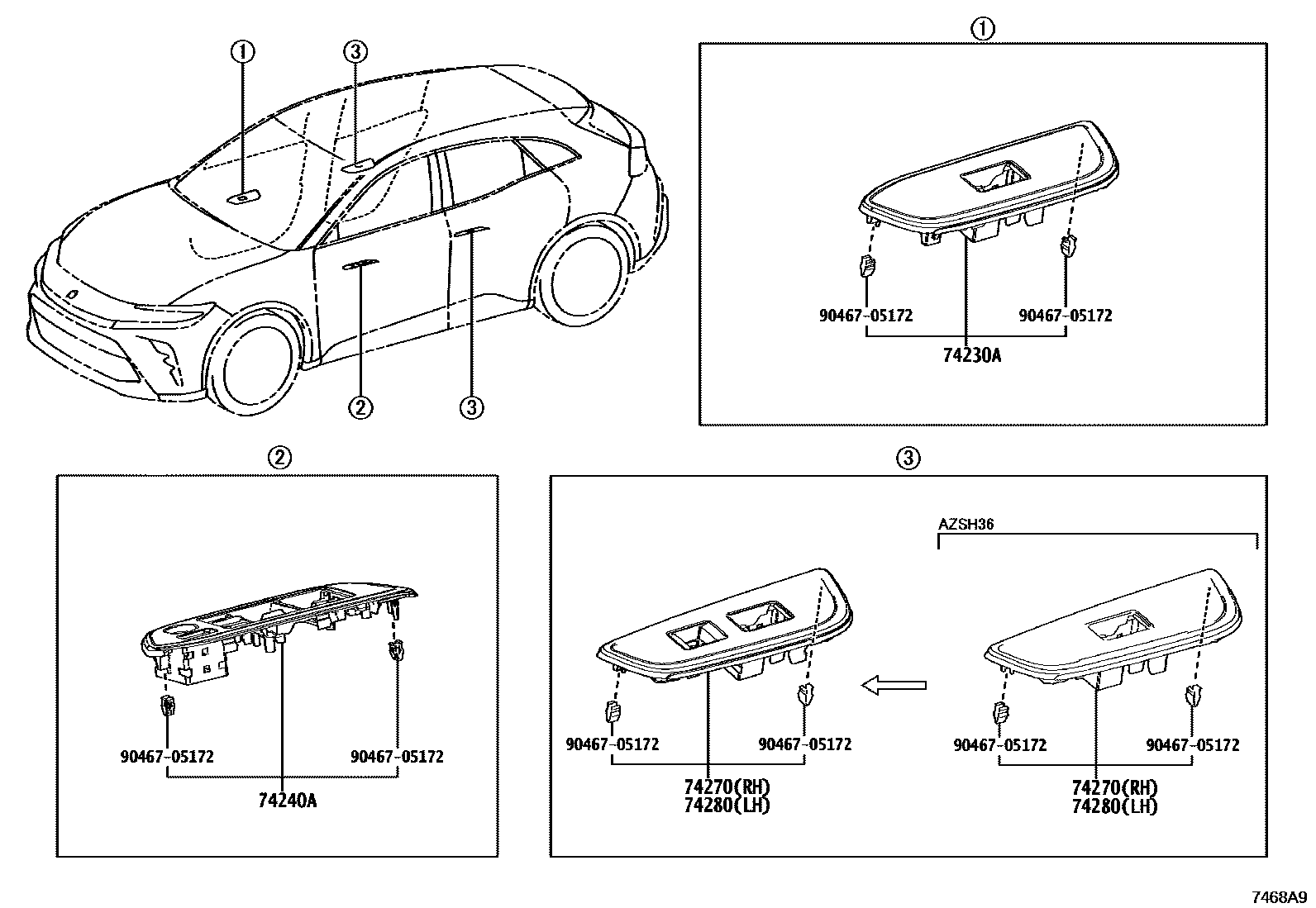

Toyota ALPHARD HEV/PHEV — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74230-30400-B1iAZSH36202405-202409

DARK GRAY METAL,TRIM2#,4#

sub74230-30401

main74230-30400-B1iAZSH37202405-202410

DARK GRAY METAL,TRIM2#,4#

sub74230-30401

main74230-30401-B1iAZSH3#202410

DARK GRAY METAL,TRIM2#,4#

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74240-30410-B1iAZSH3#202405-202410

DARK GRAY METAL,TRIM2#,4#

sub74240-30411

main74240-30411-B1iAZSH3#202410

DARK GRAY METAL,TRIM2#,4#

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74270-30210-B1iAZSH36202405-202409

DARK GRAY METAL,TRIM2#,4#

sub74270-30211¥3,900

main74270-30211-B1iAZSH36202410

DARK GRAY METAL,TRIM2#,4#

main74270-30220-B1iAZSH37202409-202410

DARK GRAY METAL,TRIM2#,4#

sub74270-30221¥3,900

main74270-30221-B1iAZSH37202410

DARK GRAY METAL,TRIM2#,4#

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74280-30210-B1iAZSH36202405-202409

DARK GRAY METAL,TRIM2#,4#

sub74280-30211¥3,900

main74280-30211-B1iAZSH36202410

DARK GRAY METAL,TRIM2#,4#

main74280-30220-B1iAZSH37202409-202410

DARK GRAY METAL,TRIM2#,4#

sub74280-30221¥3,900

main74280-30221-B1iAZSH37202410

DARK GRAY METAL,TRIM2#,4#

9046705172

main90467-05172¥60

5 parts on this diagram · 2 diagrams in section
