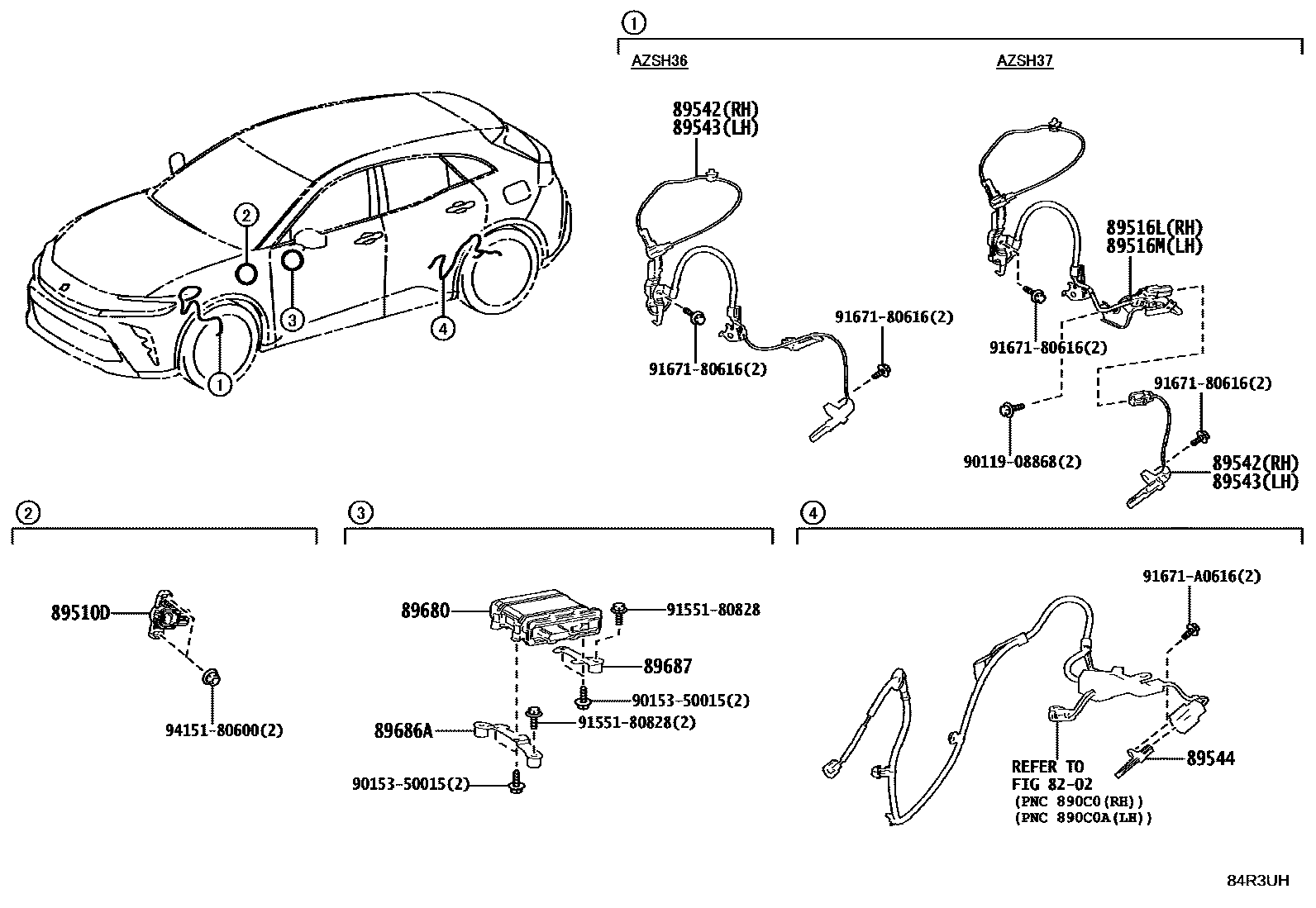

Toyota ALPHARD HEV/PHEV — ABS & VSC

8202

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42010iAZSH3#¥7,900202405

89516LWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, RH

main89516-30240iAZSH37¥3,750202409

89516MWIRE, SKID CONTROL SENSOR W/SUSPENSION CONTROL, LH

main89516-30250iAZSH37¥4,640202409

89542SENSOR, SPEED, FRONT RH

main89542-30320iAZSH36¥8,100202405

main89542-78040iAZSH37¥8,100202409

89543SENSOR, SPEED, FRONT LH

main89543-30310iAZSH36¥8,100202405

main89543-78040iAZSH37¥8,100202409

89544SENSOR, SKID CONTROL

main89544-48050iAZSH3#¥8,400202405

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48020iAZSH3#..G¥24,900202405

main89680-48030iAZSH36..M¥24,900202405

ADVANCED PARK-WITHOUT

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-30140iAZSH3#¥840202405

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-30020iAZSH3#¥540202405

9011908868

main90119-08868¥70

9015350015

main90153-50015¥60

9155180828

main91551-80828¥80

9167180616

main91671-80616¥60

91671A0616

main91671-A0616¥60

9415180600

main94151-80600¥60

16 parts on this diagram · 1 diagram in section
