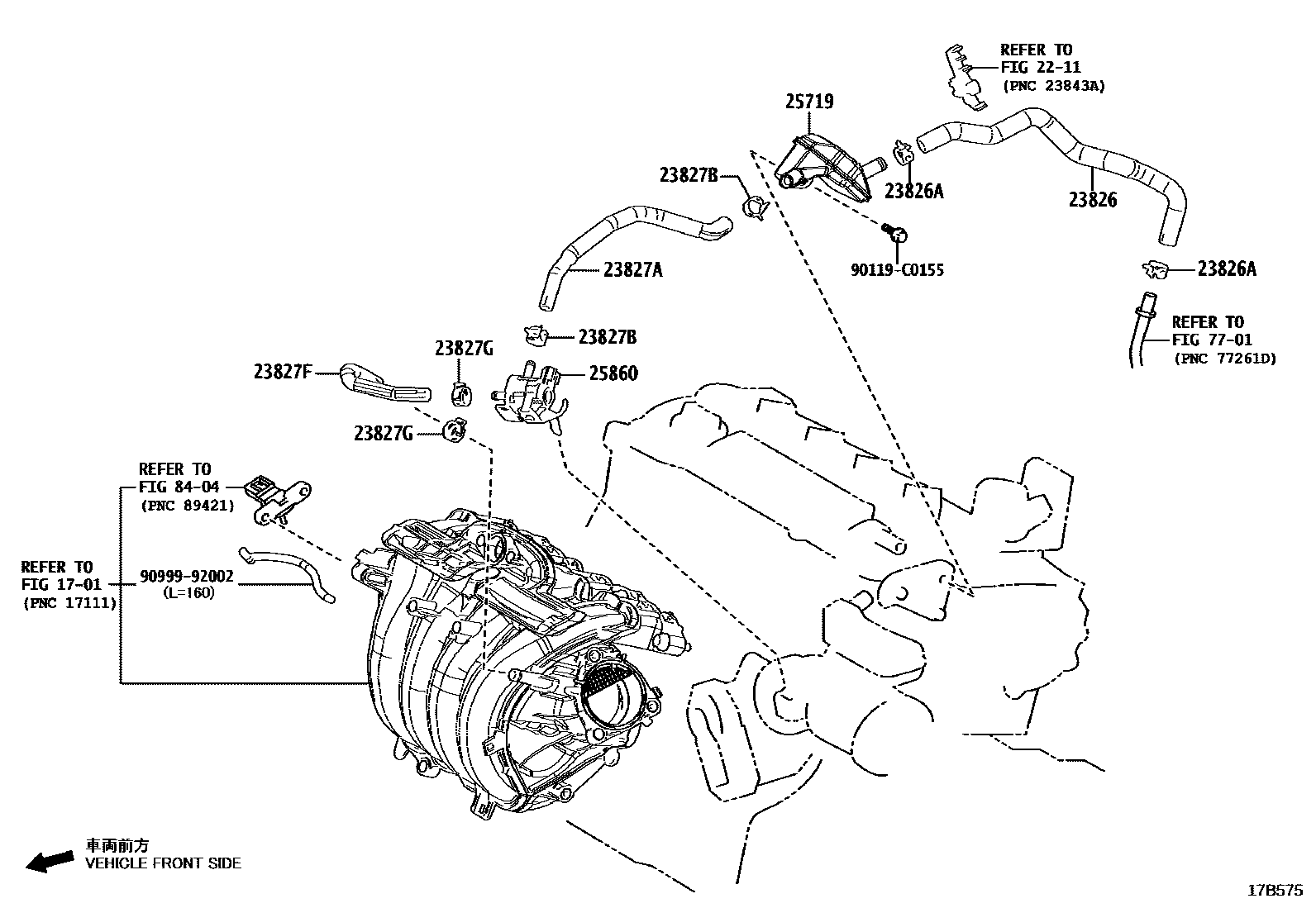

Toyota ALLION — VACUUM PIPING

0001 1 0002 1 0003 1W(GPF)

1701

2211

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-F2080iM20..MZEA12202104-202304

main23826-F2330iM20..MZEH16202309

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-C0039iM20..MZEA12202104-202304

23827AHOSE, FUEL VAPOR FEED, NO.2

main23826-F2090iM20..MZEA12202104-202304

main23826-F2340iM20..MZEH16202309

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-C0039iM20..MZEA12202104-202304

23827FHOSE, FUEL VAPOR FEED, NO.3

main23826-F2101iM20..MZEA12202104-202304

23827GCLIP(FOR FUEL VAPOR FEED HOSE, NO.3)

main90466-C0039iM20..MZEA12202104-202304

25719TANK, VACUUM SURGE

main25719-24020iM20..MZEA12¥1,030202104-202304

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-24040iM20..MZEA12202104-202304

main25860-24090iM20..MZEH16¥3,480202309

(J)

main25860-F2020iM20..MZEH16202309

(L)

7701

8404

90119C0155

main90119-C0155

9099992002

main90999-92002¥460

14 parts on this diagram · 3 diagrams in section
