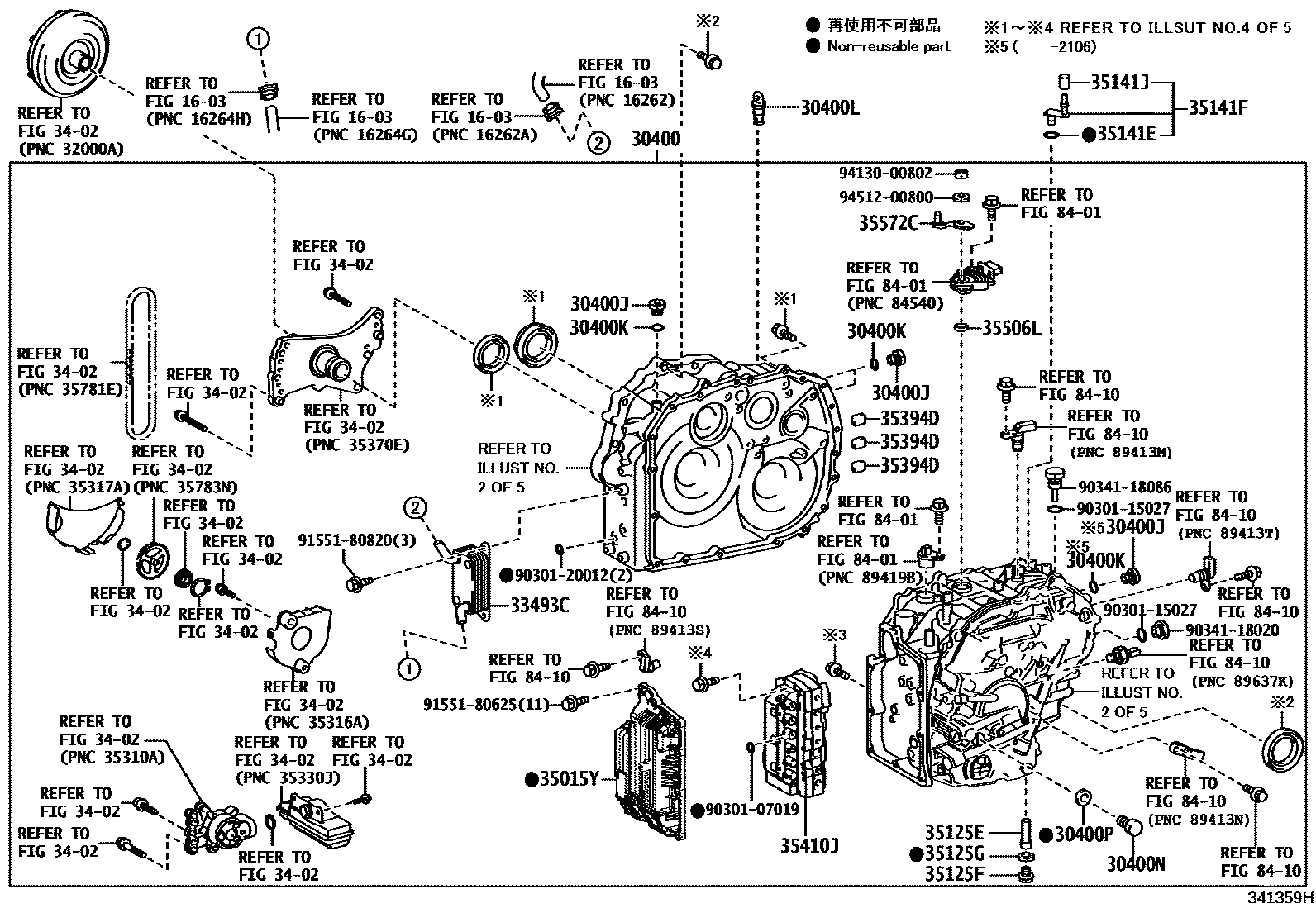

Toyota ALLION — TRANSAXLE ASSY(CVT)

0001 1K120 0002 1K121 0003 1K120 0004 1K121 0005 1K120 0006 1K121 0007 1K120 0008 1K121 0009 1K120 0010 1K121

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-12510iMZEA12202104-202304

K120

main30400-12540iMZEA12202305

K121

30400JPLUG, TRANSAXLE HOLE

main90341-08001iMZEA12¥120202104-202304

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iMZEA12¥170202104-202304

30400LPLUG , FILLER(CVT)

main35150-44010iMZEA12¥340202104-202304

30400NPLUG, REFILL(CVT)

main90341-18077iMZEA12¥190202104-202304

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iMZEA12¥110202104-202304

33493CCOOLER, TRANSMISSION OIL

main33493-12090iMZEA12¥11,900202104-202304

3402

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-12010iMZEA12¥9,500202104-202205

main35015-42010iMZEA12¥8,700202206-202304

main35015-42020iMZEA12202305

35125ETUBE, OVERFLOW(CVT)

main35125-12500iMZEA12¥300202104-202304

35125FPLUG, OVERFLOW(CVT)

main90341-18016iMZEA12¥190202104-202304

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-18008iMZEA12¥110202104-202304

35141ERING, O(FOR BREATHER PLUG)

main90301-09173iMZEA12¥140202104-202304

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03240iMZEA12¥660202104-202304

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03243iMZEA12¥140202104-202304

35394DMAGNET, OIL CLEANER(CVT)

main35394-48010iMZEA12¥280202104-202304

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12881iMZEA12¥53,700202104-202304

main35410-42080iMZEA12202305

35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iMZEA12¥270202104-202304

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12190iMZEA12¥590202104-202304

8401

8410

9030107019

main90301-07019¥170

9030115027

main90301-15027¥130

9030120012

main90301-20012¥170

9034118020

main90341-18020¥310

9034118086

main90341-18086¥310

9155180625

main91551-80625¥60

9155180820

main91551-80820¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

31 parts on this diagram · 10 diagrams in section
