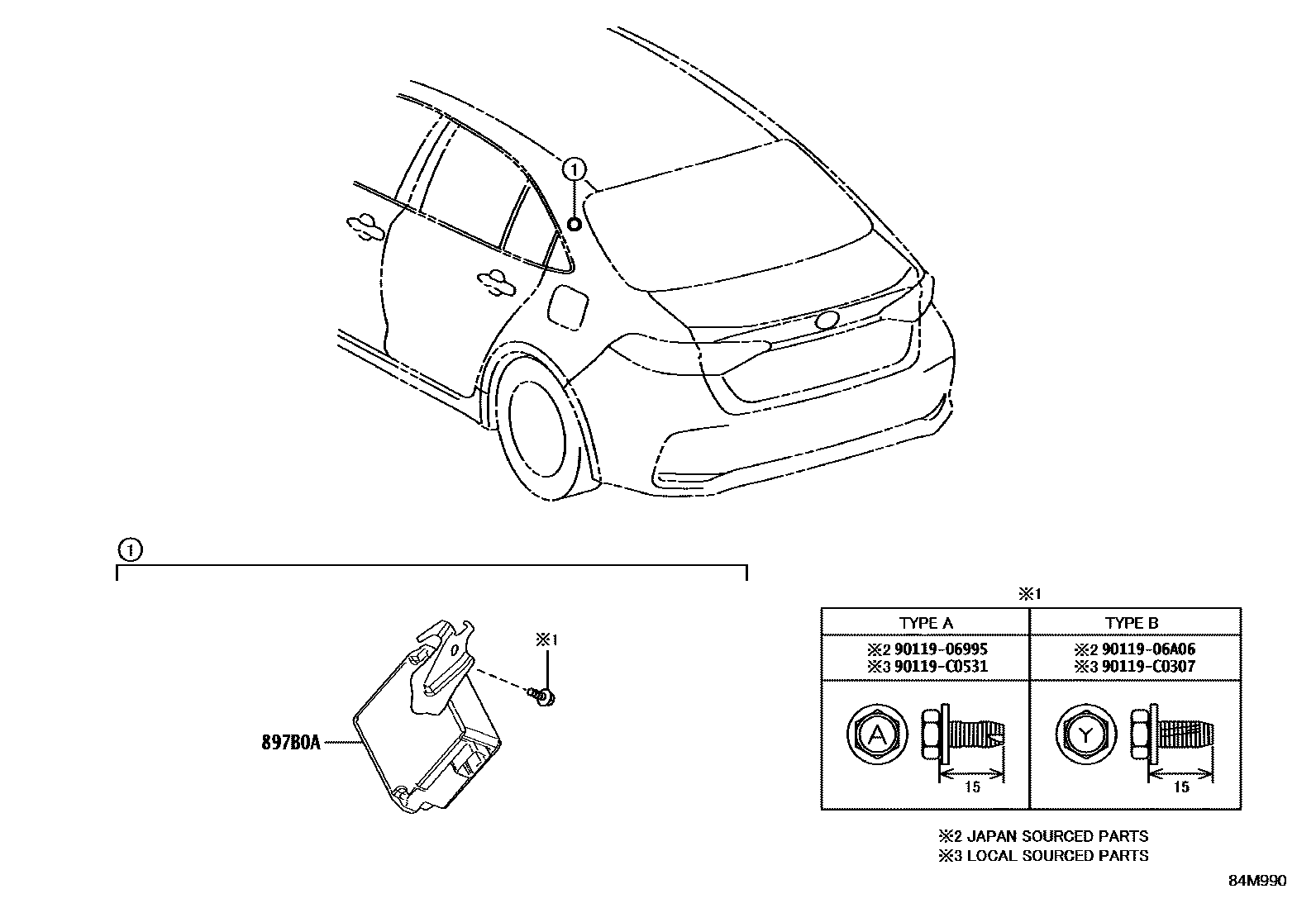

Toyota ALLION — TIRE PRESSURE WARNING SYSTEM

0001 1 0002 1

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-02110iMZEA12202104-202304

main897B0-02280iMZEA12,MZEH16202305

9011906995

main90119-06995¥60

9011906A06

main90119-06A06¥60

90119C0307

main90119-C0307

90119C0531

main90119-C0531

5 parts on this diagram · 2 diagrams in section
