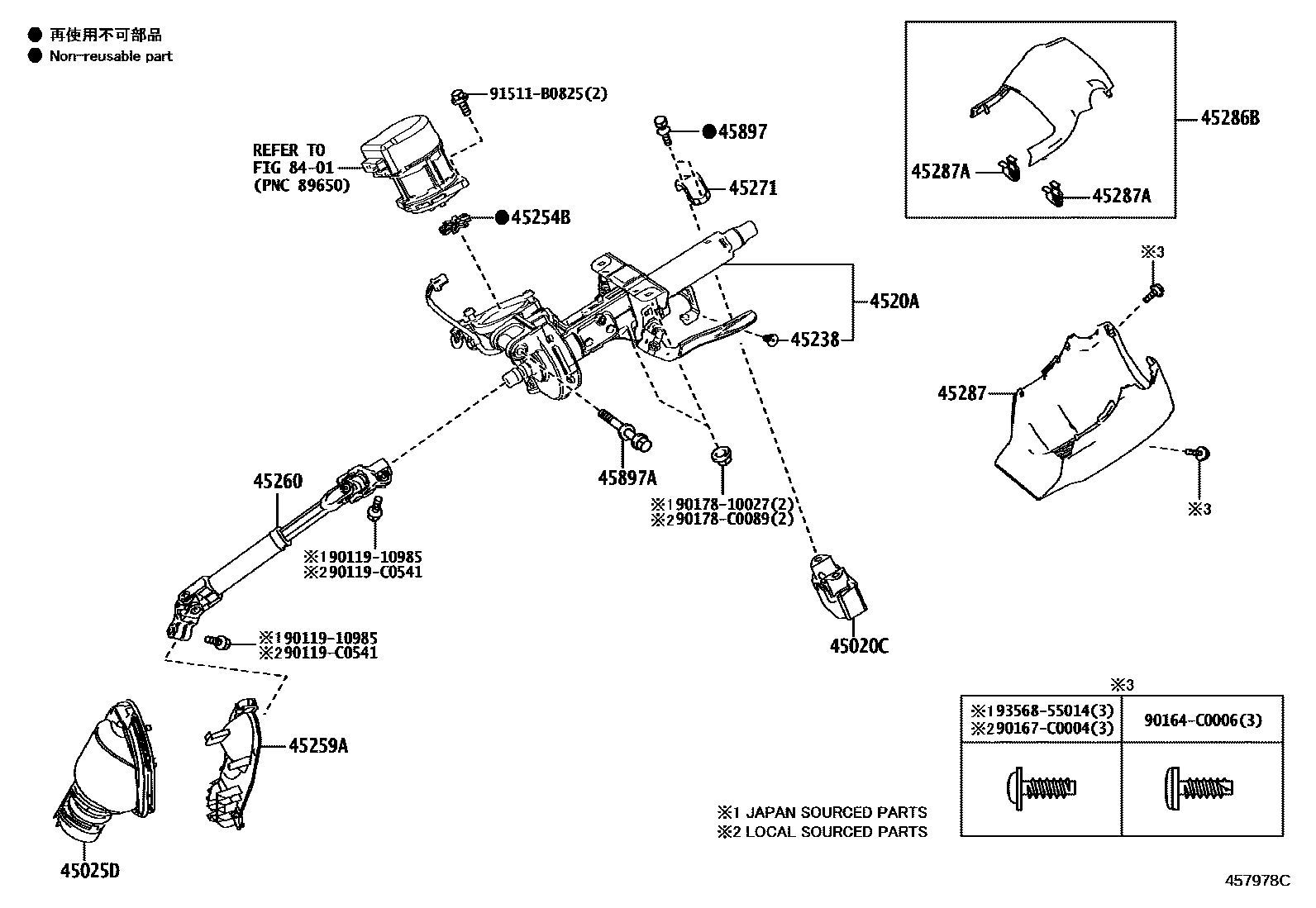

Toyota ALLION — STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-02A10iMZEA12202104-202304

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-02350iMZEA12,MZEH16202104-202304

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-02500iMZEA12202104-202304

main4520A-02730iMZEA12202305

main4520A-02780iMZEH16202309

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iMZEA12¥70202104-202304

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iMZEA12¥220202104-202304

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-02360iMZEA12202104-202304

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-02330iMZEA12202104-202304

main45260-02360iMZEA12,MZEH16202305

45271CLAMP, STEERING COLUMN, UPPER

main45271-0A020iMZEA12202203-202304

main45271-52030iMZEA12¥440202104-202202

45286BCOVER, STEERING COLUMN, UPR

main45286-02760-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main45286-02760-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main45286-02760-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

45287COVER, STEERING COLUMN, LWR

main45287-02760-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main45287-02760-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main45287-02760-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

45287ACLIP(FOR STEERING COLUMN COVER)

main90467-05171iMZEA12¥60202104-202304

45897BOLT, STEERING LOCK SET

main45897-12020iMZEA12¥210202104-202304

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iMZEA12¥190202104-202304

(J)

main90119-C0427iMZEA12,MZEH16202104-202304

(L)

8401

9011910985

main90119-10985¥100

90119C0541

main90119-C0541

90164C0006

main90164-C0006

90167C0004

main90167-C0004

9017810027

main90178-10027¥100

90178C0089

main90178-C0089

91511B0825

main91511-B0825¥140

9356855014

main93568-55014¥70

22 parts on this diagram · 1 diagram in section
