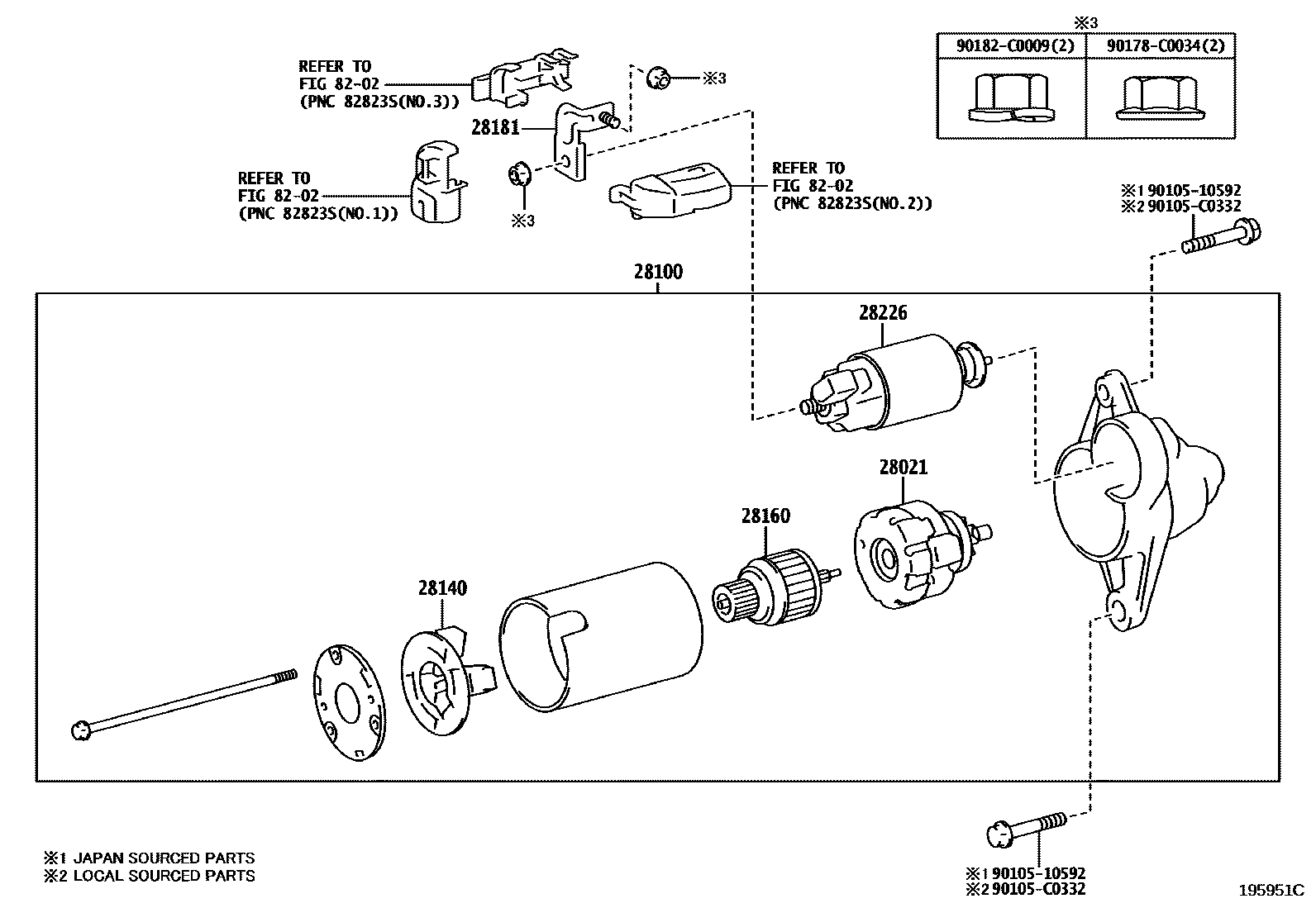

Toyota ALLION — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-F2100iM20..MZEA12202104-202304

main28021-F2100iM20..MZEA12202305

28100STARTER ASSY

main28100-F2100iM20..MZEA12202104-202304

12V 1.2KW

main28100-F2100iM20..MZEA12202305

12V 1.2KW

28140HOLDER ASSY, STARTER BRUSH

main28140-0T330iM20..MZEA12202104-202304

main28140-0T330iM20..MZEA12202305

28160ARMATURE ASSY, STARTER

main28160-0T330iM20..MZEA12202104-202304

main28160-0T330iM20..MZEA12202305

28181TERMINAL, STARTER

main28181-24010iM20..MZEA12¥1,300202104-202304

main28181-24010iM20..MZEA12¥1,300202305

28226STARTER KIT, BATTERY TERMINAL

main28226-F2100iM20..MZEA12202104-202304

main28226-F2100iM20..MZEA12202305

8202

9010510592

main90105-10592¥160

90105C0332

main90105-C0332

90178C0034

main90178-C0034

90182C0009

main90182-C0009

11 parts on this diagram · 1 diagram in section
