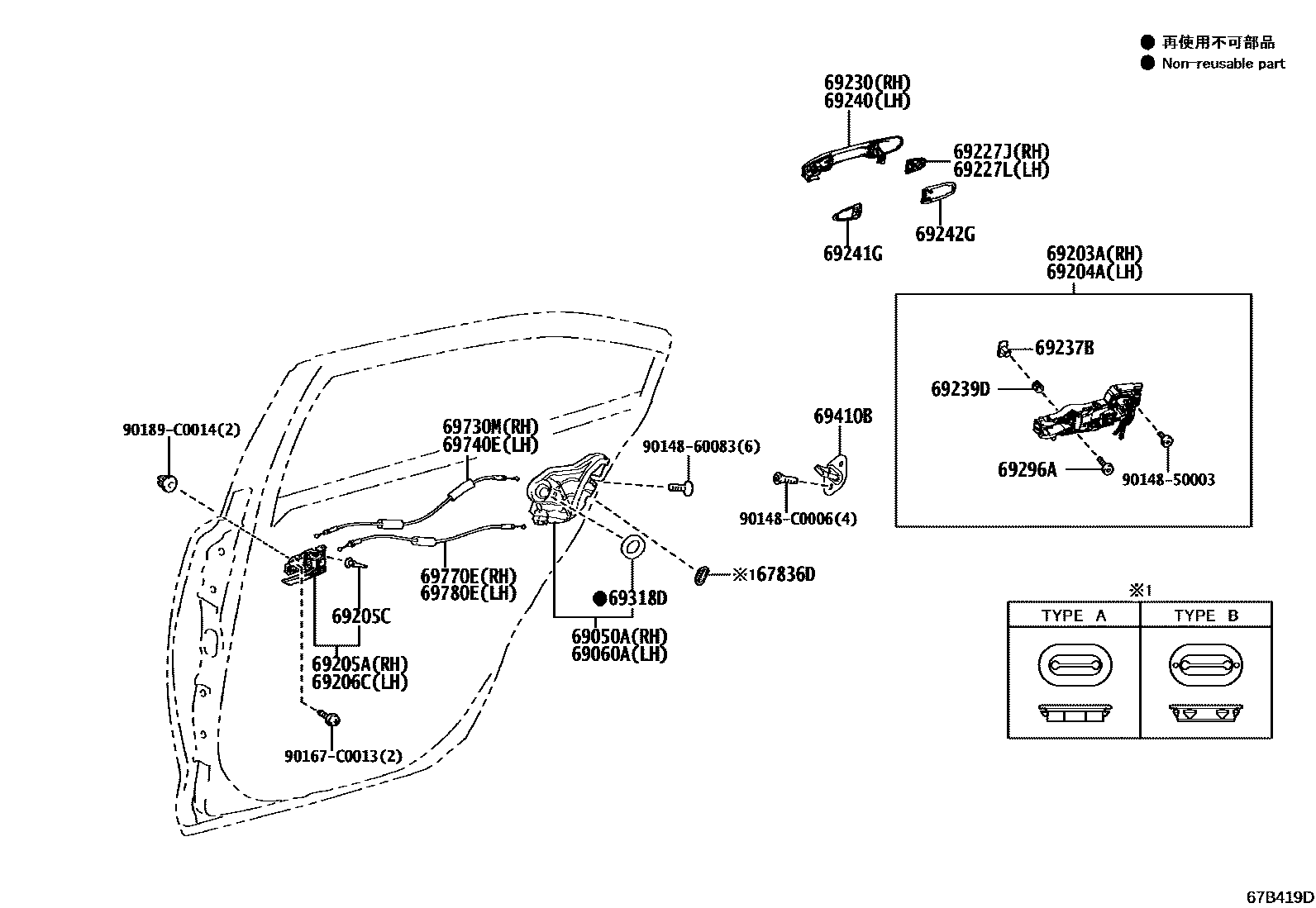

Toyota ALLION — REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
WHITE,TRIM8#
WHITE,TRIM80
BLACK,TRIM2#
BLACK,TRIM2#,8#
BLACK,TRIM2#,81
TAUPE,TRIM4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
WHITE,TRIM8#
WHITE,TRIM80
BLACK,TRIM2#
BLACK,TRIM2#,81
BLACK,TRIM2#,8#
TAUPE,TRIM4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
SILVER ME.,1L0
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
AVANT-GARDE BRONZE ME.,4V8
NEBULA BLUE ME.,8X2
PLATED
PLATED,LEATHER PACKAGE
69237BNUT, REAR DOOR HANDLE
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
SILVER ME.,1L0
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
AVANT-GARDE BRONZE ME.,4V8
NEBULA BLUE ME.,8X2
PLATED,LEATHER PACKAGE
PLATED
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014850003
9014860083
90148C0006
main90148-C0006
90167C0013
main90167-C0013
90189C0014
main90189-C0014
28 parts on this diagram · 1 diagram in section
