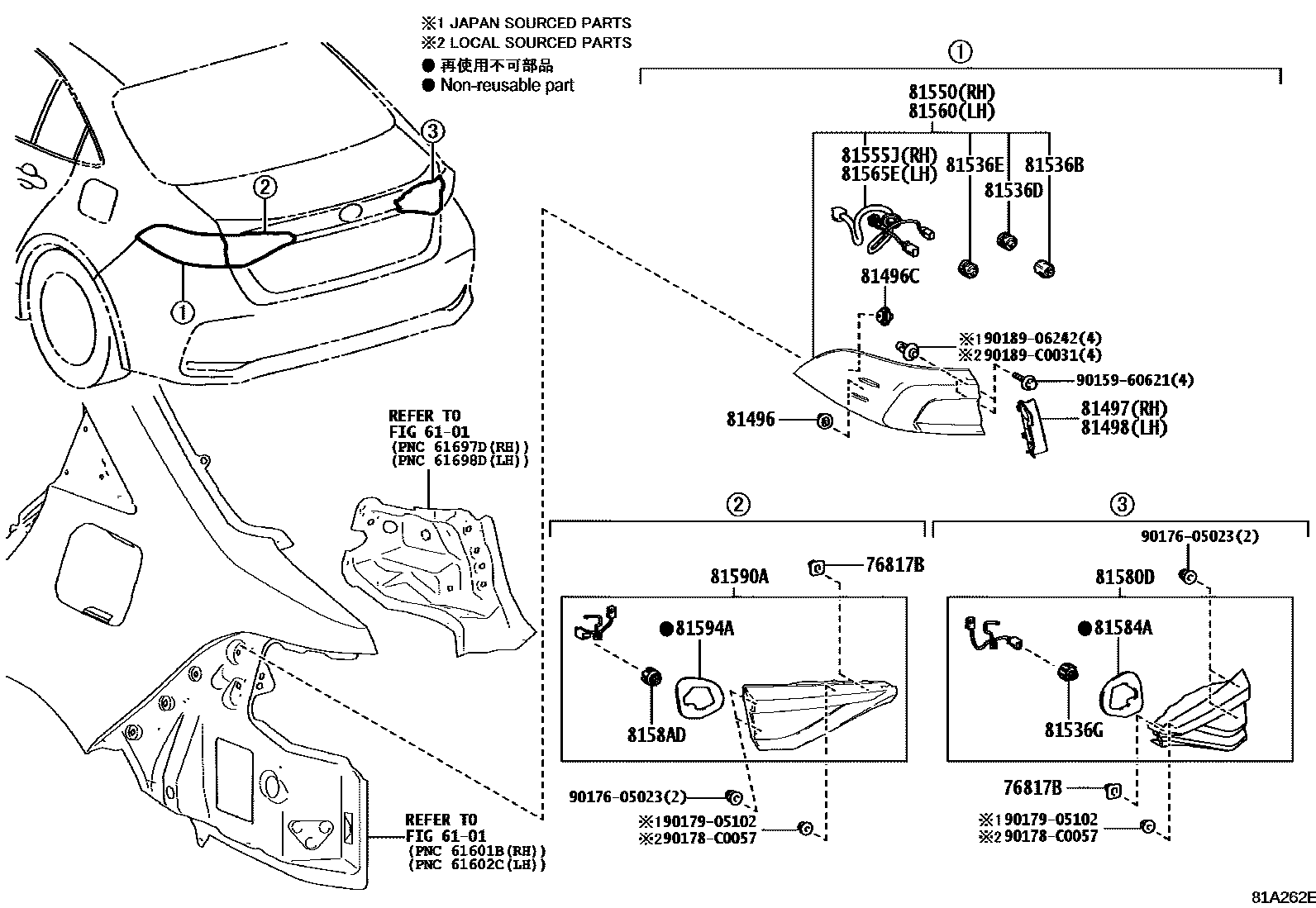

Toyota ALLION — REAR COMBINATION LAMP

0001 1 0002 1W(SEQUENTIAL TURN LUMP) 0003 1

6101

76817BCLIP, REAR LAMP

main76817-26040iMZEA12,MZEH16¥110202305

(J)

main76817-26040iMZEA12¥110202111-202304

(J)

main76817-26040iMZEA12¥110202104-202111

main90467-C0083iMZEA12202111-202304

(L)

main90467-C0083iMZEA12,MZEH16202305

(L)

81496GUIDE, REAR COMBINATION LAMP

main81496-02020iMZEA12202104-202304

(L)

main81496-02020iMZEA12,MZEH16202305

(L)

main81496-52020iMZEA12¥70202104-202304

(J)

main81496-52020iMZEA12,MZEH16¥70202305

(J)

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main90467-C0019iMZEA12202104-202304

main90467-C0019iMZEA12,MZEH16202305

81497COVER, REAR COMBINATION LAMP, RH

main81497-02110iMZEA12202104-202304

main81497-02110iMZEA12,MZEH16202305

81498COVER, REAR COMBINATION LAMP, LH

main81498-02110iMZEA12,MZEH16202305

main81498-02110iMZEA12202104-202304

81536BLED, REAR TURN SIGNAL LAMP

main81965-02030iMZEA12..E202207-202304

main81965-02030iMZEA12,MZEH16..E,G202305

main90069-81127iMZEA12..E202104-202207

81536DLED, TAILLAMP

main81965-02020iMZEA12..E202207-202304

main81965-02020iMZEA12,MZEH16..E,G202305

81536ELED, STOP LAMP

main81965-02020iMZEA12,MZEH16..E,G202305

main81965-02020iMZEA12..E202207-202304

main90069-81126iMZEA12..E202104-202207

main90069-81126iMZEA12..G202104-202304

LEATHER PACKAGE

81536GLED, BACK-UP LAMP

main81965-02040iMZEA12..E202207-202304

main81965-02040iMZEA12,MZEH16202305

main90069-81129iMZEA12..E202104-202304

LEATHER PACKAGE

main90069-81129iMZEA12..E202104-202207

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02E80iMZEA12..G202104-202304

LEATHER PACKAGE

main81550-02E90iMZEA12..E202104-202207

main81550-02E91iMZEA12..E202207-202304

main81550-02E91iMZEA12,MZEH16..E,G202305

main81550-02F00iMZEA12..N202104-202304

main81550-02F01iMZEA12,MZEH16..N202305

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-02E80iMZEA12..E202104-202304

LEATHER PACKAGE

main81555-02E90iMZEA12..E202104-202207

main81555-02F00iMZEA12..N202104-202304

main81555-02F60iMZEA12,MZEH16..N202305

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02E80iMZEA12..E202104-202304

LEATHER PACKAGE

main81560-02E90iMZEA12..E202104-202207

main81560-02E91iMZEA12..E202207-202304

main81560-02E91iMZEA12,MZEH16..E,G202305

main81560-02F00iMZEA12..N202104-202304

main81560-02F01iMZEA12,MZEH16..N202305

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81565-02E80iMZEA12..G202104-202304

LEATHER PACKAGE

main81565-02E90iMZEA12..E202104-202207

main81565-02F00iMZEA12..N202104-202304

main81565-02F60iMZEA12,MZEH16..N202305

81580DLAMP ASSY, REAR, RH

main81580-02680iMZEA12..G202104-202304

LEATHER PACKAGE

main81580-02A10iMZEA12..E202104-202207

main81580-02A11iMZEA12..E202207-202304

main81580-02A11iMZEA12,MZEH16..E,G202305

main81580-02E40iMZEA12..N202104-202304

main81580-02E41iMZEA12,MZEH16..N202305

81584AGASKET, REAR LAMP RH

main81584-02D50iMZEA12202104-202304

main81584-02D50iMZEA12,MZEH16202305

8158ADLED, REAR FOG LAMP

main81965-02020iMZEA12,MZEH16202305

main81965-02020iMZEA12..E202207-202304

main90069-81126iMZEA12..E202104-202304

LEATHER PACKAGE

main90069-81126iMZEA12..E202104-202207

81590ALAMP ASSY, REAR, LH

main81590-02680iMZEA12..G202104-202304

LEATHER PACKAGE

main81590-02A10iMZEA12..E202104-202207

main81590-02A11iMZEA12..E202207-202304

main81590-02A11iMZEA12,MZEH16..E,G202305

main81590-02E40iMZEA12..N202104-202304

main81590-02E41iMZEA12,MZEH16..N202305

81594AGASKET, REAR LAMP LH

main81584-02D50iMZEA12202104-202304

main81584-02D50iMZEA12,MZEH16202305

9015960621

main90159-60621¥60

9017605023

main90176-05023¥80

90178C0057

main90178-C0057

9017905102

main90179-05102¥90

9018906242

main90189-06242¥70

90189C0031

main90189-C0031

25 parts on this diagram · 3 diagrams in section
