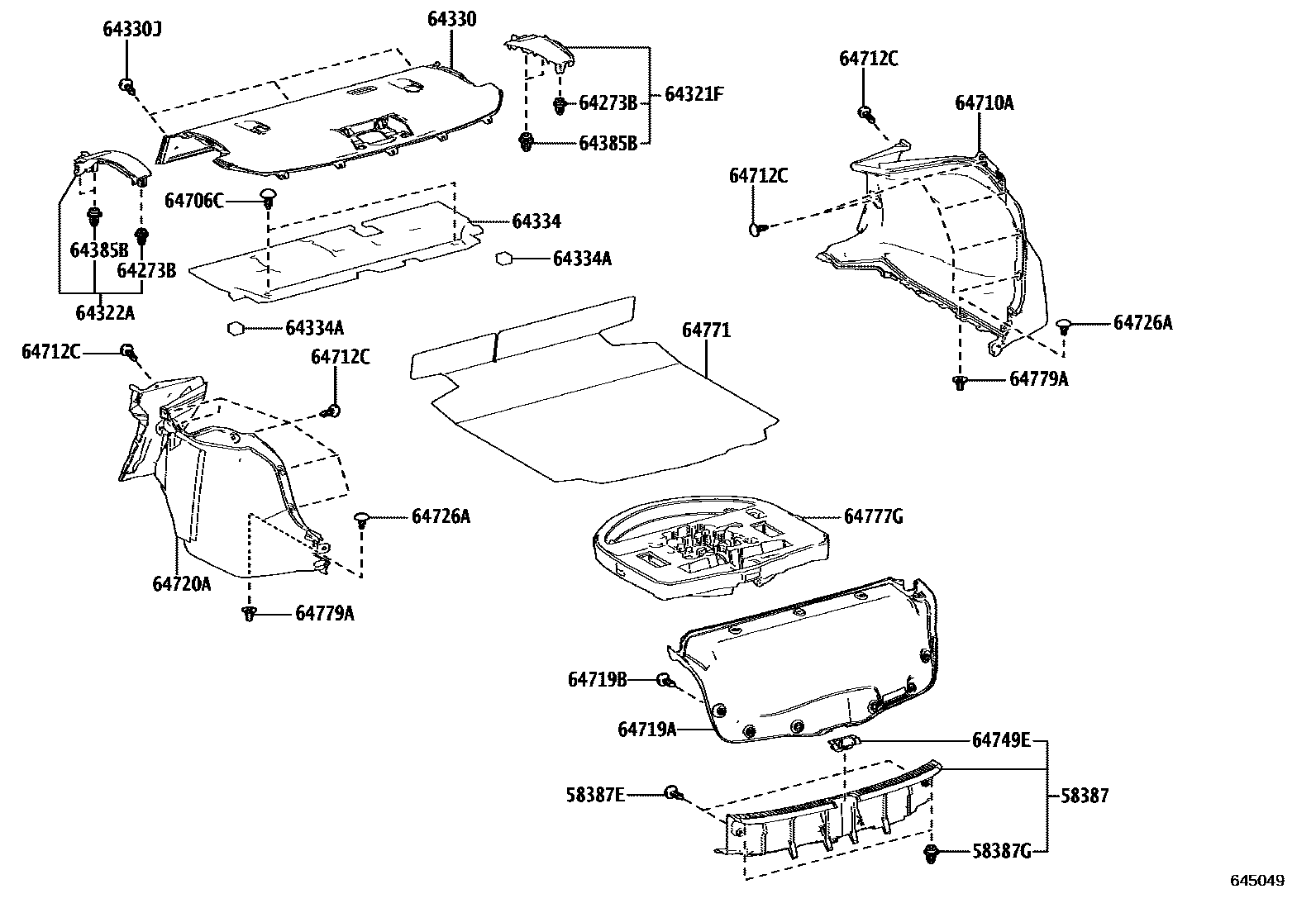

Toyota ALLION — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-02400-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main58387-02400-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

main58387-02400-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-C0045-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main90467-C0045-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main90467-C0045-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

58387GCLIP(FOR REAR FLOOR FINISH PLATE)

main90467-C0036iMZEA12202104-202304

64273BCLIP

main90467-09240iMZEA12¥80202104-202304

64321FBRACKET, PACKAGE TRAY TRIM, RH

main64301-02110-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main64301-02110-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main64301-02130-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

64322ABRACKET, PACKAGE TRAY TRIM, LH

main64302-02110-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main64302-02110-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main64302-02120-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02J40-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

main64330-02J40-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#,4#

main64330-02K60-C1iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-C0043iMZEA12,MZEH16202305

main90467-C0045-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#,4#

main90467-C0045-C0iMZEA12..N202104-202304

BLACK,TRIM2#

64334PAD, PACKAGE TRAY TRIM SILENCER

main64334-02440iMZEA12202104-202304

64334APAD, PACKAGE TRAY TRIM

main64334-02590iMZEA12202104-202304

main64334-02610iMZEA12,MZEH16202305

64385BCLIP

main90467-C0036iMZEA12202104-202304

64706CCLIP

main90467-C0029iMZEA12202104-202304

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02550-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main64710-02550-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main64710-02590-C0iMZEA12202305

BLACK,TRIM2#,8#

main64710-02680-C0iMZEH16202309

BLACK,TRIM2#,8#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-C0045-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main90467-C0045-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main90467-C0045-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02351-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main64719-02351-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main64719-02360-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-C0045-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main90467-C0045-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main90467-C0045-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02530-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main64720-02530-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main64720-02770-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-0D010iMZEA12,MZEH16202104-202304

(L)

main64726-26010-C2iMZEA12..E,G202104-202304

BLACK,TRIM2#,(J)

main64726-26010-C2iMZEA12..E,G202104-202304

BLACK,TRIM2#,4#,(J)

main64726-26010-C2iMZEA12,MZEH16202305

BLACK,TRIM2#,8#,(J)

64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-02150-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#,4#

main64749-02150-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main64749-02150-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

64771COVER, SPARE WHEEL

main64771-02620-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main64771-02620-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main64771-02670-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

64777GCUSHION, SPARE WHEEL

main64777-02230iMZEA12202104-202304

main64777-02580iMZEA12,MZEH16202305

64779ASTOPPER, SPARE WHEEL COVER

main64779-0D040iMZEA12,MZEH16202104-202304

(L)

main64779-26010iMZEA12¥220202104-202304

(J)

22 parts on this diagram · 2 diagrams in section
