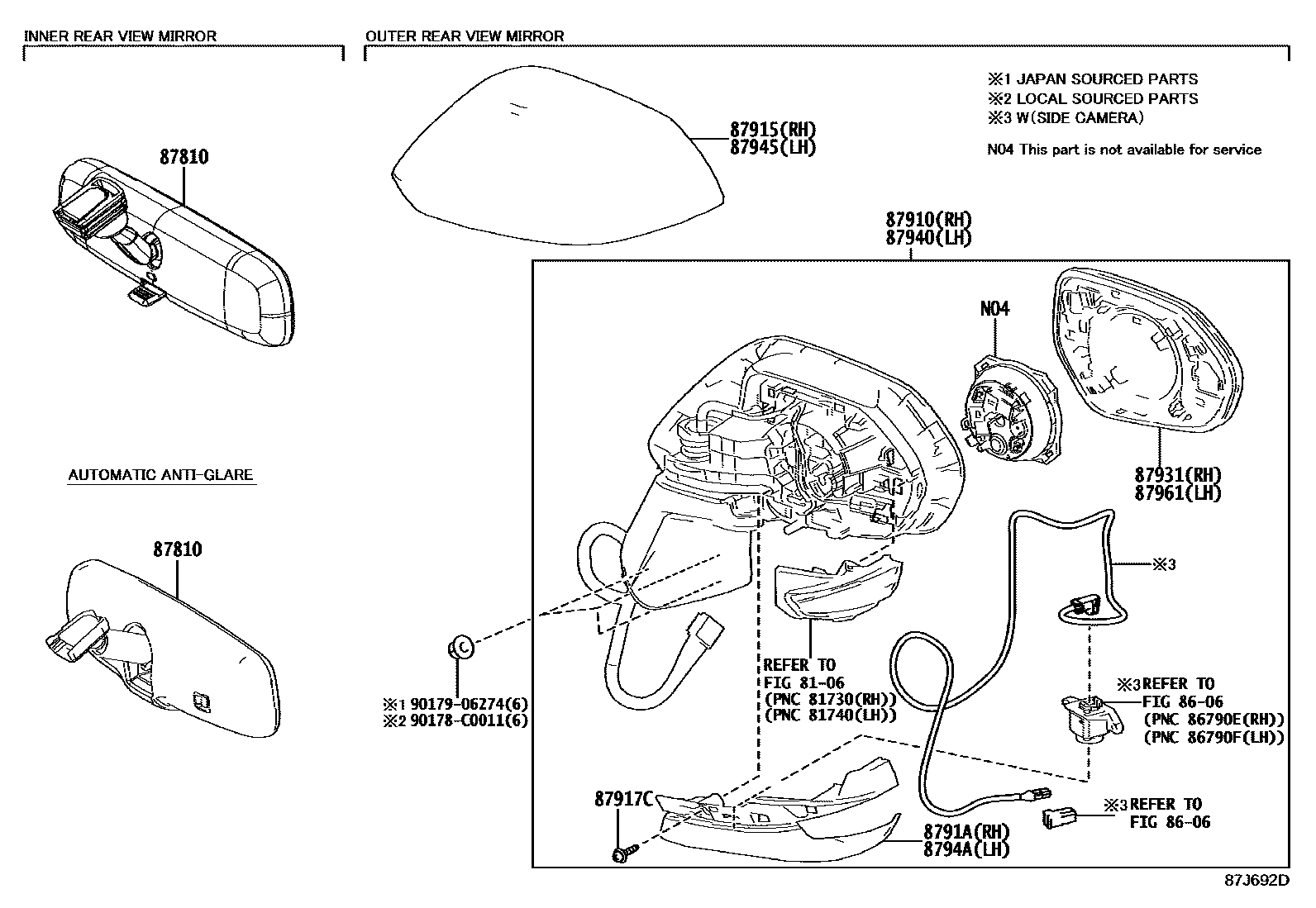

Toyota ALLION — MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
LEATHER PACKAGE
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
87917CSCREW, OUTER MIRROR
8791ACOVER, OUTER MIRROR, RH NO.2
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
8794ACOVER, OUTER MIRROR, LH NO.2
87961MIRROR OUTER, LH
90178C0011
main90178-C0011
9017906274
14 parts on this diagram · 1 diagram in section
