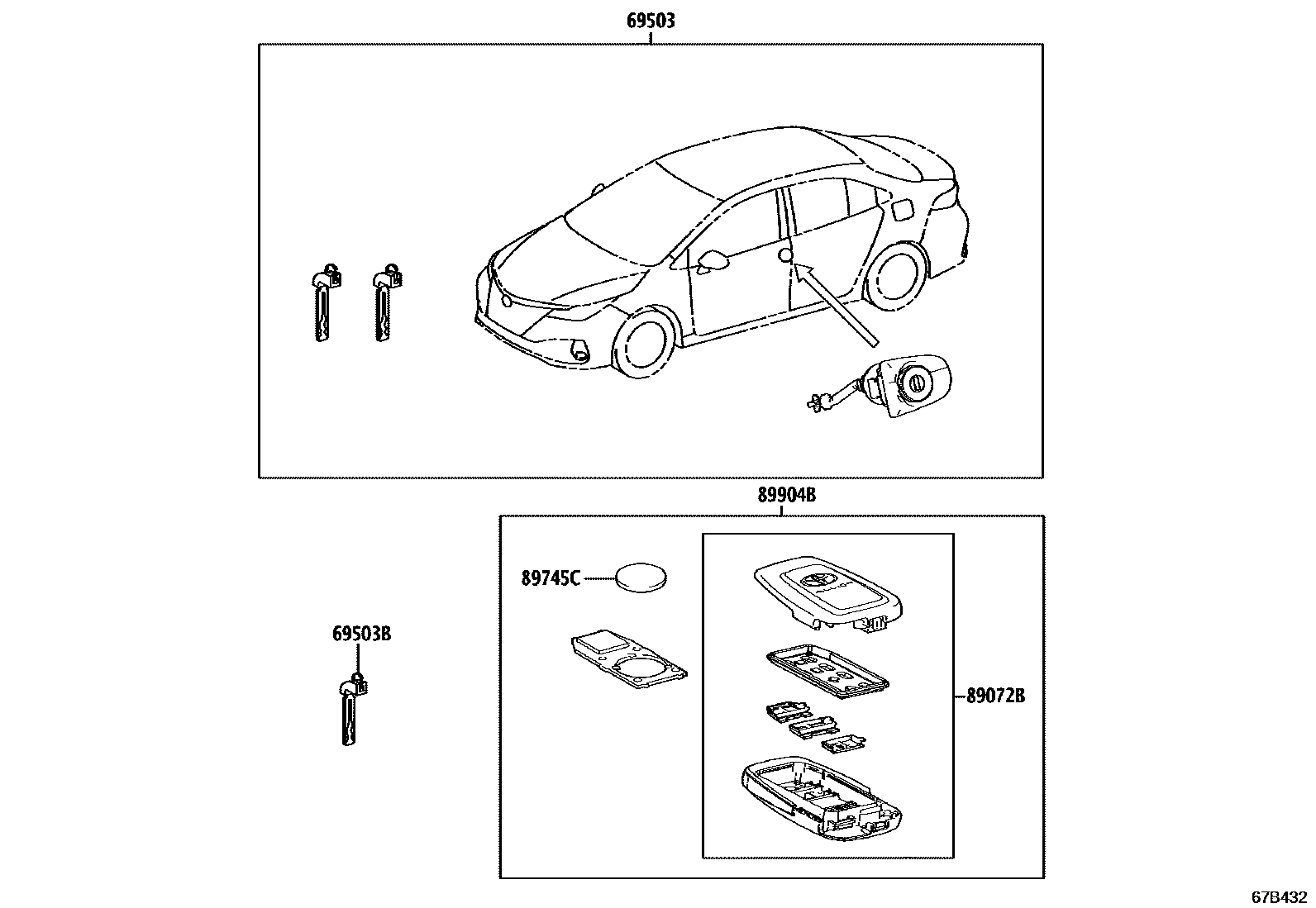

Toyota ALLION — LOCK CYLINDER SET

0001 1 0002 1

69503CYLINDER SET, LOCK

main69005-02K10iMZEA12,MZEH16202305

main69005-02L90iMZEA12202104-202304

69503BKEY, CUT

main69515-0R160iMZEA12,MZEH16202305

MASTER KEY,W(*68)

main69515-F4060iMZEA12202104-202304

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-02890iMZEA12202104-202304

main89072-02C20iMZEA12202305

main89072-02C30iMZEH16202309

89745CBATTERY, TRANSMITTER

main89745-12020iMZEA12,MZEH16202305

CR2032,DENSO

main89745-50020iMZEA12¥440202104-202304

CR2032

main89745-50020iMZEA12,MZEH16¥440202305

CR2032,PANASONIC

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-02100iMZEA12202104-202304

main8990H-02430iMZEA12202305-202309

sub8990H-02431

main8990H-02431iMZEA12202310

main8990H-02440iMZEH16202309-202310

sub8990H-02441

main8990H-02441iMZEH16202310

5 parts on this diagram · 2 diagrams in section
