Toyota ALLION — HEV INVERTER

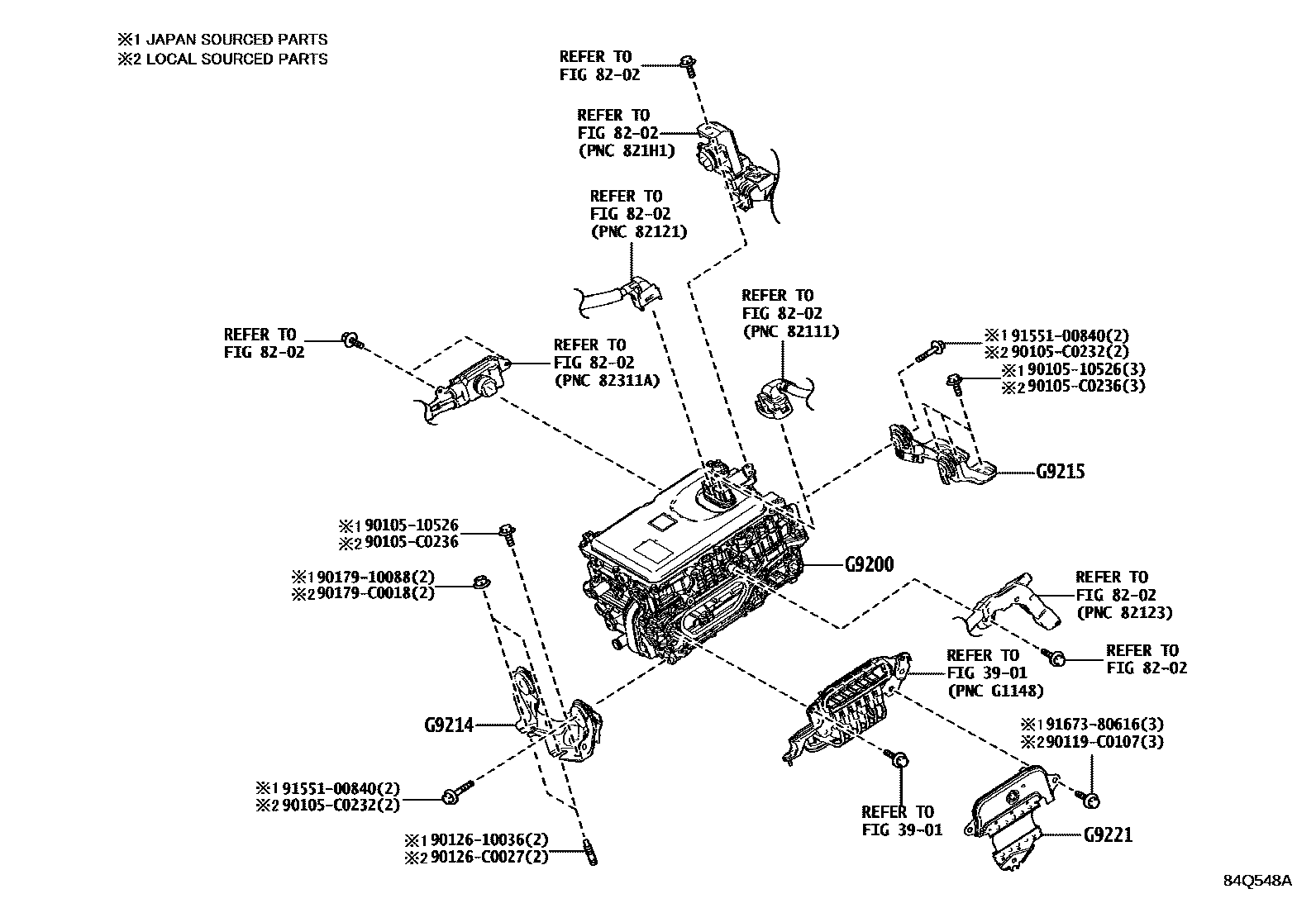

Parts diagram

3901

8202

G9200INVERTER ASSY, W/CONVERTER

mainG92A00A010i202309

G9214BRACKET, INVERTER, NO.1

mainG92140A010i202309

(L)

mainG921463010i202309

(J)

G9215BRACKET, INVERTER, NO.2

mainG92150A010i202309

(L)

mainG921563010i202309

(J)

G9221COVER, INVERTER

mainG902202020i202309

(L)

mainG902228030i202309

(J)

9010510526

main90105-10526¥100

90105C0232

main90105-C0232

90105C0236

main90105-C0236

90119C0107

main90119-C0107

9012610036

main90126-10036¥100

90126C0027

main90126-C0027

9017910088

main90179-10088¥100

90179C0018

main90179-C0018

9155100840

main91551-00840¥80

9167380616

main91673-80616¥60

16 parts on this diagram · 1 diagram in section
