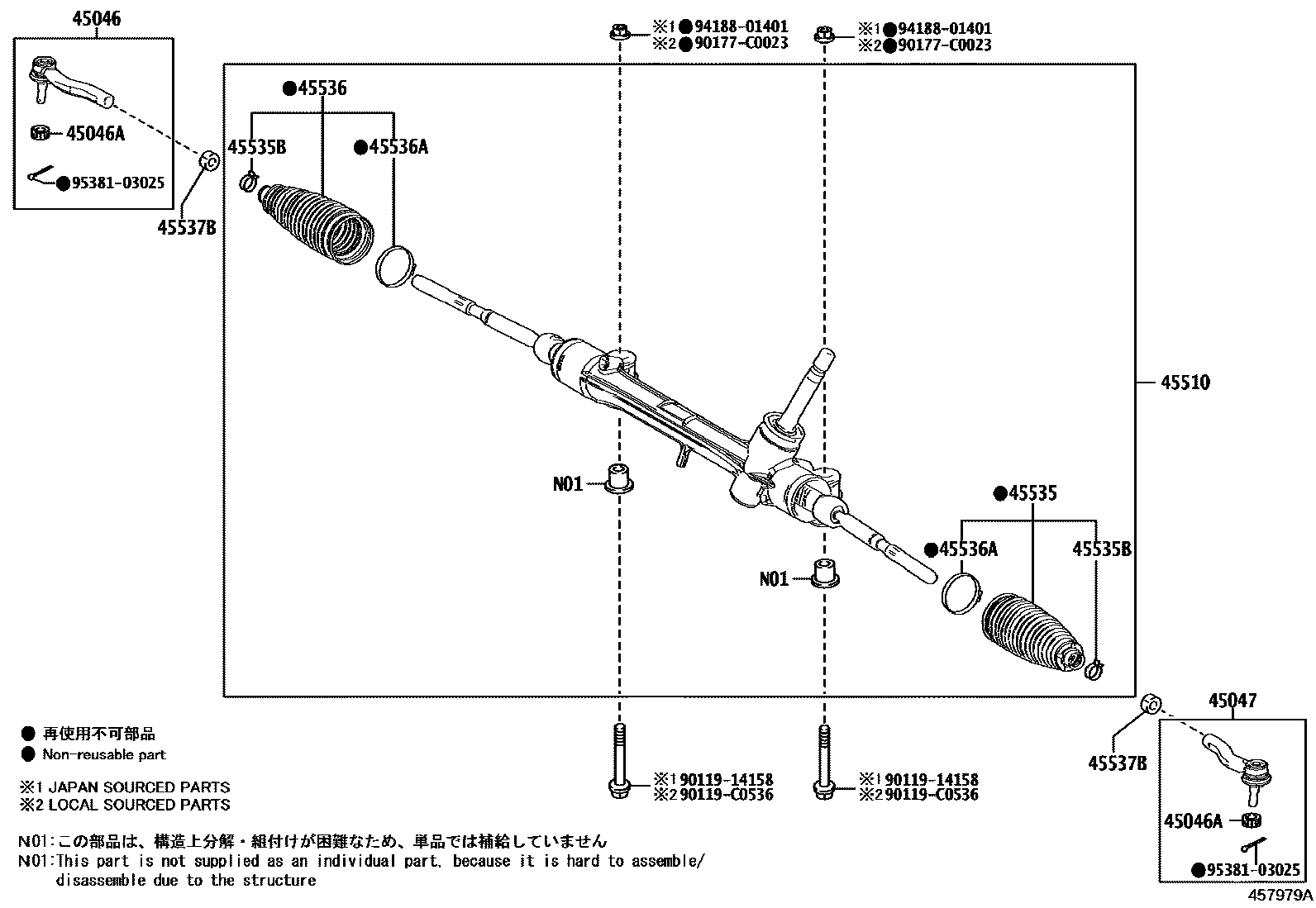

Toyota ALLION — FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49265iMZEA12202104-202304

main45046-49265iMZEA12,MZEH16202305

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMZEA12,MZEH16¥130202305

(J)

main90171-12028iMZEA12¥130202104-202304

(J)

main90171-C0001iMZEA12202104-202304

(L)

main90171-C0001iMZEA12,MZEH16202305

(L)

45047END SUB-ASSY, TIE ROD, LH

main45047-49205iMZEA12202104-202304

main45047-49205iMZEA12,MZEH16202305

45510GEAR ASSY, STEERING

main45510-02810iMZEA12,MZEH16..E,G202305

main45510-02810iMZEA12..G202104-202304

LEATHER PACKAGE

main45510-02820iMZEA12..E,N202104-202304

main45510-02820iMZEA12,MZEH16..N202305

45535BOOT, STEERING RACK, NO.1

main45535-59105iMZEA12202104-202304

main45535-59105iMZEA12,MZEH16202305

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030iMZEA12202104-202304

main45537-0D030iMZEA12,MZEH16202305

45536BOOT, STEERING RACK, NO.2

main45535-59105iMZEA12202104-202304

main45535-59105iMZEA12,MZEH16202305

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D070iMZEA12202104-202304

main45538-0D070iMZEA12,MZEH16202305

45537BNUT, RACK END LOCK

main90178-C0015iMZEA12202104-202304

main90178-C0015iMZEA12,MZEH16202305

9011914158

main90119-14158¥430

90119C0536

main90119-C0536

90177C0023

main90177-C0023

9418801401

main94188-01401¥190

9538103025

main95381-03025¥130

14 parts on this diagram · 1 diagram in section
