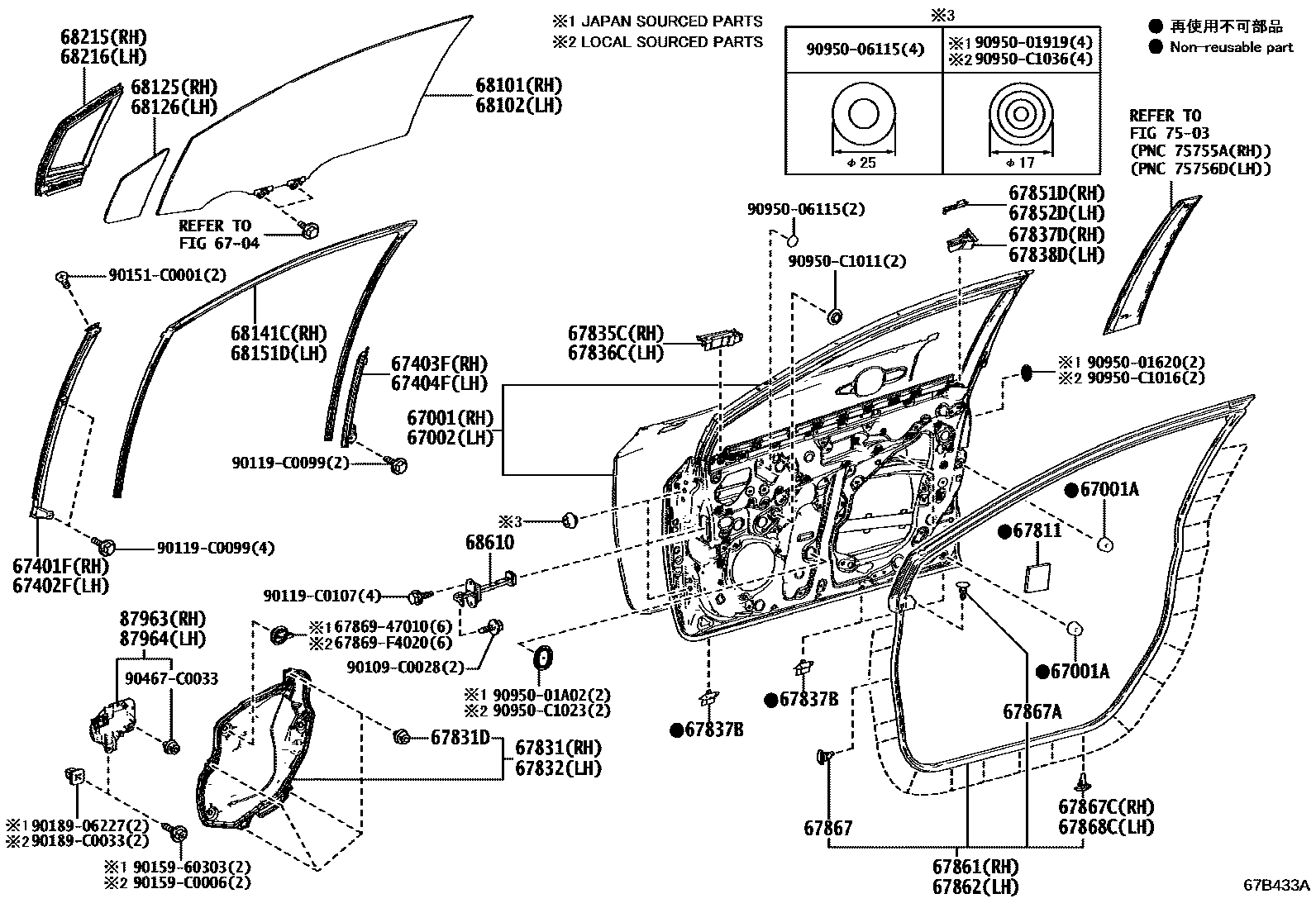

Toyota ALLION — FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
(J)
(J)
(L)
(L)
67002PANEL SUB-ASSY, FRONT DOOR, LH
6704
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67811PAD, FRONT DOOR SILENCER
120 X 60
120 X 70
67831COVER, FRONT DOOR SERVICE HOLE, RH
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH
67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH
67837BSEAL, FRONT DOOR DUST PROOF
(L)
(L)
(J)
(J)
67837DSEAL, FRONT DOOR VENT, RH
67838DSEAL, FRONT DOOR VENT, LH
67851DSEAL, FRONT DOOR REAR OUTSIDE, RH
67852DSEAL, FRONT DOOR REAR OUTSIDE, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CLIP, DOOR WEATHERSTRIP
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68125GLASS, FRONT DOOR FIX WINDOW, RH
68126GLASS, FRONT DOOR FIX WINDOW, LH
68141CRUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
7503
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
67869F4020PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-F4020
90109C0028
main90109-C0028
90119C0099
main90119-C0099
90119C0107
main90119-C0107
90151C0001
main90151-C0001
9015960303
90159C0006
main90159-C0006
9018906227
90189C0033
main90189-C0033
90467C0033
main90467-C0033
9095001620
9095001919
9095001A02
9095006115
90950C1011
main90950-C1011
90950C1016
main90950-C1016
90950C1023
main90950-C1023
90950C1036
main90950-C1036
56 parts on this diagram · 2 diagrams in section
