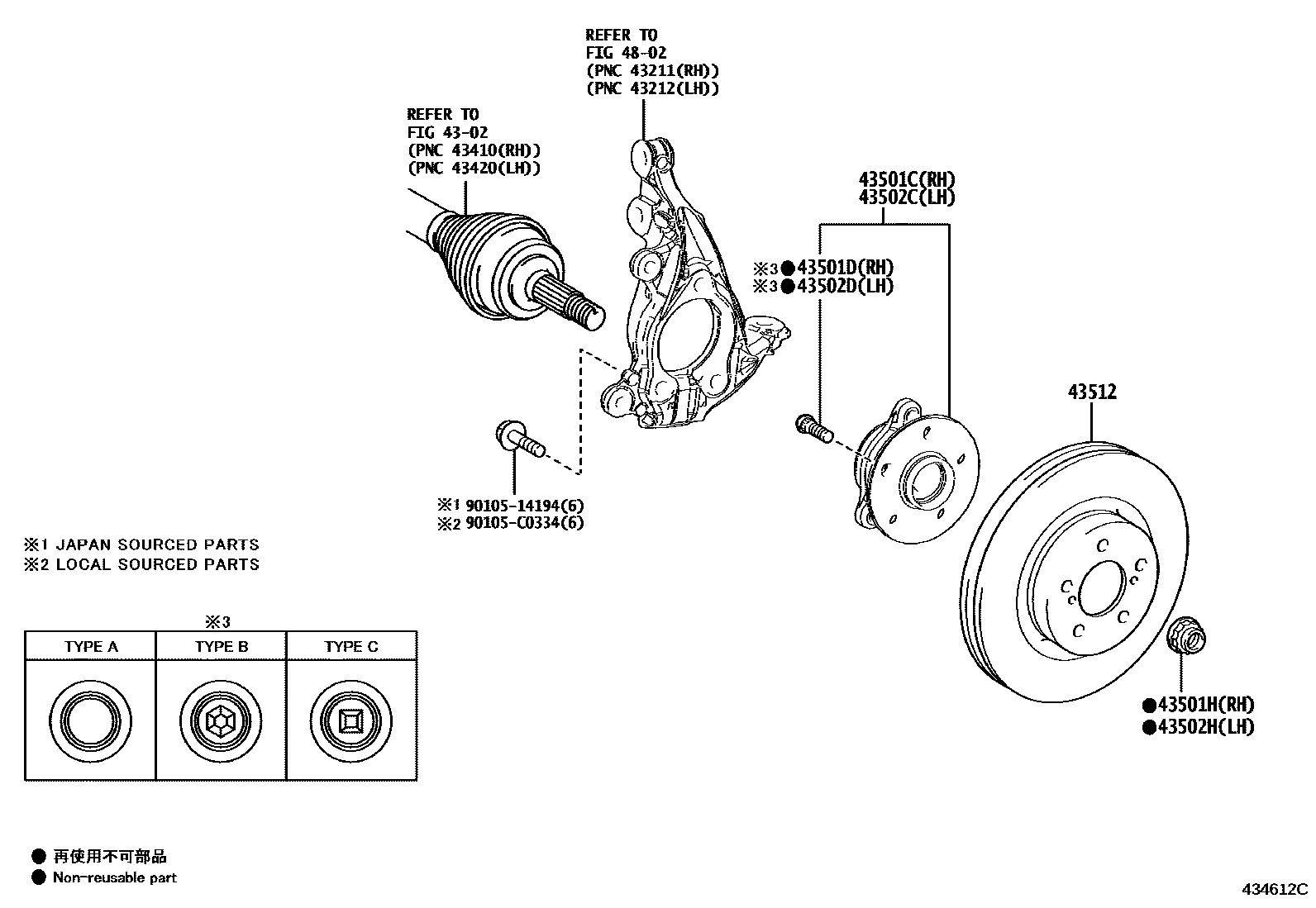

Toyota ALLION — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-F4031iMZEA12,MZEH16202104-202304

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iMZEA12,MZEH16¥240202104-202304

TYPE A:REFER ILLUST.

main90942-02081iMZEA12,MZEH16¥240202104-202304

TYPE B:REFER ILLUST.

main90942-02082iMZEA12¥240202104-202304

TYPE C:REFER ILLUST.

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iMZEA12¥220202104-202304

(J)

main90177-C0004iMZEA12202104-202304

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-F4031iMZEA12,MZEH16202104-202304

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iMZEA12¥240202104-202304

TYPE A:REFER ILLUST.

main90942-02081iMZEA12¥240202104-202304

TYPE B:REFER ILLUST.

main90942-02082iMZEA12¥240202104-202304

TYPE C:REFER ILLUST.

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMZEA12¥220202104-202304

(J)

main90177-C0004iMZEA12,MZEH16202104-202304

(L)

43512DISC, FRONT

main43512-02440iMZEA12,MZEH16202104-202304

4802

9010514194

main90105-14194¥240

90105C0334

main90105-C0334

11 parts on this diagram · 1 diagram in section
