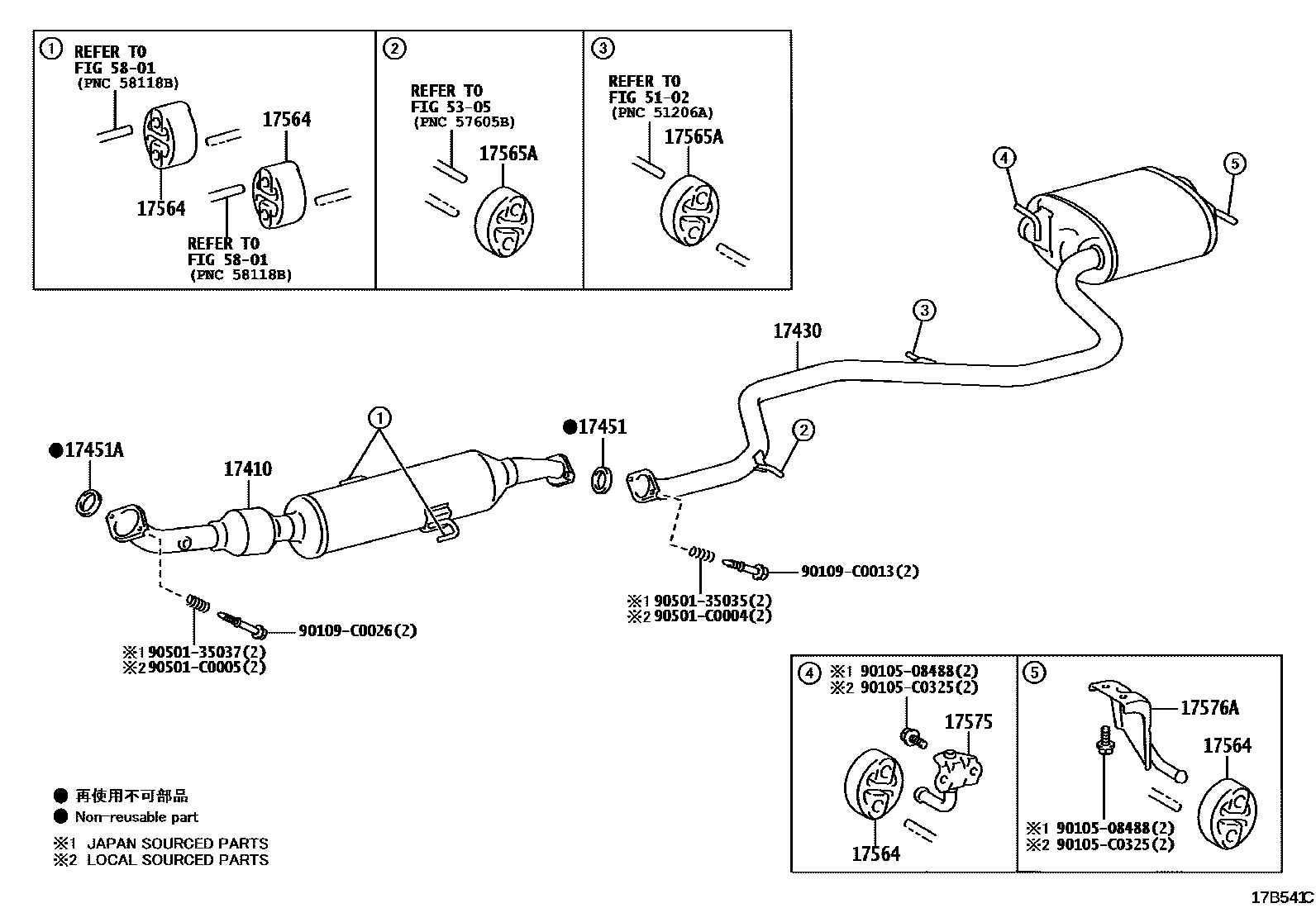

Toyota ALLION — EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-F2060iM20..MZEA12202104-202304

main17410-F2660iM20..MZEH16202309

17430PIPE ASSY, EXHAUST, TAIL

main17430-F2240iM20..MZEA12202104-202304

main17430-F2380iM20..MZEH16202309

17451GASKET, EXHAUST PIPE

main17451-0T031iM20..MZEA12202104-202304

main17451-0T080iM20..MZEH16202309

17451AGASKET, EXHAUST PIPE, NO.2

main17451-0T010iM20..MZEA12202104-202304

main17451-0T050iM20..MZEH16202309

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0T011iM20..MZEA12202104-202304

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D080iM20..MZEA12202104-202304

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-0T150iM20..MZEA12202104-202304

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-0T100iM20..MZEA12202104-202304

5102

5305

5801

9010508488

main90105-08488¥80

90105C0325

main90105-C0325

90109C0013

main90109-C0013

90109C0026

main90109-C0026

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

90501C0004

main90501-C0004

90501C0005

main90501-C0005

19 parts on this diagram · 2 diagrams in section
