Toyota ALLION — ENGINE OVERHAUL GASKET KIT

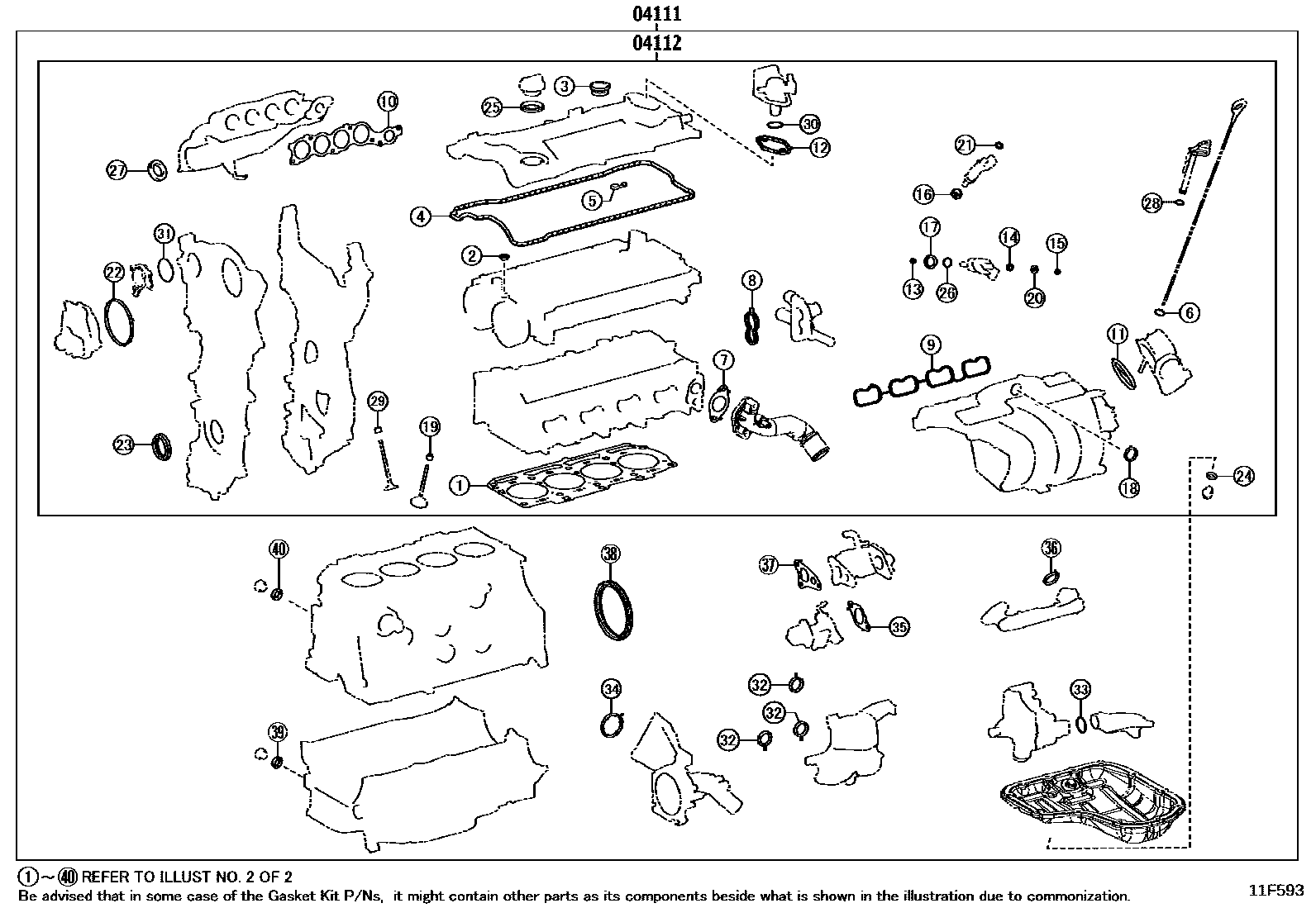

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-24200i¥21,100202305
*632
main04111-F2110i202305-202410
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
sub04111-F2111
main04111-F2110i202305-202410
*633
sub04111-F2111
main04111-F2111i202410
*633
main04111-F2111i202410
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
main04111-F2130i202104-202110
sub04111-F2131
main04111-F2131i202110-202304
main04111-F2250i202309
04112GASKET KIT, ENGINE VALVE GRIND
main04112-24120i202305
*632
main04112-F2100i202305-202410
*633
sub04112-F2101
main04112-F2100i202305-202410
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
sub04112-F2101
main04112-F2101i202410
ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)
main04112-F2101i202410
*633
main04112-F2120i202104-202110
sub04112-F2121
main04112-F2121i202110-202304
main04112-F2230i202309

2 parts on this diagram · 4 diagrams in section
