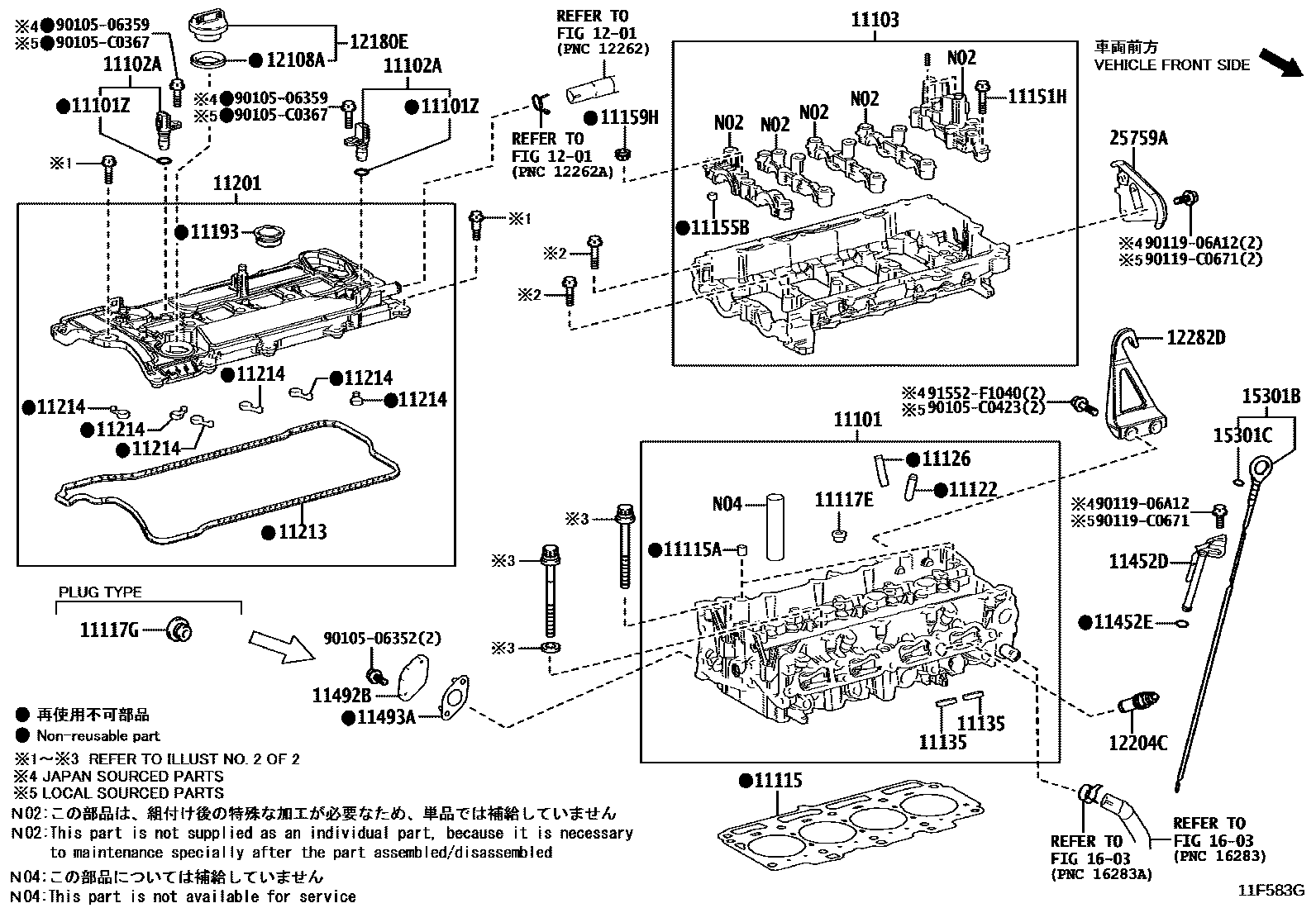

Toyota ALLION — CYLINDER HEAD
11101ZO RING, CAM POSITION SENSOR
*633,*632
11102ASENSOR, CAMSHAFT POSITION
(J)
*632
*633,*632
*633
(L)
11103HOUSING SUB-ASSY, CAMSHAFT
*632
(J)
*633
*633
(L)
11115GASKET, CYLINDER HEAD
*632
*633
11115APIN, RING
*632
*633
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*632
*633
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
*632
*633,*632
11122BUSH, INTAKE VALVE GUIDE
STD,*633,*632
STD,*633
STD
STD,*632
O/S 0.05,*632
O/S 0.05
O/S 0.05,*633
O/S 0.05,*633,*632
11126BUSH, EXHAUST VALVE GUIDE
STD,*633
STD
O/S 0.05,*633
O/S 0.05
O/S 0.05,*632
11135SEAT, EXHAUST VALVE
STD,*632
STD,*633
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
*632
(J)
(J),*633
(J),*633,*632
(L)
(L),*633
11155BPIN, RING
*633
*632
(J),*633
(J),*633,*632
(J)
(L),*633
(L)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
*632
*633
11193GASKET, SPARK PLUG TUBE
*632
(J),*633
*633
(L),*633
11201COVER SUB-ASSY, CYLINDER HEAD
*632
(J),*633
*633
(L),*633
11213GASKET, CYLINDER HEAD COVER
(J),*633
*633
*632
*633
(L),*633
11214GASKET, CYLINDER HEAD COVER, NO.2
*633,*632
*633
11452DGUIDE, OIL LEVEL GAGE
*632
*633
11452ERING, O(FOR OIL LEVEL GAGE GUIDE)
(L),*633
*632
(J),*633
*633
11492BPLATE, WATER SEAL
*632
*633
(J),*633
(L),*633
11493AGASKET, WATER SEAL PLATE
*632
*633
1201
12108AGASKET(FOR OIL FILLER CAP)
*633,*632
*632
*633
12180ECAP ASSY, OIL FILLER
*633
*632
12204CVALVE SUB-ASSY, VENTILATION
*632
*633
12282DHANGER, ENGINE, NO.2
*632
*633
15301BGAGE SUB-ASSY, OIL LEVEL
*632
*633
15301CRING, O(FOR OIL LEVEL GAGE)
(L),*633
*632
(J),*633
*633
1603
25759ABRACKET, VACUUM SURGE TANK
*632
*633
9010506352
9010506359
90105C0367
main90105-C0367
90105C0423
main90105-C0423
9011906A12
90119C0671
main90119-C0671
91552F1040
38 parts on this diagram · 3 diagrams in section
