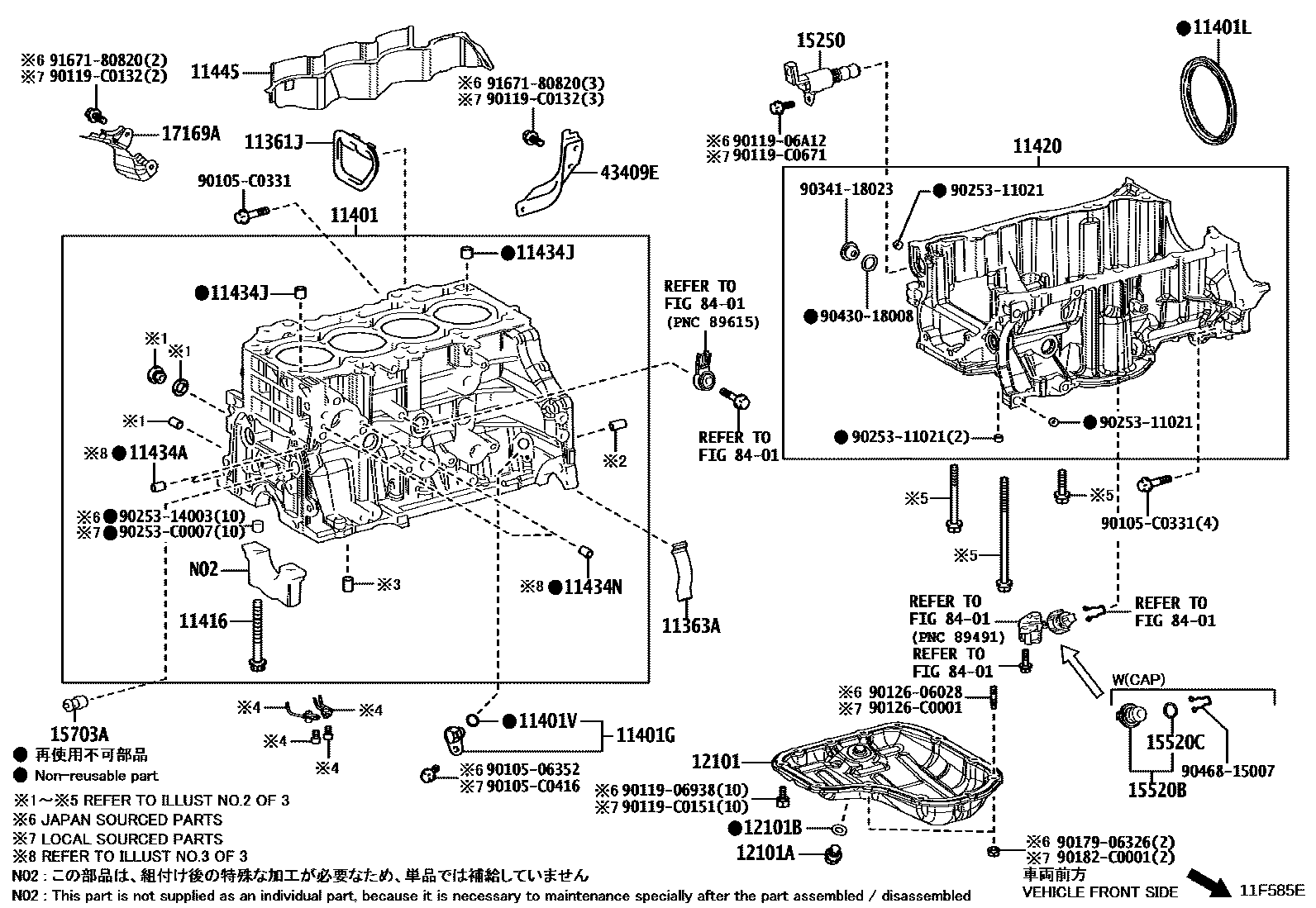

Toyota ALLION — CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
*632
*633
11401GSENSOR, CRANK POSITION
*633,*632
*633
*632
(J),*633
(J)
(L),*633
(L)
11401LSEAL, ENGINE REAR OIL
*632
*633
11401VO-RING, CRANK POSITION SENSOR
*633,*632
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
*633
*632
*633,*632
11420CRANKCASE ASSY, STIFFENING
*632
*633
*633
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=14,OD=6,*632
L=14,OD=6,*633,*632
L=14,OD=6,*633T/P A:REF.ILLUST
L=14,OD=6,*633T/P B:REF.ILLUST
11434JPIN, RING (FOR CYLINDER HEAD SET)
*632
(J),*633
*633,*632
(L),*633
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
*633T/P A:REF.ILLUST
*633,*632
*632
*633T/P B:REF.ILLUST
11445SPACER, CYLINDER BLOCK WATER JACKET
*632
*633
12101PAN SUB-ASSY, OIL
*632
*633
12101APLUG(FOR OIL PAN DRAIN)
*632
*633
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*632
*633
15250VALVE ASSY, OIL PRESSURE CONTROL
(J),*633
*633
*632
(L),*633
15520BCAP ASSY, CRANKCASE
*633
*632
15520CRING, O (FOR CRANKCASE CAP)
*633
*632
15703AVALVE SUB-ASSY, OIL NOZZLE
*632
*633
(J),*633
(L),*633
17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3
*632
(J),*633
(J),*633,*632
(L),*633
43409EINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
8401
9010506352
90105C0331
main90105-C0331
90105C0416
main90105-C0416
9011906938
9011906A12
90119C0132
main90119-C0132
90119C0151
main90119-C0151
90119C0671
main90119-C0671
9012606028
90126C0001
main90126-C0001
9017906326
90182C0001
main90182-C0001
9025311021
9025314003
90253C0007
main90253-C0007
9034118023
9043018008
9046815007
9167180820
41 parts on this diagram · 4 diagrams in section
