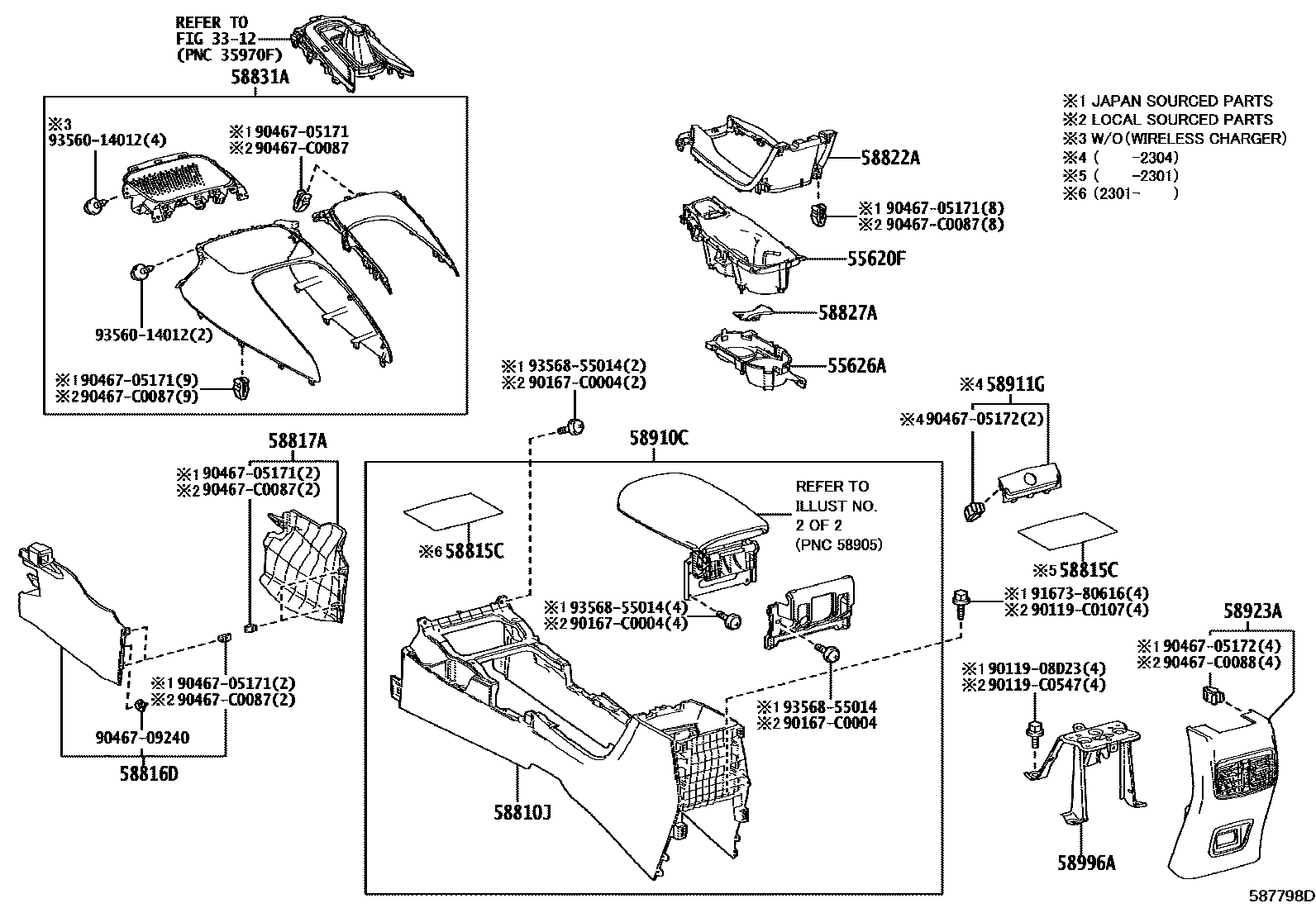

Toyota ALLION — CONSOLE BOX & BRACKET

0001 1 0002 1CONSOLE COMPARTMENT DOOR 0003 1CONSOLE COMPARTMENT DOOR,SLID

3312

55620FHOLDER ASSY, CONSOLE BOX CUP

main55620-02510iMZEA12,MZEH16..E,G202305

main55620-02610iMZEA12,MZEH16..N202305

main55620-02610iMZEA12202104-202304

55626ARETAINER, INSTRUMENT PANEL UNDER TRAY WALL

main55626-02270iMZEA12202104-202304

main55626-02270iMZEA12,MZEH16..N202305

main55626-02320iMZEA12,MZEH16..E,G202305

58810JBOX ASSY, CONSOLE

main58810-02110-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#

main58810-02110-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#,4#

main58810-02130-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

58815CCARPET, CONSOLE BOX

main58815-02490iMZEA12,MZEH16202305

main58815-02510iMZEA12202104-202304

58816DINSERT, CONSOLE BOX, FRONT NO.1

main58816-02470-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main58816-02470-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main58816-02470-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-02480-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main58817-02480-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

main58817-02480-C0iMZEA12,MZEH16202305

BLACK,TRIM2#,8#

58822APANEL, CONSOLE, UPPER REAR

main58822-02520iMZEA12202104-202304

main58822-02520iMZEA12,MZEH16..N202305

main58822-02600iMZEA12,MZEH16..E,G202305

58827AGARNISH, CONSOLE BOX POCKET

main58827-02110iMZEA12..E,G202104-202304

main58827-02110iMZEA12..N202104-202207

main58827-02280iMZEA12,MZEH16..E,G202305

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-02450-C1iMZEA12..N202305

BLACK,TRIM2#,8#

main58831-02450-C1iMZEA12..N202104-202304

BLACK,TRIM2#

main58831-02500-C2iMZEA12..E202104-202304

BLACK,TRIM2#

main58831-02500-C3iMZEA12..E202104-202304

BLACK/TAUPE/LT.GRAY,TRIM4#

main58831-02510-C2iMZEA12..G202104-202304

BLACK,TRIM2#

main58831-02510-C2iMZEA12..G202104-202304

LEATHER PACKAGE,BLACK,TRIM2#

main58831-02510-C3iMZEA12..E202104-202304

LEATHER PACKAGE,BLACK/TAUPE/LT.GRAY,TRIM4#

main58831-02510-C3iMZEA12..G202104-202304

BLACK/TAUPE/LT.GRAY,TRIM4#

main58831-02600-C0iMZEH16..N202309

BLACK,TRIM2#,8#

main58831-02610-C5iMZEH16..E,G202309

BLACK,TRIM2#,8#

main58831-02650-C2iMZEA12..E202305

BLACK,TRIM2#,8#

main58831-02660-C2iMZEA12..E202305

BLACK,TRIM2#,8#

main58831-02660-C2iMZEA12..E202305

LEATHER PACKAGE,BLACK,TRIM2#,8#

58910CBOX ASSY, CONSOLE, REAR

main58910-02B70-C1iMZEA12..N202104-202212

ORCHID BROWN,TRIM2#

main58910-02B71-C1iMZEA12..N202301-202304

BLACK,TRIM2#

main58910-02B80-C0iMZEA12..E,G202104-202212

BLACK,TRIM2#

main58910-02B80-C3iMZEA12..E,G202104-202212

BLACK,TRIM4#

main58910-02B81-C0iMZEA12..E,G202301-202304

BLACK,TRIM2#

main58910-02B81-C3iMZEA12..E,G202301-202304

DARK CHESTNUT,TRIM4#

main58910-02C30-C0iMZEA12,MZEH16..N202305

BLACK,TRIM2#

main58910-02C30-C1iMZEA12,MZEH16..N202305

BLACK,TRIM8#

main58910-02C40-C0iMZEA12,MZEH16..E,G202305

BLACK/DK.NAVY/LT.GRAY,TRIM8#

main58910-02C40-C1iMZEA12,MZEH16..E,G202305

BLACK/BLACK/LT.GRAY,TRIM2#

58911GPANEL, BOX, NO.1

main58911-02670-C0iMZEA12..N202104-202304

BLACK,TRIM2#

main58911-02670-C0iMZEA12..N202104-202304

BLACK,TRIM2#,4#

58923APANEL, CONSOLE REAR END

main58923-02470-C0iMZEA12..N202207-202304

BLACK,TRIM2#

main58923-02470-C0iMZEA12..N202305

BLACK,TRIM2#,8#

main58923-02570-C0iMZEA12..N202104-202207

BLACK,TRIM2#

main58923-02570-C0iMZEA12..E,G202104-202304

BLACK,TRIM2#,4#

main58923-02730-C0iMZEH16;MZEA12..E,G202305

BLACK,TRIM2#,8#

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-02280iMZEA12202104-202304

main58996-02280iMZEA12,MZEH16202305

9011908D23

main90119-08D23¥60

90119C0107

main90119-C0107

90119C0547

main90119-C0547

90167C0004

main90167-C0004

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

9046709240

main90467-09240¥80

90467C0087

main90467-C0087

90467C0088

main90467-C0088

9167380616

main91673-80616¥60

9356014012

main93560-14012¥70

9356855014

main93568-55014¥70

26 parts on this diagram · 3 diagrams in section
