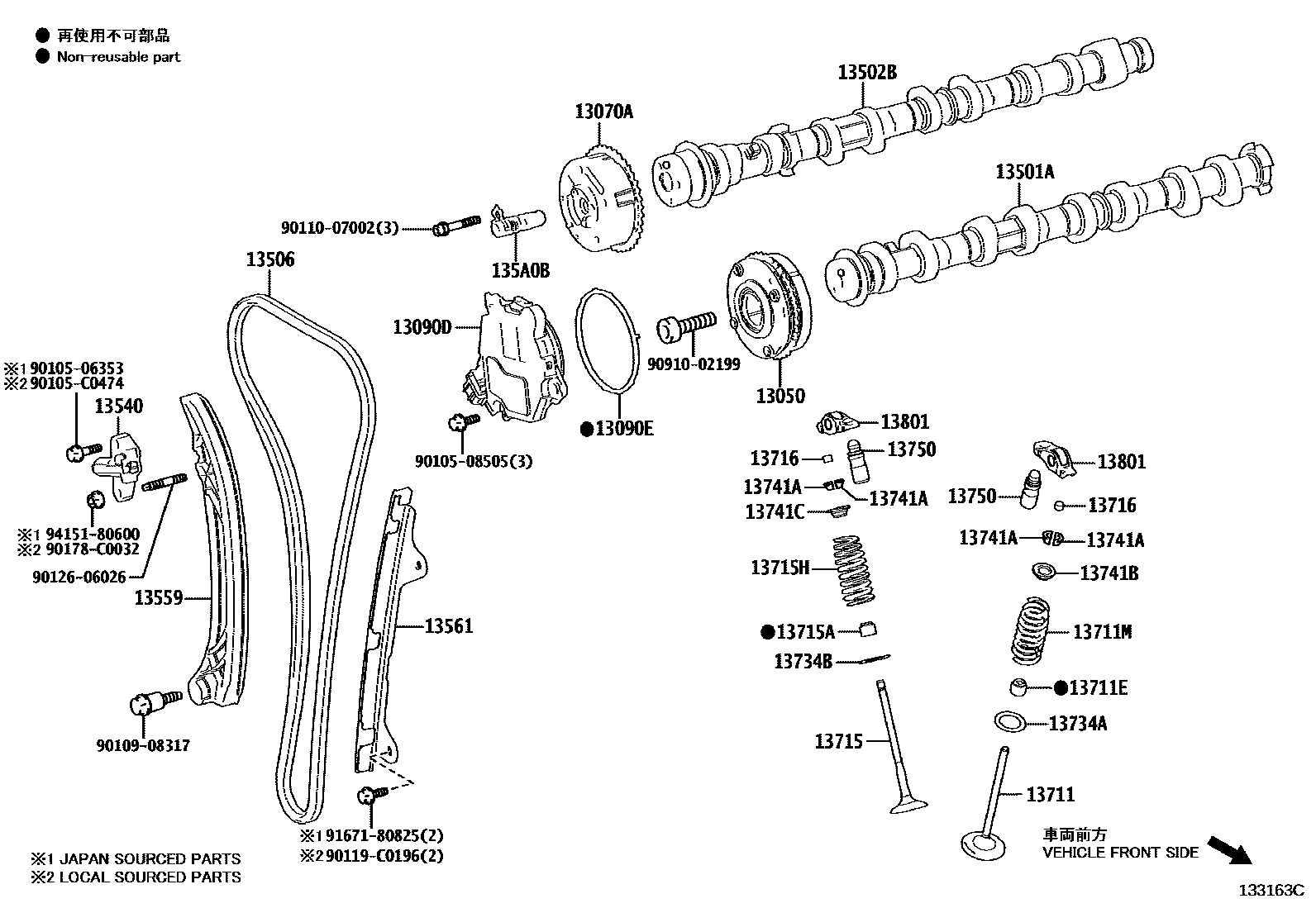

Toyota ALLION — CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
*632
*633,*632
*633
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
*632
*633
*633
13090DMOTOR ASSY, CAM TIMING CONTROL W/EDU
*633
*633,*632
*632
(J),*633
(L),*633
13090ERING, O(FOR CAM TIMING CONTROL MOTOR)
*632
*633
13501ACAMSHAFT SUB-ASSY, INTAKE
*632
(J),*633
(J),*633,*632
(J)
(L),*633
(L)
13502BCAMSHAFT SUB-ASSY, EXHAUST
*632
(J),*633
(J),*633,*632
(J)
(L),*633
(L)
13506CHAIN SUB-ASSY
*632
*633
13540TENSIONER ASSY, CHAIN, NO.1
*632
*633
13559SLIPPER, CHAIN TENSIONER
*632
*633
13561DAMPER, CHAIN VIBRATION, NO.1
*632
*633
135A0BVALVE ASSY, CAMSHAFT TIMING
*632
*633
*633
13711ESEAL, INTAKE VALVE STEM OIL
*632
*633
13711MSPRING, COMPRESSION(FOR INTAKE VALVE)
(J)
*632
*633
(L)
13715VALVE, EXHAUST
*632
*633
13715ASEAL, EXHAUST VALVE STEM OIL
*632
*633
13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)
(J)
*632
*633
(L)
13716CAP, VALVE STEM
*632
*633
13734ASEAT, INTAKE VALVE SPRING
*633
*632
13734BSEAT, EXHAUST VALVE SPRING
*633
*632
13741ALOCK, VALVE SPRING RETAINER
(J)
(J),*633,*632
(L),*633
(L)
13741BRETAINER, INTAKE VALVE SPRING
*633
*632
13741CRETAINER, EXHAUST VALVE SPRING
*633
*632
13750ADJUSTER ASSY, VALVE LASH
*632
*633
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
*632
*633
9010506353
9010508505
90105C0474
main90105-C0474
9010908317
9011007002
90119C0196
main90119-C0196
9012606026
90178C0032
main90178-C0032
9091002199
9167180825
9415180600
36 parts on this diagram · 1 diagram in section
