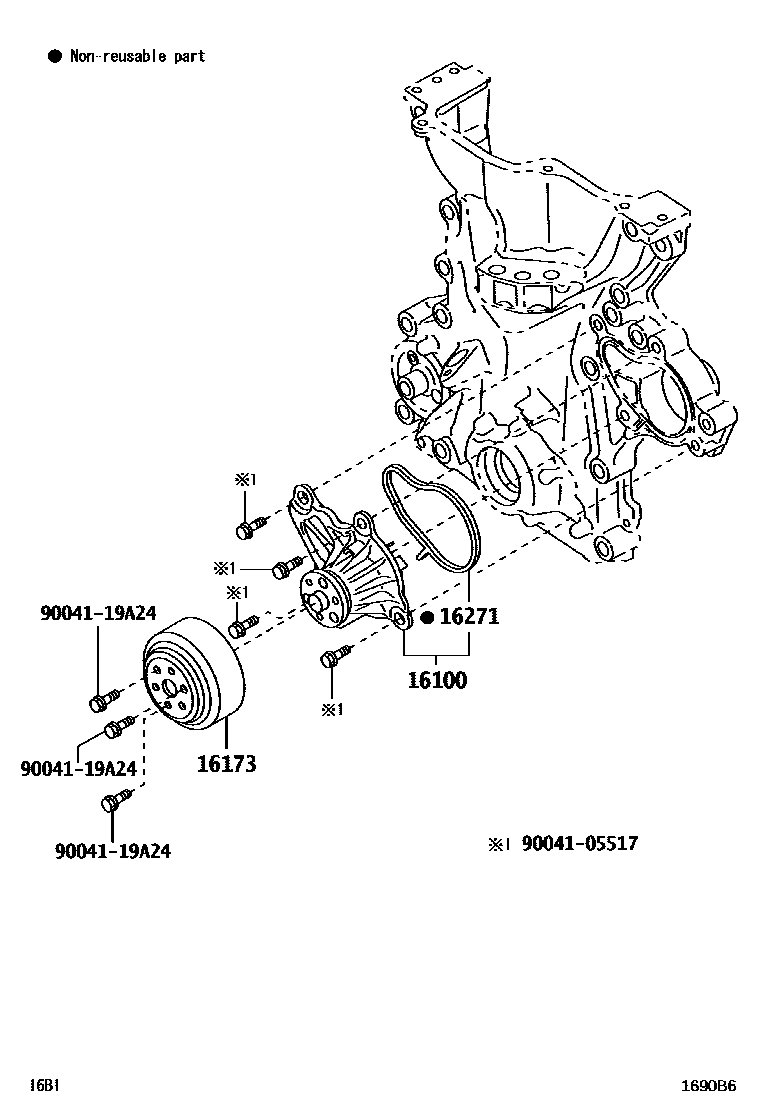

Toyota AGYA/WIGO — WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-B9025i1KRDE..B100201212-201403

sub16100-B9026

sub16173-BZ071

main16100-B9026i1KRDE..B100201403-201606

sub16100-B9027

main16100-B9027i1KRVE..B100201606-202003

main16100-B9490i3NRVE..B101¥8,000201704-202003

16173PULLEY, WATER PUMP

main16173-BZ070i1KRDE..B100201212-201403

main16173-BZ071i1KRDE..B100201403-202003

16271GASKET, WATER PUMP

main16271-0Y030i3NRVE..B101¥650201704-202003

main16271-BZ050i1KRVE..B100201212-202003

9004105517

main90041-05517

9004119A24

main90041-19A24¥170

5 parts on this diagram · 3 diagrams in section
