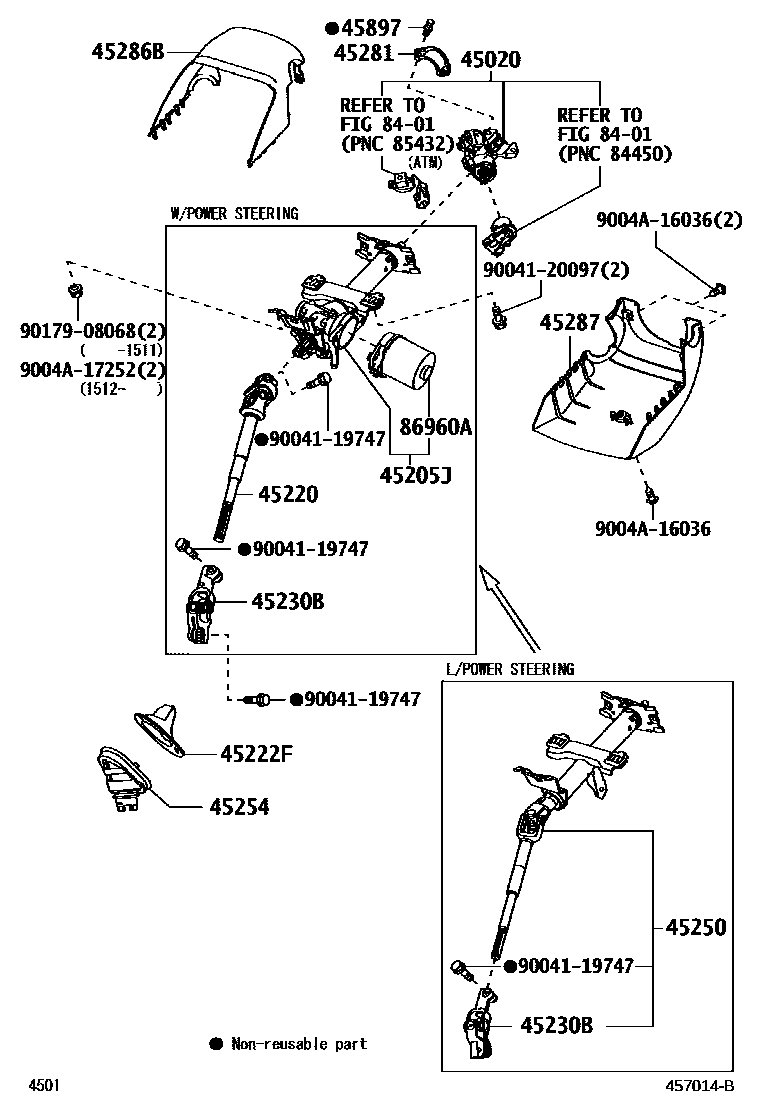

Toyota AGYA/WIGO — STEERING COLUMN & SHAFT
45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH
GENERAL EXP(W/O HEATER)
GENERAL EXP(W/HEATER)
LEBANON
sub45020-BZ151
LEBANON
GENERAL EXP(W/O HEATER)
GENERAL EXP(W/HEATER)
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
AIR CONDITIONER-MANUAL
GENERAL EXP(W/O HEATER)
GENERAL EXP(W/HEATER)
GENERAL EXP(W/HEATER)
LEBANON
45220SHAFT ASSY, STEERING INTERMEDIATE
AIR CONDITIONER-MANUAL
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
AIR CONDITIONER-MANUAL
45250COLUMN ASSY, STEERING
45254SHIELD, STEERING COLUMN HOLE
45281HOUSING, STEERING COLUMN
GENERAL EXP(W/O HEATER)
LEBANON
GENERAL EXP(W/HEATER)
45286BCOVER, STEERING COLUMN, UPR
DK.GRAY,TRIM1#
45287COVER, STEERING COLUMN, LWR
DK.GRAY,TRIM1#
BLACK,TRIM2#
TRD,BLACK,TRIM2#
GENERAL EXP(W/O HEATER),BLACK,TRIM2#
sub45287-BZ330
GENERAL EXP(W/HEATER),BLACK,TRIM2#
sub45287-BZ330
45897BOLT, STEERING LOCK SET
SOUTH AFRICA
TRD
8401
86960AMOTOR SET, POWER STEERING
AIR CONDITIONER-MANUAL
9004119747
9004120097
9004A16036
9004A17252
main9004A-17252
9017908068
18 parts on this diagram · 3 diagrams in section
