Toyota AGYA/WIGO — STANDARD TOOL

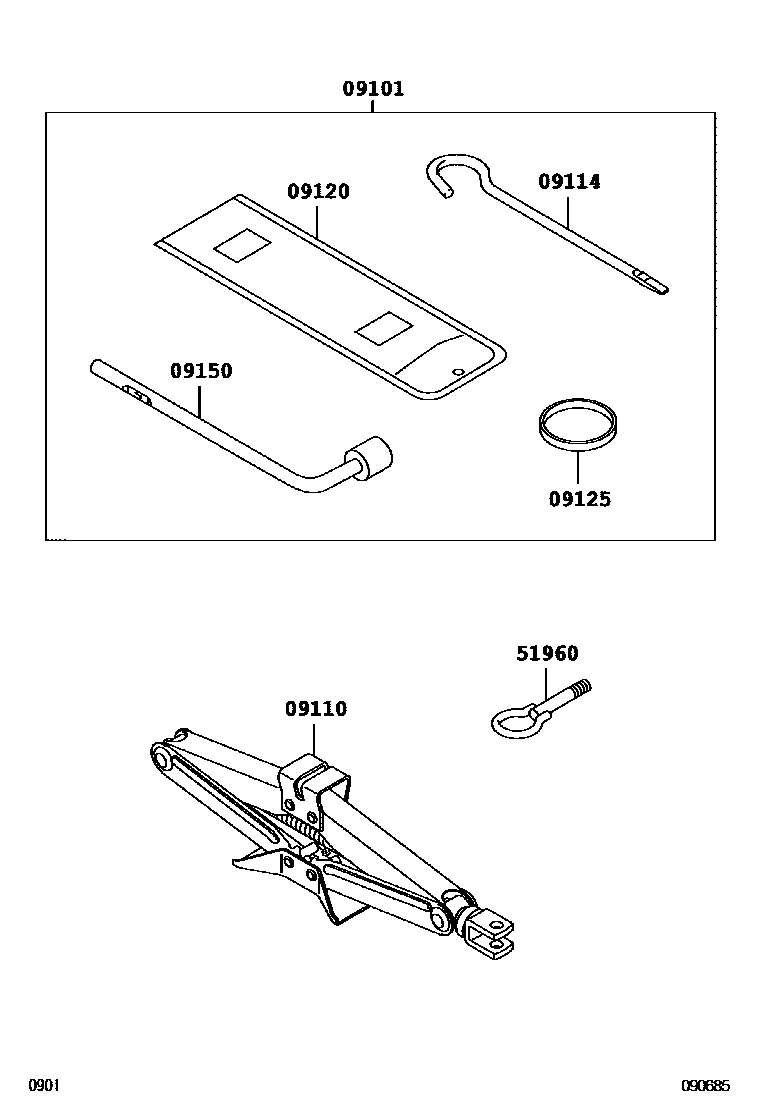

Parts diagram

09101TOOL SET, STANDARD W/O JACK

main09101-BZ030i201212-202003

09110JACK ASSY

main09111-BZ090i201212-202003

09114EXTENSION SUB-ASSY, JACK HANDLE

main09114-BZ060i201212-202003

09120BAG, TOOL

main09120-BZ120i201212-201704

09125BAND, TOOL BAG

main09125-BZ010i¥210201212-201704

09150WRENCH, HUB NUT BOX

main09151-BZ010i201212-202003

51960HOOK ASSY, FRONT

main51960-BZ060i201704-202003

main51960-BZ070i¥1,830201212-201704

7 parts on this diagram · 1 diagram in section
