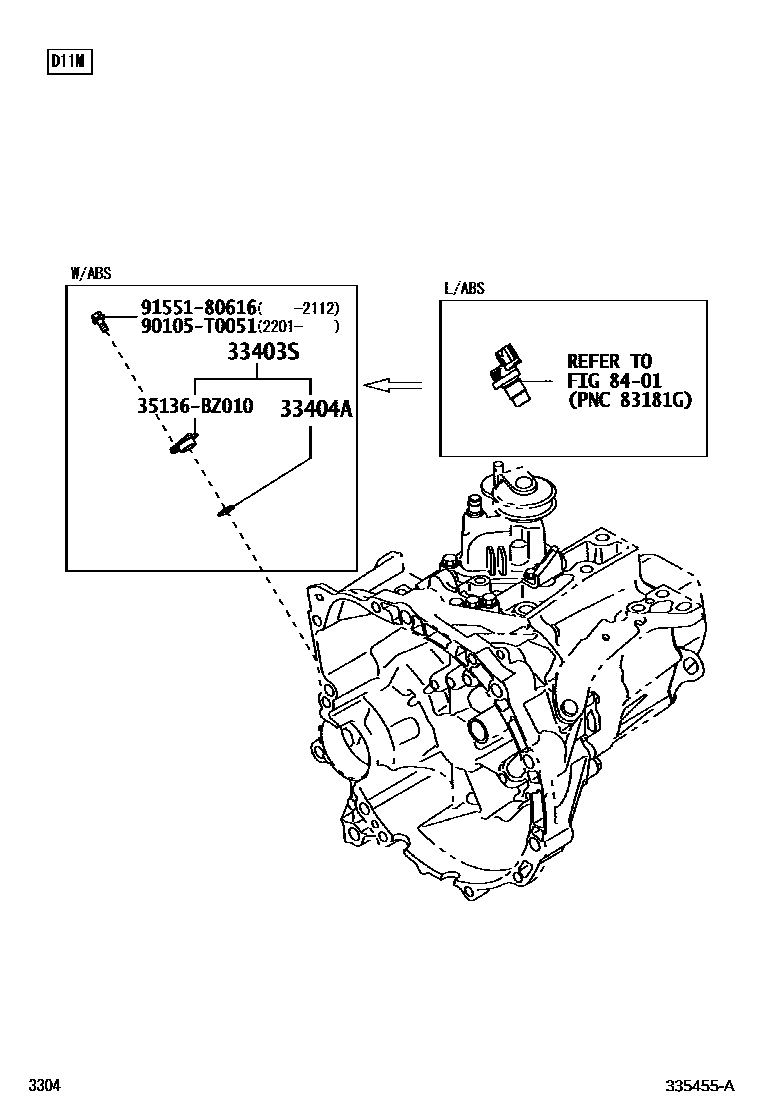

Toyota AGYA/WIGO — SPEEDOMETER DRIVEN GEAR (MTM)

33403SPLUG(FOR MTM SPEEDOMETER DRIVEN HOLE)

main35133-BZ010iB10#..MTM..WIGO201704-202003

W/ABS

main35133-BZ010iB10#..MTM..WIGO202003

ABS

main35133-BZ010iB100..MTM..HI..WIGO201401-201704

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main9004A-30049iB10#..MTM..WIGO201704-202003

W/ABS

main9004A-30049iB10#..MTM..WIGO202003

ABS

main9004A-30049iB100..MTM..HI..WIGO201401-201704

8401

35136BZ010HANGER, TRANSMISSION,NO.1

main35136-BZ010

90105T0051

main90105-T0051

9155180616

main91551-80616¥60

6 parts on this diagram · 1 diagram in section
