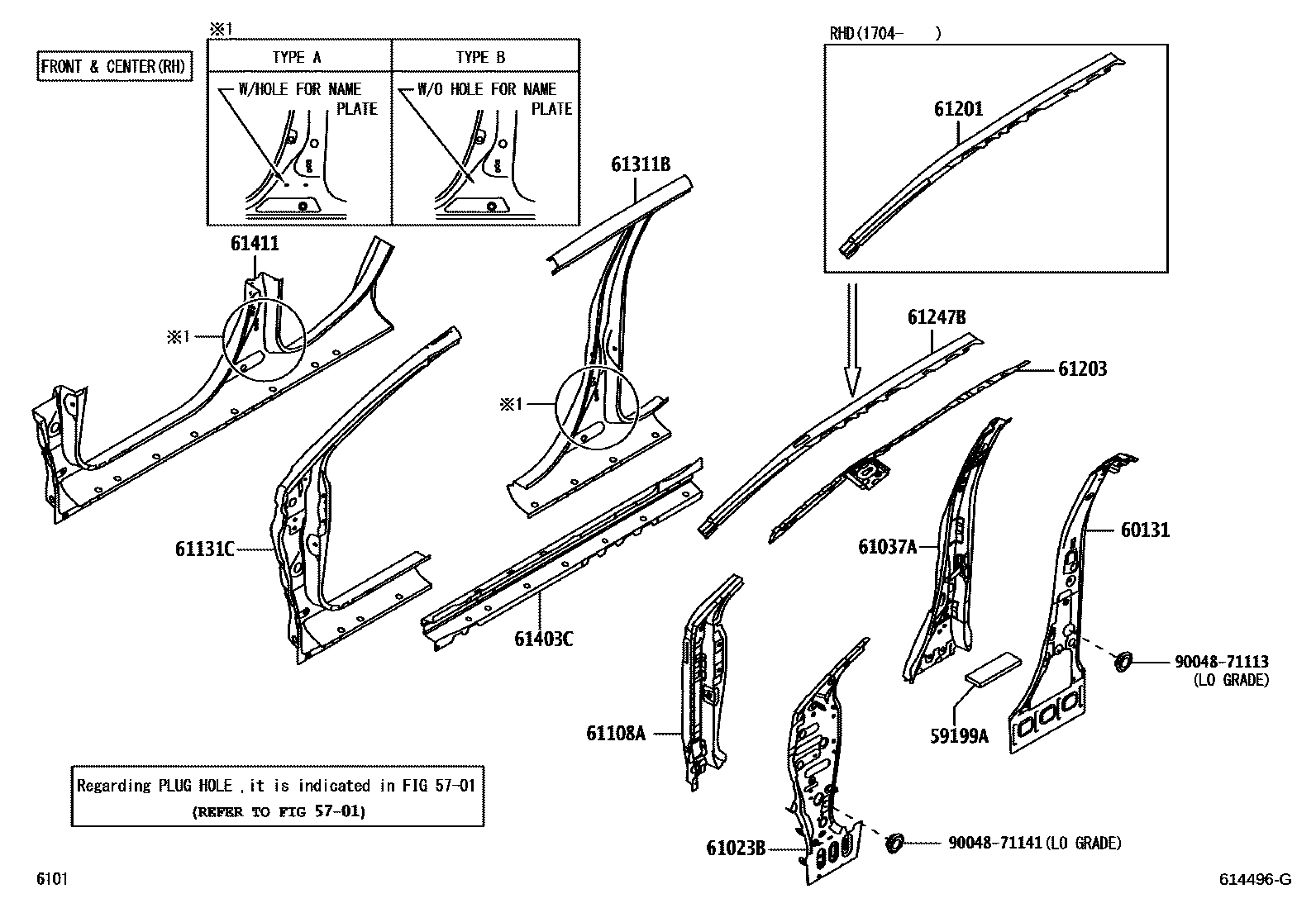

Toyota AGYA/WIGO — SIDE MEMBER

0001 1FRONT & CENTER(RH) 0002 1FRONT & CENTER(LH) 0003 1REAR(RH) 0004 1REAR(LH) 0005 1REAR(LH) 0007 1

5701

59199ASEAL, NOISE SHUTTER, NO.2

main59199-BZ050iB10#201410-202003

60131PILLAR SUB-ASSY, CENTER BODY, NO.2 RH

main60131-BZ070iB10#201212-202003

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-BZ260iB100..AGYA201212-201704

main61023-BZ270iB10#..WIGO201401-202003

main61023-BZ380iB10#..AGYA201704-202003

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-BZ210iB100..AGYA201212-201704

main61037-BZ260iB100..AGYA201410-201704

main61037-BZ290iB10#201704-202003

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-BZ130iB100..AGYA201212-202003

main61108-BZ150iB100..AGYA201410-201704

main61108-BZ220iB10#..AGYA201704-202003

61131CPILLAR, FRONT BODY, OUTER RH

main61131-BZ070iB100..AGYA201212-201704

main61131-BZ080iB100..WIGO201401-201704

main61131-BZ440iB10#..WIGO201704-202003

main61131-BZ450iB10#..AGYA201704-202003

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-BZ090iB10#..AGYA201704-202003

main61247-BZ080iB100..WIGO201704-202003

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-BZ030iB10#201212-202003

61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH

main61201-BZ040iB100..AGYA201410-201704

main61247-BZ080iB100..AGYA201212-202003

61311BPILLAR, CENTER BODY, OUTER RH

main61311-BZ050iB100201212-201704

main61311-BZ310iB10#201704-201906

TYPE A

sub61311-BZ400

main61311-BZ400iB10#201906-202003

TYPE B

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-BZ060iB100201212-201704

main61403-BZ130iB10#201704-202003

61411PANEL, ROCKER, OUTER RH

main61411-BZ180iB100201212-201704

main61411-BZ320iB10#201704-201906

TYPE A

sub61411-BZ420

main61411-BZ420iB10#201906-202003

TYPE B

9004871113

main90048-71113¥80

9004871141

main90048-71141¥280

15 parts on this diagram · 6 diagrams in section
