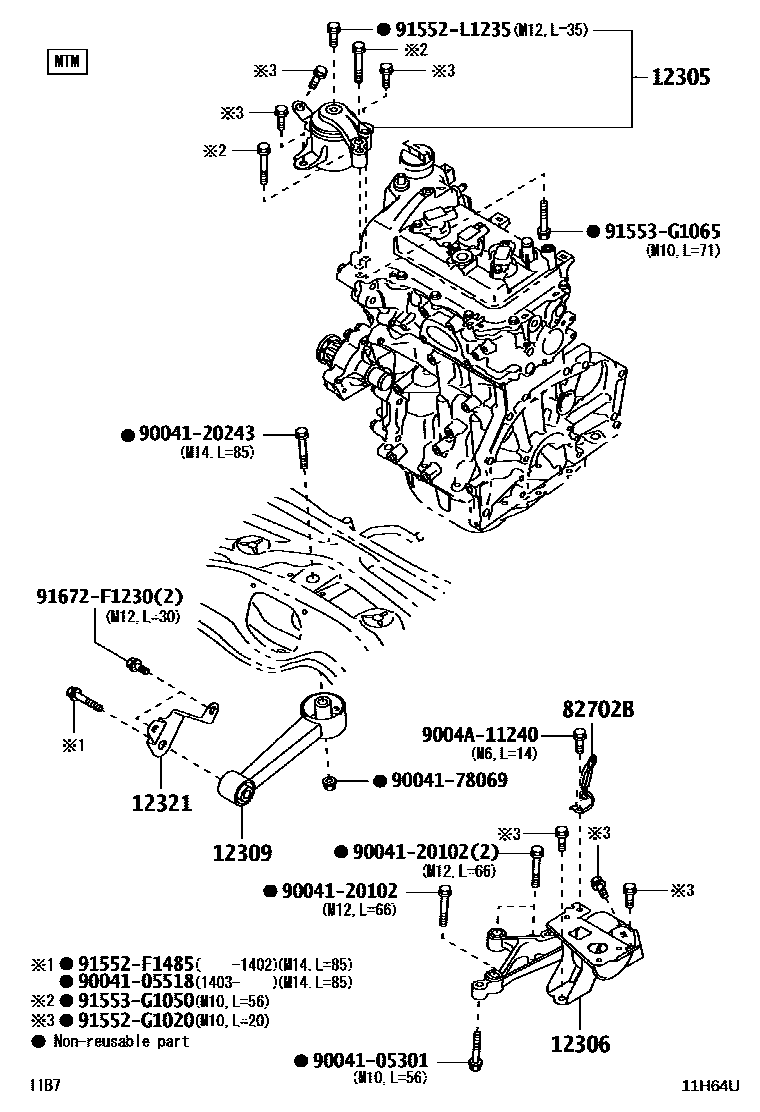

Toyota AGYA/WIGO — MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-BZ100i1KRDE..B100..MTM201212-201501

main12305-BZ110i1KRDE..B100..ATM201212-201501

main12305-BZ130i1KRDE..B100..MTM201501-201504

main12305-BZ131i1KRDE..B100..MTM201504-201704

main12305-BZ140i1KRDE..B100..ATM201501-201504

main12305-BZ141i1KRDE..B100..ATM201504-201704

main12305-BZ150i1KRVE..B100..MTM201704-202003

main12305-BZ161i1KRVE..B100..ATM201704-202003

main12305-BZ170i3NRVE..B101..MTM201704-202003

main12305-BZ180i3NRVE..B101..ATM201704-202003

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-BZ120i1KRDE..B100..MTM201212-201407

sub12306-BZ121

main12306-BZ121i1KRDE..B100..MTM201408-201508

sub12306-BZ122

main12306-BZ122i1KRDE..B100..MTM201509-201612

sub12306-BZ123

main12306-BZ123i1KRDE..B100..MTM201701-201704

main12306-BZ131i1KRDE..B100..ATM201212-201312

main12306-BZ132i1KRDE..B100..ATM201401-201407

sub12306-BZ133

main12306-BZ133i1KRDE..B100..ATM201408-201508

sub12306-BZ134

main12306-BZ134i1KRDE..B100..ATM201509-201612

sub12306-BZ135

main12306-BZ135i1KRDE..B100..ATM201701-201704

main12306-BZ190i1KRVE..B100..ATM201704-202003

main12306-BZ200i3NRVE..B101..MTM201704-202003

main12306-BZ210i3NRVE..B101..ATM201704-202003

main12306-BZ330i1KRVE..B100..MTM201704-202003

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-BZ060i1KRDE..B100..MTM201212-201704

main12309-BZ070i1KRDE..B100..ATM201212-201704

main12309-BZ081i1KRVE..B100..MTM201704-202003

main12309-BZ100i3NRVE..B101..MTM201704-202003

main12309-BZ110i3NRVE..B101..ATM201704-202003

main12309-BZ250i1KRVE..B100..ATM201704-202003

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-BZ180i1KRDE..B100..MTM201212-201605

sub12321-BZ310

main12321-BZ190i1KRDE..B100..ATM201212-201704

main12321-BZ280i3NRVE..B101201704-202003

main12321-BZ310i1KRVE..B100201606-202003

82702BBRACKET SUB-ASSY, WIRING HARNESS

main82702-BZ081iB10#201704-202003

main82715-BZ800iB100201212-201704

9004105301

main90041-05301¥290

9004105518

main90041-05518¥430

9004120102

main90041-20102¥320

9004120243

main90041-20243¥400

9004178069

main90041-78069¥220

9004A11240

main9004A-11240

91552F1485

main91552-F1485

91552G1020

main91552-G1020¥170

91552L1235

main91552-L1235¥310

91553G1050

main91553-G1050¥430

91553G1065

main91553-G1065¥520

91672F1230

main91672-F1230¥190

17 parts on this diagram · 8 diagrams in section
