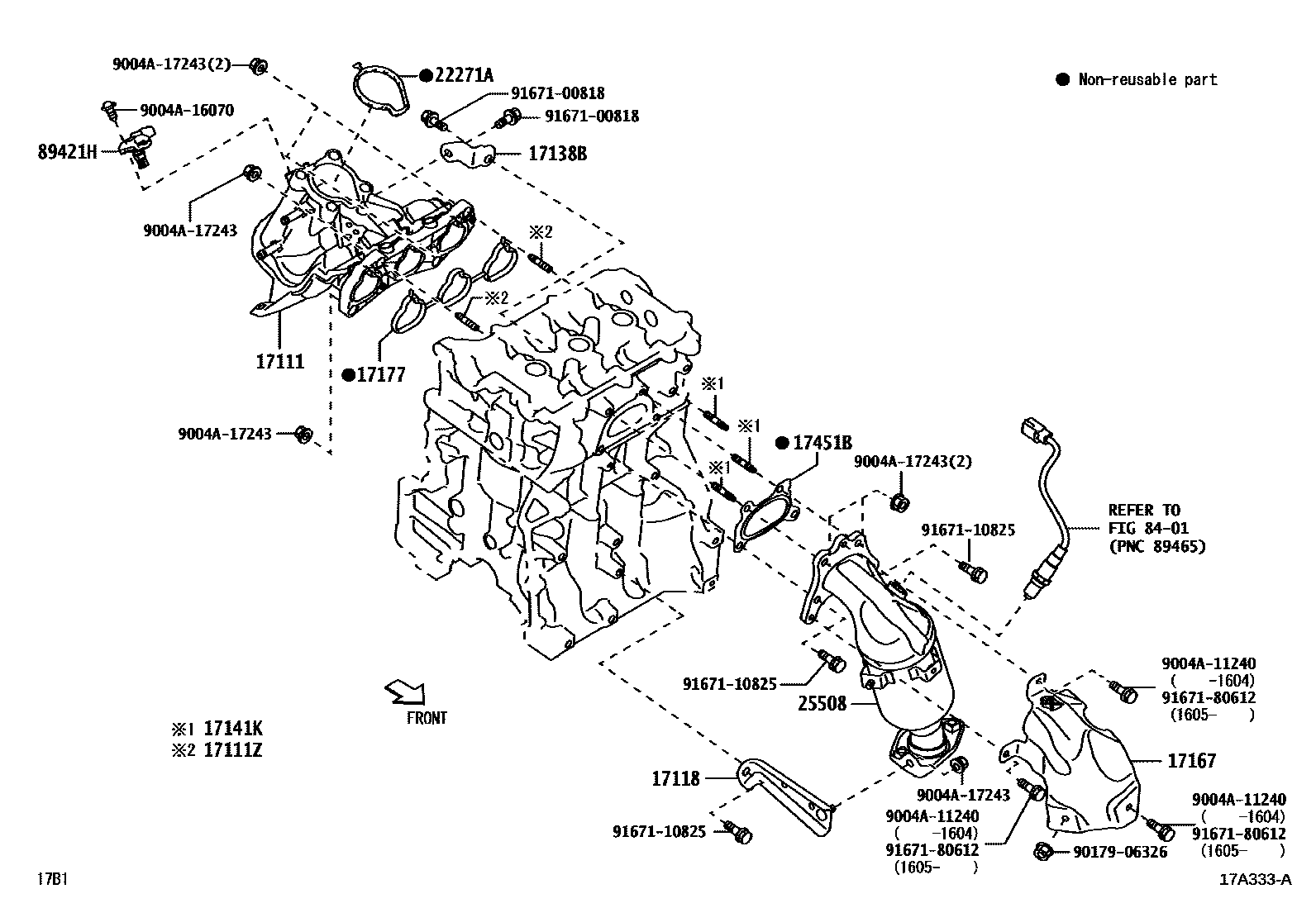

Toyota AGYA/WIGO — MANIFOLD
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17138BSTAY, INTAKE MANIFOLD
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17451BGASKET, EXHAUST PIPE
22271AGASKET, THROTTLE BODY
25508CONVERTER SUB-ASSY, MANIFOLD
ID NO.=BZ050
ID NO.=BZ060
ID NO.=BZ060
ID NO.=BZ060
8401
89421HSENSOR, VACUUM
9004A11240
main9004A-11240
9004A16070
main9004A-16070
9004A17243
main9004A-17243
9017906326
9167100818
9167110825
9167180612
19 parts on this diagram · 3 diagrams in section
