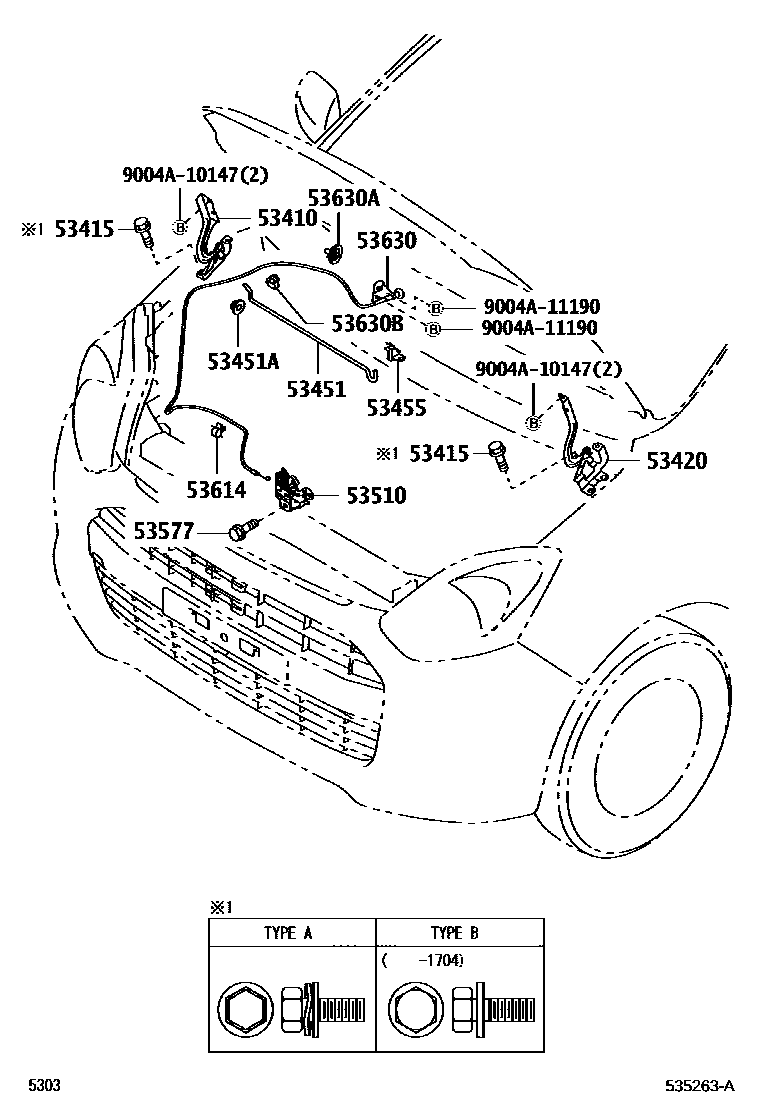

Toyota AGYA/WIGO — HOOD LOCK & HINGE

0001 1 0002 1 0003 1 0004 1

53410HINGE ASSY, HOOD, RH

main53401-BZ050iB10#201212-202003

53415BOLT, HOOD HINGE

main9004A-11217iB10#201704-202003

sub91631-60614¥120

main9004A-11217iB100201212-201704

TYPE A

sub91631-60614¥120

main91631-G0614iB100¥60201212-201704

TYPE B

53420HINGE ASSY, HOOD, LH

main53402-BZ060iB10#201212-202003

53451ROD, HOOD SUPPORT

main53451-BZ070iB100201212-202003

53451AGROMMET(FOR HOOD SUPPORT ROD)

main9004A-48054iB10#¥100201212-202003

53455CLAMP, HOOD SUPPORT ROD

main53455-BZ100iB10#201212-202003

53510LOCK ASSY, HOOD

main53510-BZ210iB10#..AGYA201212-202003

main53510-BZ220iB10#..WIGO201401-202003

53577BOLT, HOOD LOCK

main9004A-11253iB10#¥110201212-202003

53614CLAMP, HOOD LOCK CONTROL CABLE

main90467-09043iB10#..WIGO¥160201212-202003

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-BZ070iB100..AGYA201212-202003

main53630-BZ180iB10#..WIGO201401-202003

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main85373-BZ090iB10#..AGYA201212-202003

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main82711-BZ100iB10#..AGYA¥60201212-202003

9004A10147

main9004A-10147

9004A11190

main9004A-11190¥120

14 parts on this diagram · 4 diagrams in section
