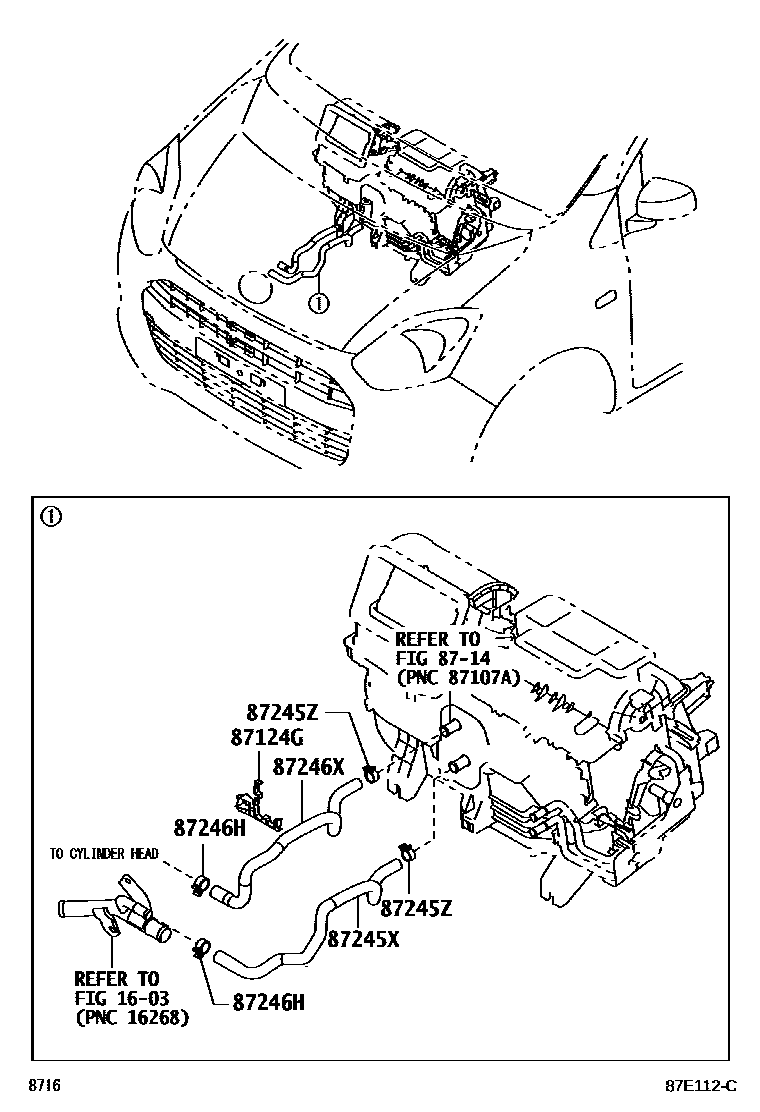

Toyota AGYA/WIGO — HEATING & AIR CONDITIONING - WATER PIPING

0001 1W/HEATER 0002 1W/HEATER 0003 1W/HEATER 0004 1W/HEATER 0005 1W/HEATER 0006 1W/HEATER 0007 1W/HEATER 0008 1W/HEATER

1603

87124CLAMP, HEATER

main96136-42101iB100..WIGO¥240201411-201704

87124GCLAMP, HEATER HOSE, NO.2

main87124-BZ100iB100..WIGO201401-201704

8714

87245XHOSE, HEATER WATER

main87242-BZ010iB100..WIGO201411-201704

main87245-B6020iB100..WIGO¥3,300201403-201411

main87245-BZ170iB100..WIGO201401-201403

sub87245-B6020¥3,300

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96136-42101iB100..WIGO¥240201401-201704

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main96136-42501iB100..WIGO¥200201401-201606

main96137-52501iB100..WIGO¥240201607-201704

87246XHOSE, HEATER WATER

main87243-BZ010iB100..WIGO201411-201704

main87246-B6010iB100..WIGO¥3,300201403-201411

main87246-BZ110iB100..WIGO201401-201403

sub87246-B6010¥3,300
