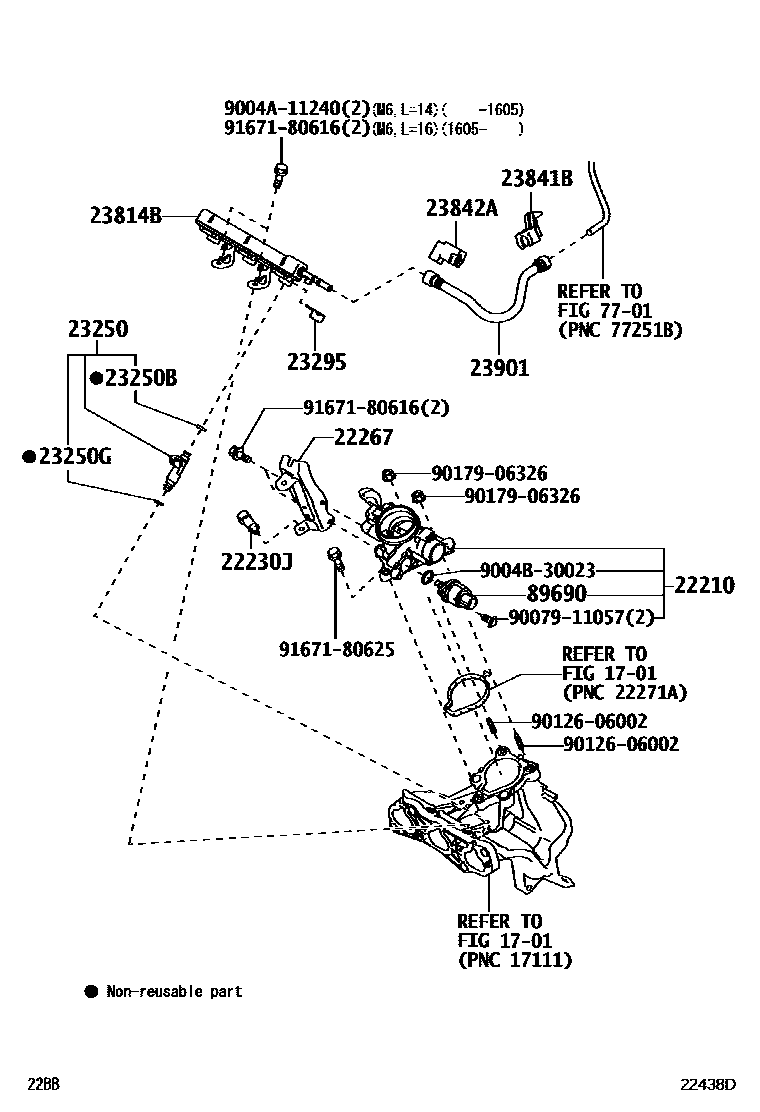

Toyota AGYA/WIGO — FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

1701

22210BODY ASSY, THROTTLE

main22210-B6010i1KRDE..B100201212-201704

22230JCLAMP

main90044-64803i1KRDE..B100¥230201212-201704

22267BRACKET, THROTTLE BODY

main22208-BZ010i1KRDE..B100201212-201311

main22208-BZ011i1KRDE..B100201312-201704

23250INJECTOR ASSY, FUEL

main23209-09340i3NRVE..B101201704-202003

main23209-BZ040i1KRDE..B100201212-201704

main23209-BZ060i1KRVE..B100201704-202003

23250BRING, O(FOR FUEL INJECTOR)

main90043-01353i1KRVE..B100201212-202003

main90301-07042i3NRVE..B101¥140201704-202003

23250GRING, O, NO.2(FOR FUEL INJECTOR)

main23585-B2040i1KRVE..B100¥210201212-201812

sub90043-01345¥160

main90043-01345i1KRVE..B100¥160201901-202003

23295HOLDER, INJECTOR, NO.1

main23295-BZ010i1KRDE..B100201212-202003

23814BPIPE, FUEL DELIVERY

main23814-0Y010i3NRVE..B101201704-202003

main23814-B6010i1KRDE..B100¥6,700201212-201704

main23814-B6020i1KRVE..B100¥6,100201704-202003

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-B1010i1KRDE..B100¥280201212-201510

main23841-BZ020i1KRVE..B100201511-202003

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-BZ010i1KRVE..B100201212-202003

23901TUBE SUB-ASSY, FUEL

main23901-BZ010i1KRDE..B100201212-201704

main23901-BZ070i3NRVE..B101201704-201711

sub23901-BZ110

main23901-BZ100i1KRVE..B100201704-202003

main23901-BZ110i3NRVE..B101201712-202003

7701

89690ACTUATOR ASSY, IDLE SPEED CONTROL

main9004B-82002iB100¥21,300201212-201704

9004A11240

main9004A-11240

9004B30023

main9004B-30023¥110

9007911057

main90079-11057¥110

9012606002

main90126-06002¥150

9017906326

main90179-06326¥60

9167180616

main91671-80616¥60

9167180625

main91671-80625¥70

21 parts on this diagram · 4 diagrams in section
