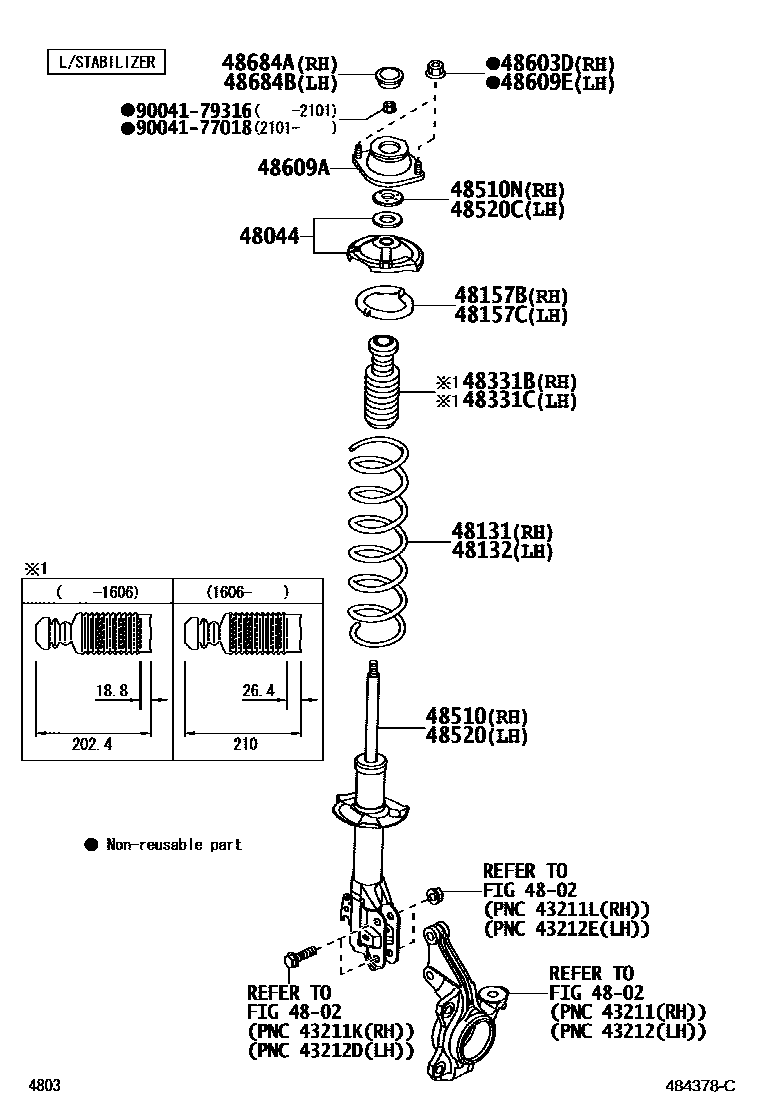

Toyota AGYA/WIGO — FRONT SPRING & SHOCK ABSORBER

0001 1L/STABILIZER 0002 1W/STABILIZER 0003 1W/STABILIZER

4802

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-BZ090iB100..LO,MID;B100..HI..WIGO201212-201704

STABILIZER-WITH FR STABILIZER

main48044-BZ090iB10#201704-202003

48131SPRING, FRONT COIL, RH

main48131-BZ540iB100..MTM..(LO,MID)201212-201704

main48131-BZ560iB100..HI..AGYA201212-201704

STABILIZER-WITH FR STABILIZER

main48131-BZ830iB100201704-202003

main48131-BZ840iB101201704-202003

48132SPRING, FRONT COIL, LH

main48131-BZ540iB100..MTM..(LO,MID)201212-201704

main48131-BZ560iB100..HI..AGYA201212-201704

STABILIZER-WITH FR STABILIZER

main48131-BZ830iB100201704-202003

main48131-BZ840iB101201704-202003

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-BZ070iB10#201704-202003

main48157-BZ070iB100..LO,MID;B100..HI..WIGO201212-201704

STABILIZER-WITH FR STABILIZER

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-BZ070iB10#201704-202003

main48157-BZ070iB100..LO,MID;B100..HI..WIGO201212-201704

STABILIZER-WITH FR STABILIZER

48331BBUMPER, FRONT SPRING, RH

main48331-BZ130iB100..LO,MID;B100..HI..WIGO201212-201606

STABILIZER-WITH FR STABILIZER

sub48331-BZ150

main48331-BZ150iB10#201704-202003

main48331-BZ150iB100..LO,MID;B100..HI..WIGO201606-201704

STABILIZER-WITH FR STABILIZER

48331CBUMPER, FRONT SPRING, LH

main48331-BZ130iB100..HI..AGYA201212-201606

STABILIZER-WITH FR STABILIZER

sub48331-BZ150

main48331-BZ150iB10#201704-202003

main48331-BZ150iB100..LO,MID;B100..HI..WIGO201606-201704

STABILIZER-WITH FR STABILIZER

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-BZ710iB100..LO,MID201212-201704

MARK 48510-BZ710

main48510-BZ860iB100..HI..WIGO201401-201704

MARK 48510-BZ860

main48510-BZC80iB100201704-202003

MARK 48510-BZC80

main48510-BZC90iB101201704-202003

MARK 48510-BZC90

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90043-85174iB100..HI..AGYA¥600201212-201704

STABILIZER-WITH FR STABILIZER

main90043-85174iB10#¥600201704-202003

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-BZ710iB100..LO,MID201212-201704

MARK 48510-BZ710

main48520-BZ820iB100201704-202003

MARK 48520-BZ820

main48520-BZ830iB101201704-202003

MARK 48520-BZ830

main48520-BZ860iB100..HI..WIGO201401-201704

MARK 48520-BZ860

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90043-85174iB100..LO,MID;B100..HI..WIGO¥600201212-201704

STABILIZER-WITH FR STABILIZER

main90043-85174iB10#¥600201704-202003

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90041-79303iB100¥160201212-201509

main9004A-17256iB10#¥100201510-202003

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-BZ090iB100..LO,MID;B100..HI..WIGO201212-201704

STABILIZER-WITH FR STABILIZER

sub48609-BZ120

main48609-BZ120iB10#201704-202003

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90041-79303iB100¥160201212-201509

main9004A-17256iB100¥100201510-202003

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-BZ050iB10#201704-202011

sub48684-BZ120

main48684-BZ050iB100..LO,MID;B100..HI..WIGO201212-201704

STABILIZER-WITH FR STABILIZER

sub48684-BZ120

main48684-BZ120iB10#202012

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-BZ050iB10#201704-202011

sub48684-BZ120

main48684-BZ050iB100..LO,MID;B100..HI..WIGO201212-201704

STABILIZER-WITH FR STABILIZER

sub48684-BZ120

main48684-BZ120iB10#202012

9004177018

main90041-77018¥160

9004179316

main90041-79316¥170

19 parts on this diagram · 3 diagrams in section
