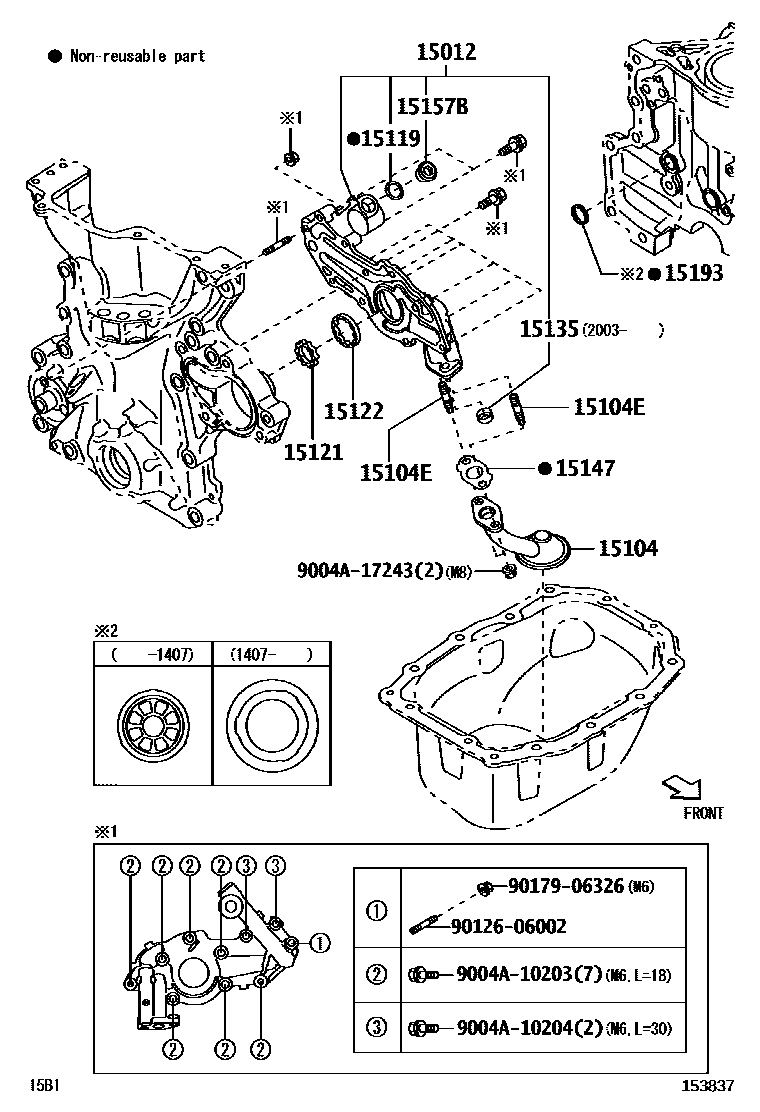

Toyota AGYA/WIGO — ENGINE OIL PUMP

0001 1 0002 1

15012COVER SUB-ASSY, OIL PUMP

main15012-BZ010i1KRVE..B100201704-202003

main15012-BZ010i1KRDE..B100201212-201704

main15012-BZ010i1KRVE..B100202003

15104STRAINER SUB-ASSY, OIL

main15104-0Y010i3NRVE..B101201704-202003

main15104-0Y010i3NRVE..B101202003

main15104-BZ010i1KRDE..B100..ATM201212-201704

main15104-BZ020i1KRVE..B100201704-202003

main15104-BZ020i1KRVE..B100202003

main15104-BZ020i1KRDE..B100..MTM201212-201704

15104EBOLT, STUD(FOR OIL STRAINER)

main90041-16487i1KRVE..B100¥190201704-202003

main90041-16487i1KRVE..B100¥190202003

main90041-16487i1KRDE..B100¥190201212-201704

15119GASKET, OIL PUMP COVER

main15119-B6010i1KRVE..B100¥160201704-202003

main15119-B6010i1KRVE..B100¥160202003

main15119-B6010i1KRDE..B100¥160201212-201704

15121GEAR, OIL PUMP DRIVE

main15121-BZ020i1KRDE..B100201212-201605

main15121-BZ030i1KRVE..B100202003

main15121-BZ030i1KRVE..B100201704-202003

main15121-BZ030i1KRDE..B100201605-201704

15122GEAR, OIL PUMP DRIVEN

main15122-BZ020i1KRDE..B100201212-201605

main15122-BZ030i1KRVE..B100202003

main15122-BZ030i1KRVE..B100201704-202003

main15122-BZ030i1KRDE..B100201605-201704

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-87701i1KRVE..B100¥170202003

15147GASKET, OIL STRAINER

main15147-BZ020i1KRDE..B100201212-201704

main15147-BZ020i1KRVE..B100201704-202003

main15147-BZ020i1KRVE..B100202003

15157BPLUG, W/HEAD STRAIGHT SCREW

main90341-16023i1KRVE..B100¥190202003

main90341-16023i1KRDE..B100¥190201212-201704

main90341-16023i1KRVE..B100¥190201704-202003

15193GASKET, OIL PUMP

main15193-BZ010i1KRDE..B100201212-201407

sub15193-BZ011

main15193-BZ011i1KRVE..B100201704-202003

main15193-BZ011i1KRVE..B100202003

main15193-BZ011i1KRDE..B100201407-201704

9004A10203

main9004A-10203

9004A10204

main9004A-10204

9004A17243

main9004A-17243

9012606002

main90126-06002¥150

9017906326

main90179-06326¥60

15 parts on this diagram · 2 diagrams in section
