Toyota AGYA/WIGO — ELECTRONIC FUEL INJECTION SYSTEM

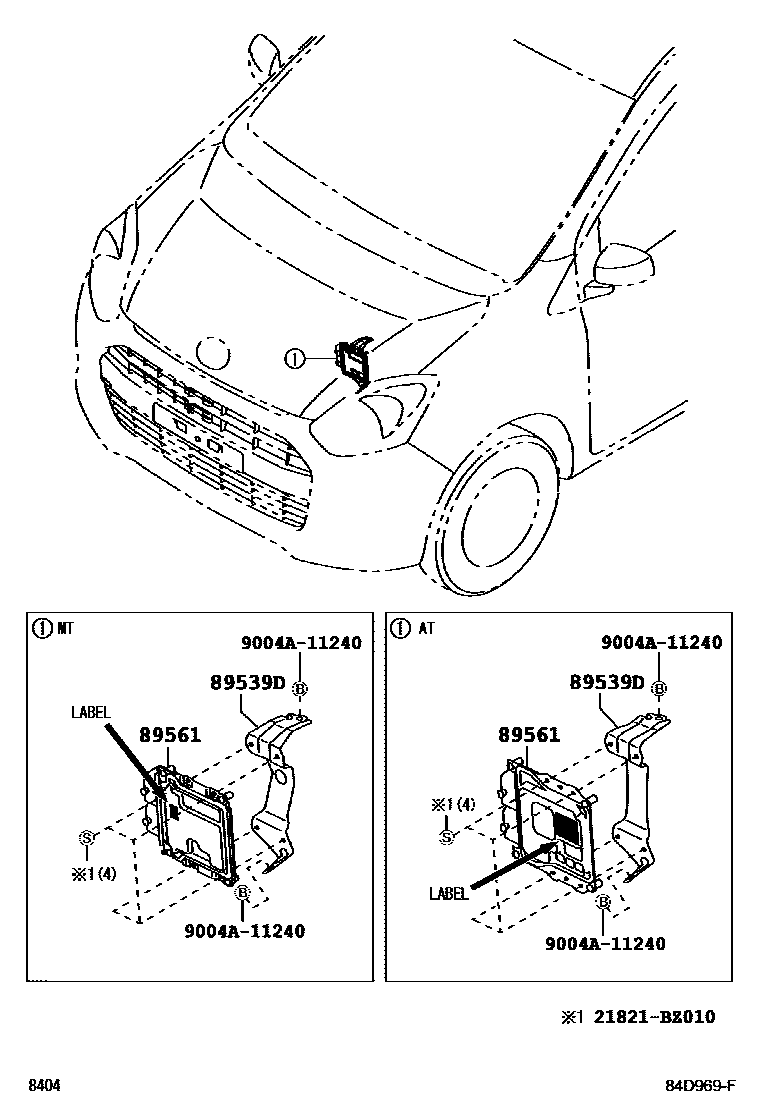

Parts diagram
89539DBRACKET, COMPUTER
main89539-BZ160i201212-201704
EXH.EMISSION CONTROL-EURO2&AIR CONDITIONER-D-OPT KIT
main89539-BZ160i201212-201704
AIR CONDITIONER-D-OPT KIT
main89539-BZ370i201212-201704
89561COMPUTER, FUEL INJECTION
main89560-BY610i202003
BOSCH,W/PART NUMBER LABEL
main89560-BY630i202003
BOSCH,W/PART NUMBER LABEL
main89560-BY650i202003
BOSCH,W/PART NUMBER LABEL
main89560-BY680i202003-202204
DENSO,TRD&ABS,W/PART NUMBER LABEL
main89560-BY680i202003-202204
DENSO,W/PART NUMBER LABEL
main89560-BY681i202204
DENSO,W/PART NUMBER LABEL
main89560-BY681i202204
DENSO,TRD&ABS,W/PART NUMBER LABEL
main89560-BY690i202003-202204
DENSO,TRD&ABS,W/PART NUMBER LABEL
main89560-BY690i202003-202204
DENSO,W/PART NUMBER LABEL
main89560-BY691i202204
DENSO,W/PART NUMBER LABEL
main89560-BY691i202204
DENSO,TRD&ABS,W/PART NUMBER LABEL
main89560-BZB40i201401-201407
LABEL=M4
sub89560-BZU20
main89560-BZB41i201407-201501
LABEL=MB
sub89560-BZU30
main89560-BZB42i201501-201512
LABEL=ME
sub89560-BZU40
main89560-BZB43i201512-201603
LABEL=MJ
sub89560-BZB44
main89560-BZB44i201604-201703
LABEL=MM
sub89560-BZB45
main89560-BZB50i201401-201407
LABEL=M5
sub89560-BZU50
main89560-BZB51i201407-201501
LABEL=MC
sub89560-BZU60
main89560-BZB52i201501-201512
LABEL=MF
sub89560-BZU70
main89560-BZB53i201512-201603
LABEL=MK
sub89560-BZB54
main89560-BZB54i201604-201703
LABEL=MN
sub89560-BZB55
main89560-BZE20i201212-201407
LABEL=M6
main89560-BZE20i201212-201407
EXH.EMISSION CONTROL-EURO2&AIR CONDITIONER-D-OPT KIT,LABEL=M6
main89560-BZE20i201212-201407
AIR CONDITIONER-D-OPT KIT,LABEL=M6
main89560-BZE21i201407-201704
W/PART NUMBER LABEL
main89560-BZE21i201407-201704
AIR CONDITIONER-D-OPT KIT,W/PART NUMBER LABEL
main89560-BZE21i201407-201704
EXH.EMISSION CONTROL-EURO2&AIR CONDITIONER-D-OPT KIT,W/PART NUMBER LABEL
main89560-BZE30i201212-201407
LABEL=A3
main89560-BZE31i201407-201704
W/PART NUMBER LABEL
sub89560-BZE32
main89560-BZG00i201704-201810
W/PART NUMBER LABEL
main89560-BZG10i201704-201810
W/PART NUMBER LABEL
main89560-BZG20i201704-201810
W/PART NUMBER LABEL
main89560-BZG30i201704-201709
W/PART NUMBER LABEL
sub89560-BZG31
main89560-BZG31i201710-201810
W/PART NUMBER LABEL
main89560-BZG40i201704-201810
W/PART NUMBER LABEL
main89560-BZG50i202003
BOSCH,W/PART NUMBER LABEL
main89560-BZG50i201704-202003
W/PART NUMBER LABEL
main89560-BZG50i202003
BOSCH,GENERAL EXP(W/O HEATER),W/PART NUMBER LABEL
main89560-BZG60i201704-201808
W/PART NUMBER LABEL
sub89560-BZG61
main89560-BZG61i201809-202003
W/PART NUMBER LABEL
main89560-BZG61i202003
GENERAL EXP(W/O HEATER),W/PART NUMBER LABEL
main89560-BZG71i201712-202003
W/PART NUMBER LABEL
main89560-BZG71i202003-202204
DENSO,W/PART NUMBER LABEL
main89560-BZG72i202204
DENSO,W/PART NUMBER LABEL
main89560-BZG80i201712-202003
W/PART NUMBER LABEL
main89560-BZG80i202003-202204
DENSO,W/PART NUMBER LABEL
main89560-BZG81i202204
DENSO,W/PART NUMBER LABEL
main89560-BZJ90i201401-201407
LABEL=AE
main89560-BZJ91i201407-201512
LABEL=AH
main89560-BZJ92i201512-201704
LABEL=AL
main89560-BZT60i201704-202003
W/PART NUMBER LABEL
main89560-BZT60i202003
BOSCH,W/PART NUMBER LABEL
21821BZ010SCREW, 2ND THROTTLE VALVE SET
main21821-BZ010
9004A11240
main9004A-11240

4 parts on this diagram · 3 diagrams in section
