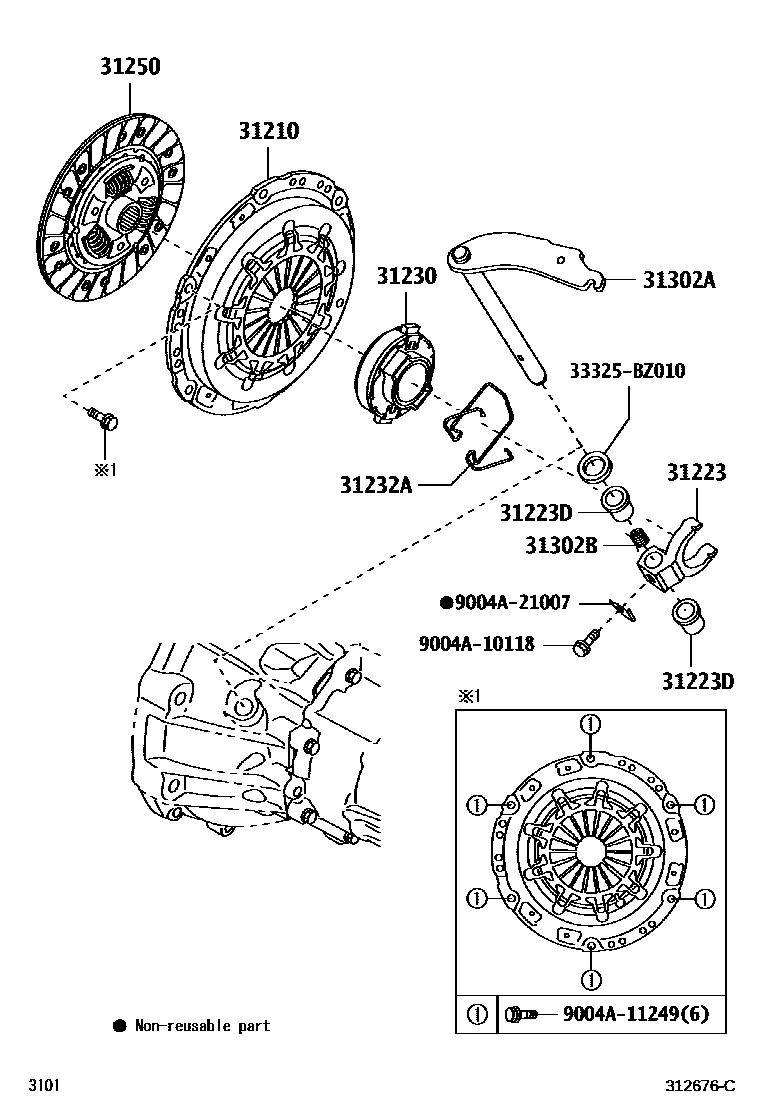

Toyota AGYA/WIGO — CLUTCH & RELEASE FORK

0001 1 0002 1

31210COVER ASSY, CLUTCH

main31210-BZ030iB100..MTM201212-201405

main31210-BZ031iB100..MTM201708-201801

LUK

sub31210-B9000

main31210-BZ031iB100..MTM201406-201704

sub31210-B9000

main31210-BZ180iB101..MTM201704-202003

main31210-BZ210iB100..MTM201708-202003

EXEDY

main31210-BZ210iB100..MTM201704-201708

31223YOKE, CLUTCH RELEASE LEVER

main31223-BZ040iB100..MTM201212-201309

sub31223-BZ041

main31223-BZ041iB10#..MTM201310-202003

main31223-BZ041iB10#..MTM202003

LOCAL SOURCED PARTS

31223DBUSH(FOR CLUTCH RELEASE LEVER YOKE)

main9004A-38072iB10#..MTM201212-202003

31230BEARING ASSY, CLUTCH RELEASE

main31230-BZ040iB100..MTM201212-202003

31232ACLIP, RELEASE BEARING HUB

main31232-BZ070iB100..MTM201212-202003

31250DISC ASSY, CLUTCH

main31250-BZ040iB100..MTM201212-201405

main31250-BZ041iB100..MTM201708-201801

LUK

sub31210-B9000

main31250-BZ041iB100..MTM201406-201704

sub31210-B9000

main31250-BZ270iB101..MTM201708-202003

EXEDY

main31250-BZ270iB100..MTM201704-202003

31302ALEVER SUB-ASSY, CLUTCH RELEASE FORK

main31302-BZ050iB10#..MTM201212-202003

31302BSPRING, TORSION(FOR CLUTCH RELEASE FORK LEVER)

main9004A-50119iB10#..MTM201212-202003

33325BZ010DFFLECTOR, DUST (FOR MTM OUTPUT SHAFT COMPANION FLANGE)

main33325-BZ010

9004A10118

main9004A-10118

9004A11249

main9004A-11249¥130

9004A21007

main9004A-21007

12 parts on this diagram · 2 diagrams in section
