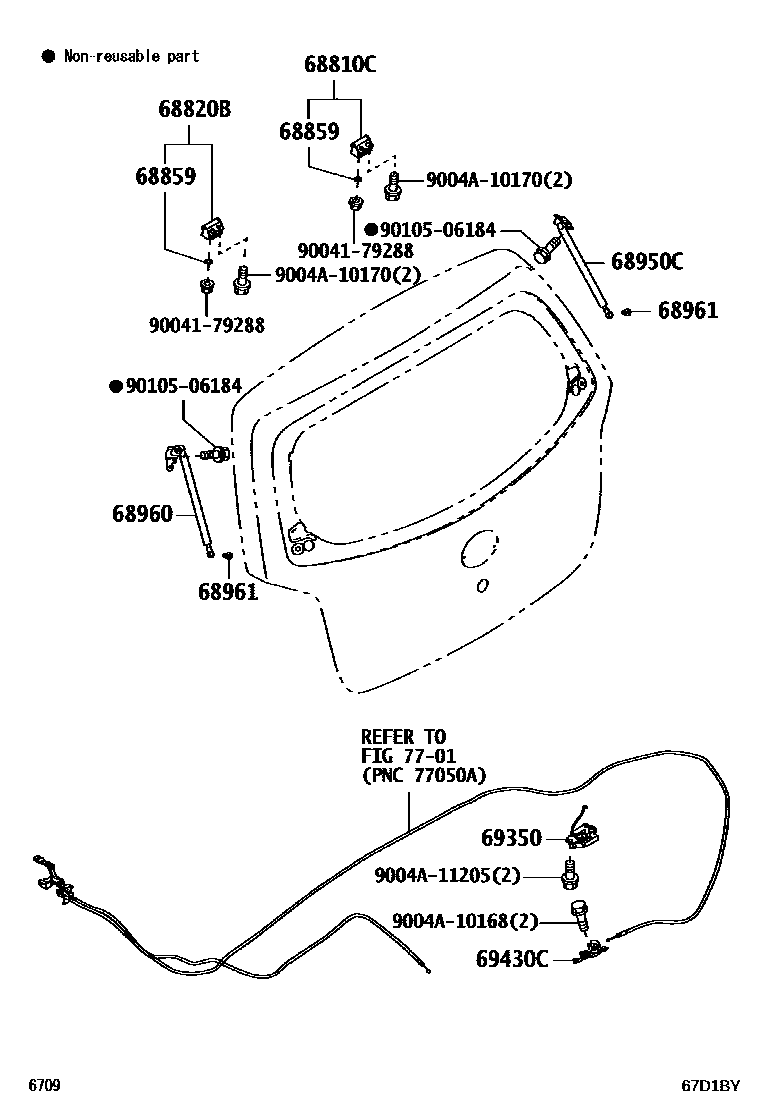

Toyota AGYA/WIGO — BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68801-BZ110iB10#201212-202003

68820BHINGE ASSY, BACK DOOR, LH

main68801-BZ110iB10#201212-202003

68859PACKING, BACK DOOR HINGE

main68859-87201iB10#¥380201212-202003

68950CSTAY ASSY, BACK DOOR, RH

main68950-B6010iB100..MIDS..AGYA¥5,500201212-202003

W/O RR WIPER

main68950-B6020iB10#..HIS;B100..MIDS..WIGO¥5,500201401-202003

W/RR WIPER

68960STAY ASSY, BACK DOOR, LH

main68960-B6010iB100..MIDS..AGYA¥5,500201212-202003

W/O RR WIPER

main68960-B6020iB10#..HIS;B100..MIDS..WIGO¥5,500201401-202003

W/RR WIPER

68961BOLT, BACK DOOR STAY

main68459-87201iB10#¥460201612-202003

main68459-87202iB100¥750201212-201612

69350LOCK ASSY, BACK DOOR

main69350-BZ150iB100..LO201212-201704

W/O POWER DOOR LOCK

main69350-BZ160iB10#201704-202003

main69350-BZ160iB100..HI,MID201212-201704

W/POWER DOOR LOCK

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-BZ060iB10#201212-202003

7701

9004179288

main90041-79288¥220

9004A10168

main9004A-10168

9004A10170

main9004A-10170

9004A11205

main9004A-11205

9010506184

main90105-06184¥70

14 parts on this diagram · 1 diagram in section
